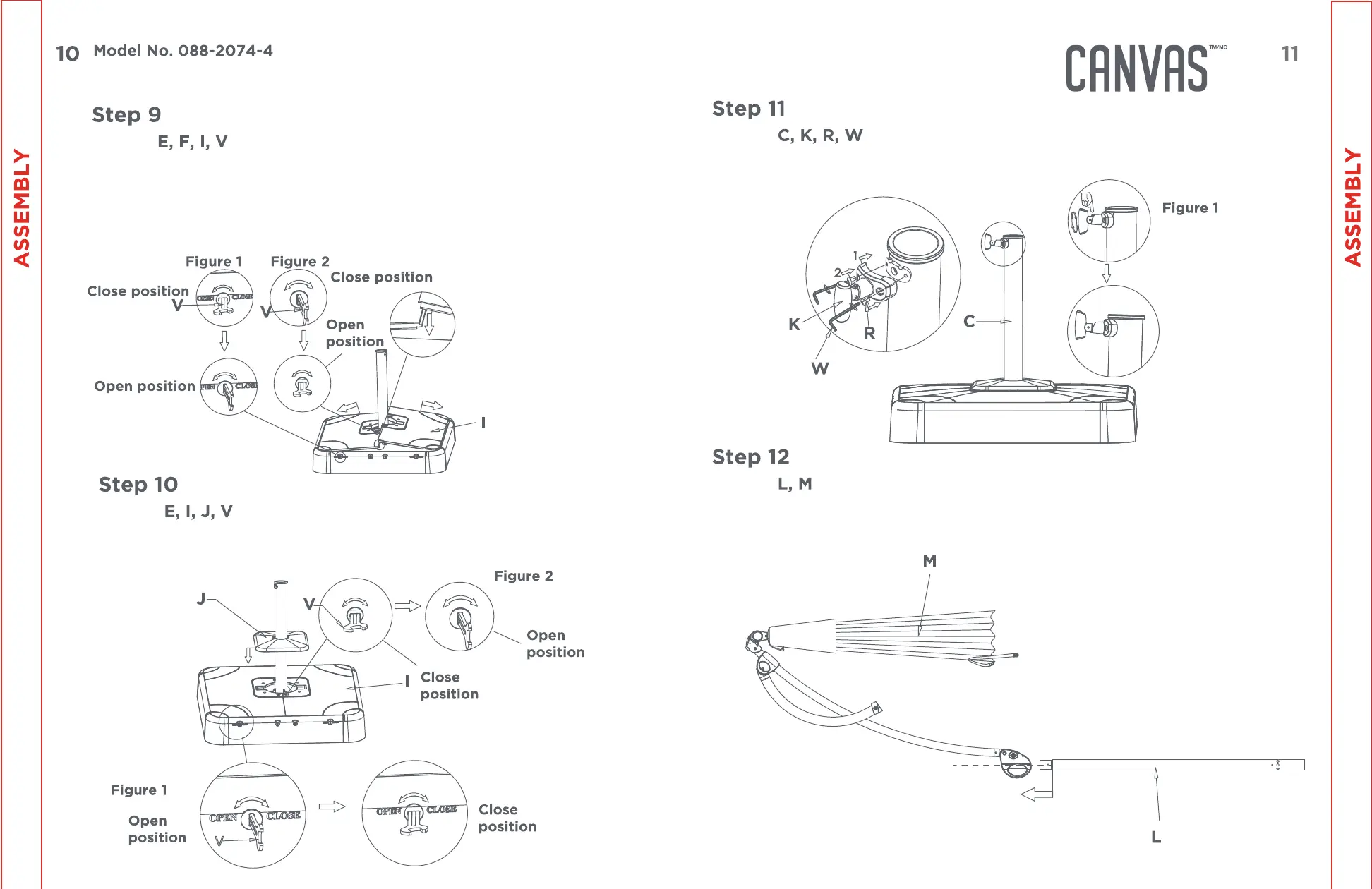

Requires
Ensure the locking mechanism on the lock panel (E) is in the OPEN
position by using the wrench (V) as shown in figure 1.
Ensure the locking mechanism on the lower base cover (I) is in the
OPEN position by using the wrench (V) as shown in figure 2.
Attach the lower base cover (I) to the side panels (F).
Close the lower base cover (I) and ensure they are fully closed.
Requires
Lock the lower base cover (I) and the lock panel (E) by turning the
locking mechanisms to the CLOSE position using
the wrench (V) as shown in figure 1 and figure 2.
Requires
Attach the locking knob (K) to the base tube (C) using the M5x8 bolts (R) and hex
wrench S3 (W). Make sure the locking knob (K) is placed as shown in figure 1
before attaching.
Requires
Insert pole (L) into handle on the umbrella shade (M).
NOTE: Do not
completely tighten.
To Next Page
