12 Instruction manual Extraction Motors Please keep this instruction manual for future reference
INSTALLATION:

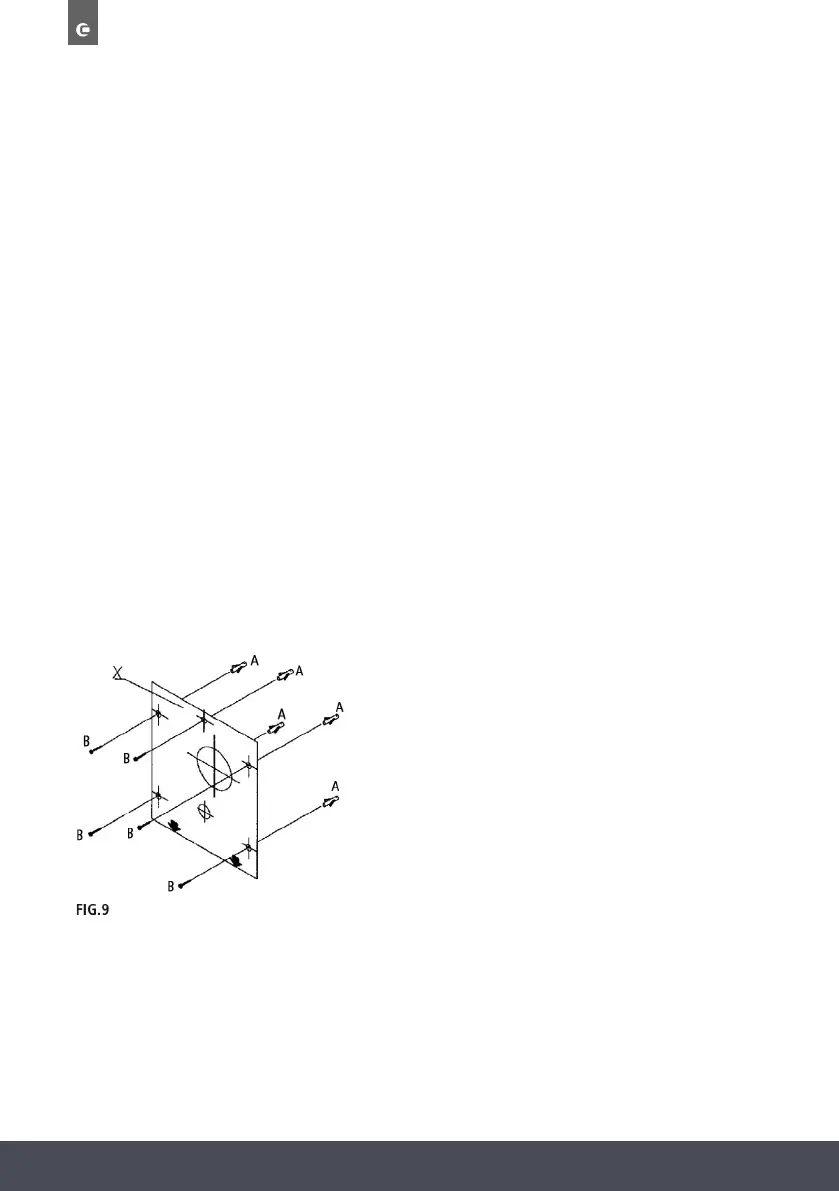

This product is to be installed by a qualified technician. Using the appropriate drilling jig (Fig.9)
drill all the holes marked on it into the external wall, by paying attention not to damage water
pipes or power lines.
The holes on the wall are to be drilled with an 8mm bit. Insert, step by step, the following parts
in the holes drilled:
› The corresponding plastic dowels supplied (Fig.9A).
› Two ducting channels (not supplied) in the hole of 160mm.
› Plastic ducting of 40mm diameter (not supplied).
Before leaning the appliance against the wall, insert the supply cord in the plastic ducting.
Fix the appliance without the stainless-steel external body, which was previously removed from
the motor block, by matching the holes of the motor block with the holes on the wall.
Tighten with the screws supplied (Fig.9B).
