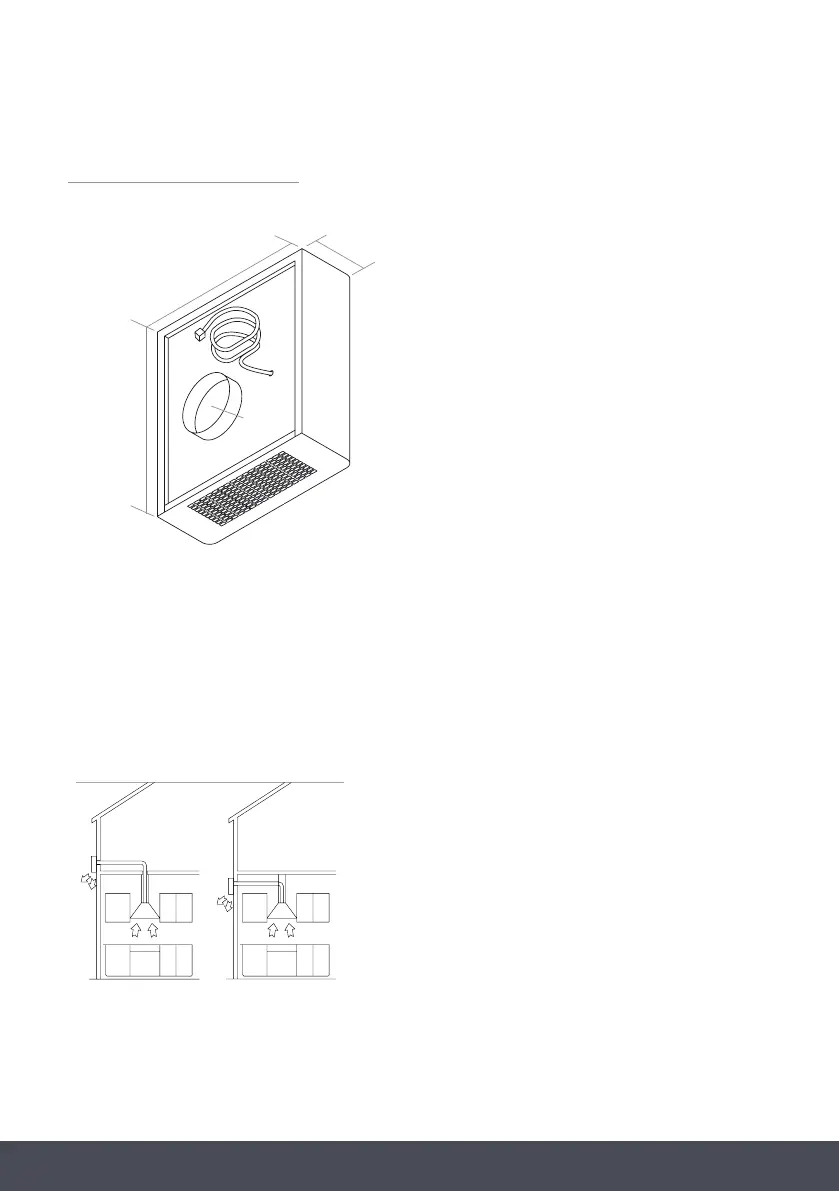

DIMENSIONS
450mm
∅150mm
450mm
159mm
DDMEXT30
This product is designed to efficiently exhaust fumes and odours. It must be installed on the
outside wall of the house and connected to the cooker-hood in the kitchen (Fig.8).
This product is designed to efficiently exhaust fumes and
odours. It must be installed on the outside wall of the house
and connected to the cooker-hood in the kitchen (Fig.8).
INSTALLATION:
This product is to be installed by a qualified technician. Using
the appropriate drilling jig (Fig.9) drill all the holes marked on it
into the external wall, by paying attention not to damage water
pipes or power lines.
The holes on the wall are to be drilled with an 8mm bit. Insert,
step by step, the following parts in the holes drilled:
> The corresponding plastic dowels supplied (Fig.9A).
> Two ducting channels (not supplied) in the hole of
160mm.
> Plastic ducting of 40mm diameter (not supplied).
Before leaning the appliance against the wall, insert the supply
cord in the plastic ducting.
Fix the appliance without the stainless-steel external body,
which was previously removed from the motor block, by
matching the holes of the motor block with the holes on
the wall.
Tighten with the screws supplied (Fig.9B).
DDMEXT30
FIG.8
FIG.9
NOTE:
The Motor must be installed a minimum of 50cm from the floor to avoid back pressures from
the extracted air.
