Please carefully read the installation instruction.
Illustrations of cabinet dimensions and installation position of the dishwasher
Preparations should be made before moving the dishwasher to the installation place.
Choose a place near the sink to facilitate the installation of inlet and drain hoses
(see figure 1).
If dishwasher is installed at the corner of the cabinet, there should be some space
(illustrated in figure 2) when the door is opened.
2
1
Minimum space when
the door is opened
【】Figure2
Cabinet dimensions
【】Fig ure1
Cabinet
Dishwasher
Door of
dishwasher
Minimum space of 50mm
1

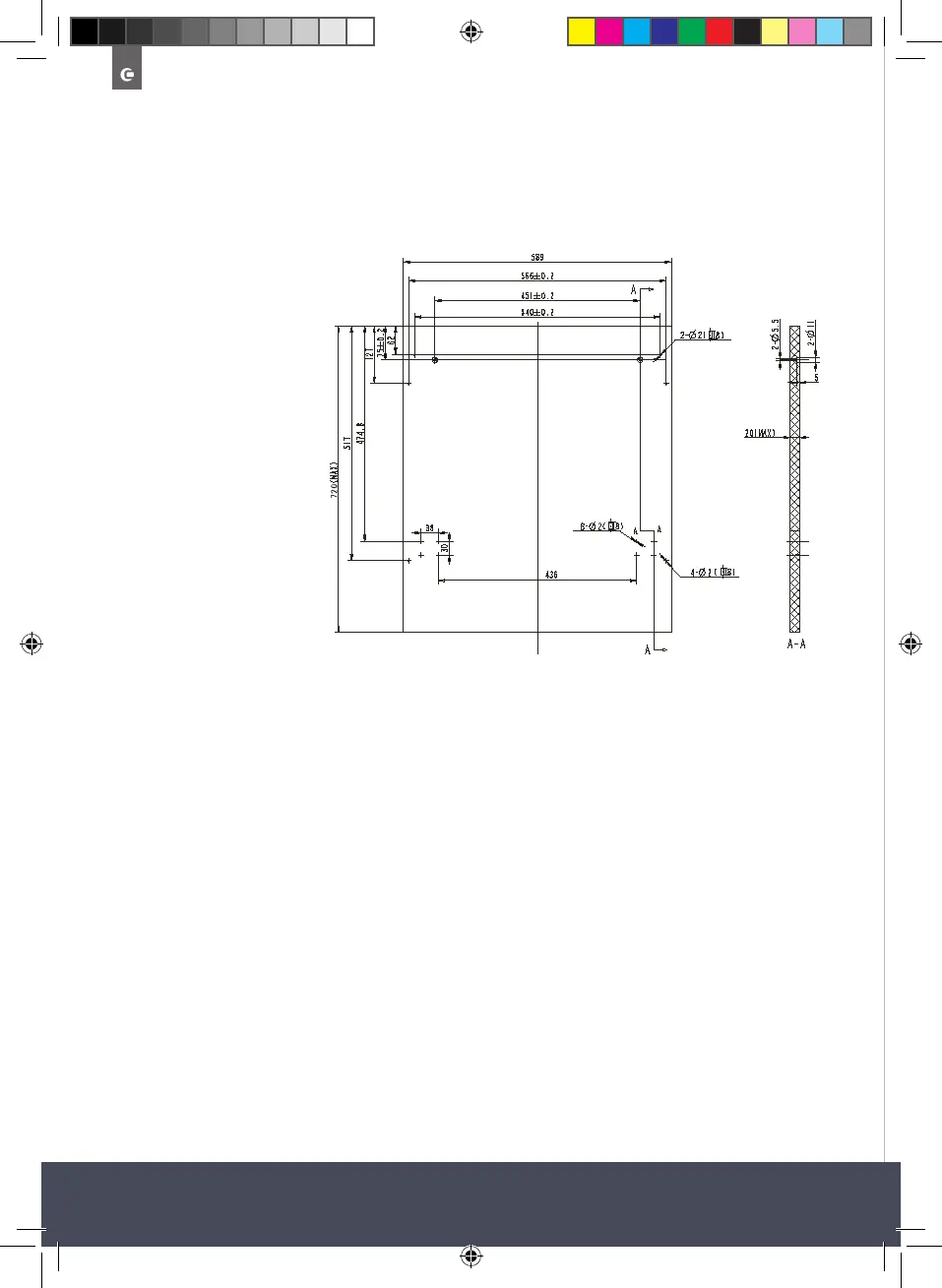

The aesthetic wooden panel could be processed according to the Figure 3.
The aesthetic panel should
be processedin accordance
with the illustrated dimensions
【】Figure3
●
Aesthetic panel's dimensions and installation
Less than 5mm
between the top
of dishwasher and
cabinet and the
outer door aligned
to cabinet.
90 °
90 °
600 mm
820mm
100
580mm
80
Space between cabinet
bottom and floor
Electrical, drain and
water supply line
entrances
(Unit: mm)
19
