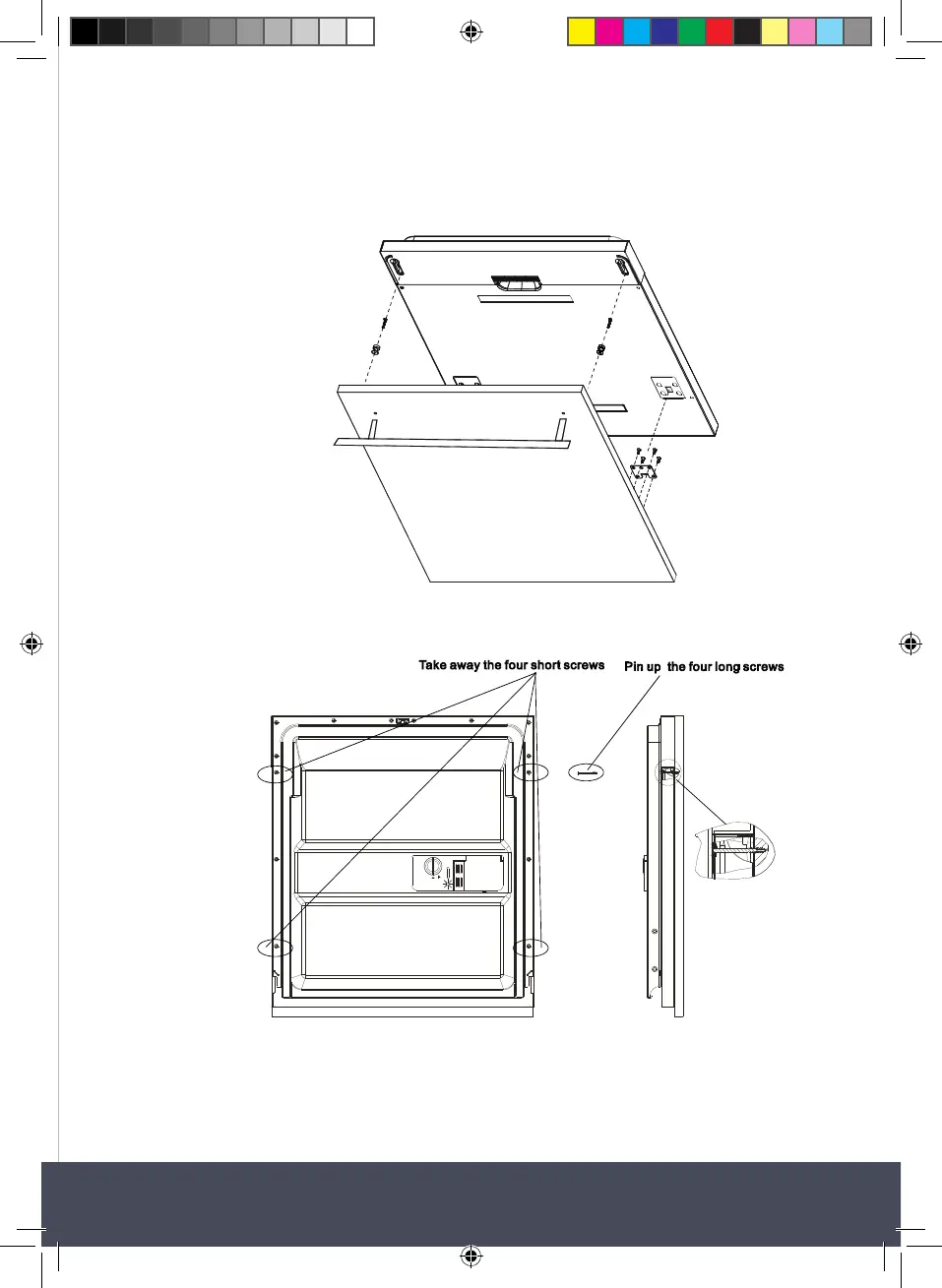

Figure 4
Installation of
aesthetic panel
Install the hook on the aesthetic door panel and put the hook into the slot of the outer door of
dishwasher (see figure 4a). After positioning of the panel, fix the panel onto the outer door by
screws and bolts (See figure 4b) .
Installation of aesthetic panel
【】Figure4a
2 Install the hook on the aesthetic door panel and put the hook into the slot of the outer door of
dishwasher(see figure 4a). After positioning of the panel, fix the panel onto the outer door by screws
and bolts(See figure 4b) .
Installation of aesthetic
door panel
【】Figure4b
. Remove the four
short screws
insert the four long
screws
1
2
20
Installation of aesthetic panel
【】Figure4a
2 Install the hook on the aesthetic door panel and put the hook into the slot of the outer door of
dishwasher(see figure 4a). After positioning of the panel, fix the panel onto the outer door by screws
and bolts(See figure 4b) .
Installation of aesthetic
door panel
【】Figure4b
. Remove the four
short screws
insert the four long
screws
1
2
20
Figure 4
Installation of
aesthetic door panel
1. Remove the
four short
screws
2. Insert the
four long
screws
NOTE:
The furniture door weight
should be 3.5-5kg.
