Instruction manual DI63236
Please keep this instruction manual for future reference
90 °
90 °
580mm
820mm
100
600mm
80
Space between
cabinet bottom and floor
Electrical, drain
and water supply
line entrances
580mm
820mm
100
80
PLEASE CAREFULLY READ THE INSTALLATION INSTRUCTION

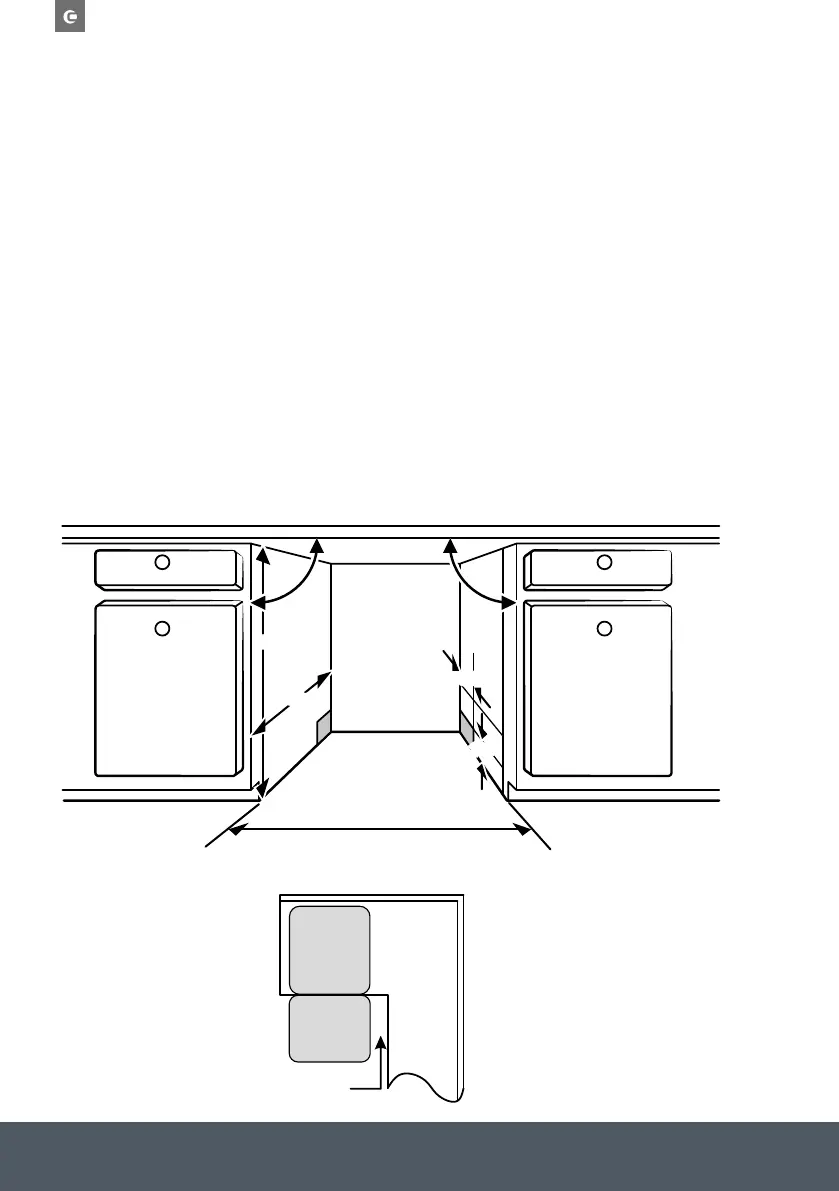

Illustrations of cabinet dimensions and installation position of the dishwasher.
Preparations should be made before moving the dishwasher to the installation place.
1. Choose a place near the sink to facilitate the installation of inlet and drain hoses
(see figure 1).
2. If dishwasher is installed at the corner of the cabinet, there should be some space (illustrated in
figure 2) when the door is opened.
FIGURE 1
Cabinet dimensions Less than 5mm between the top of dishwasher and cabinet and the outer
door aligned to cabinet.
FIGURE 2
Minimum space when
the door is opened.
CabinetDishwasher
Door of
dishwasher
Minimum space
of 50mm
