Capricorn Lab-C03 - Adjusting the Clutch Bell Gap

44
Step 15.3
- Clutch -
BAG 15
C
CC
Ca
aa
ap
pp
pr
rr
ri
ii
ic
cc
co
oo
or
rr
rn
nn
n R
RR
RC
CC
C
Made in Italy
Gap adjust shims
Gap =0
Note:
D
o not install
internal shims
Gap =0,5
Note:
i
nstall internal
shims appropriately

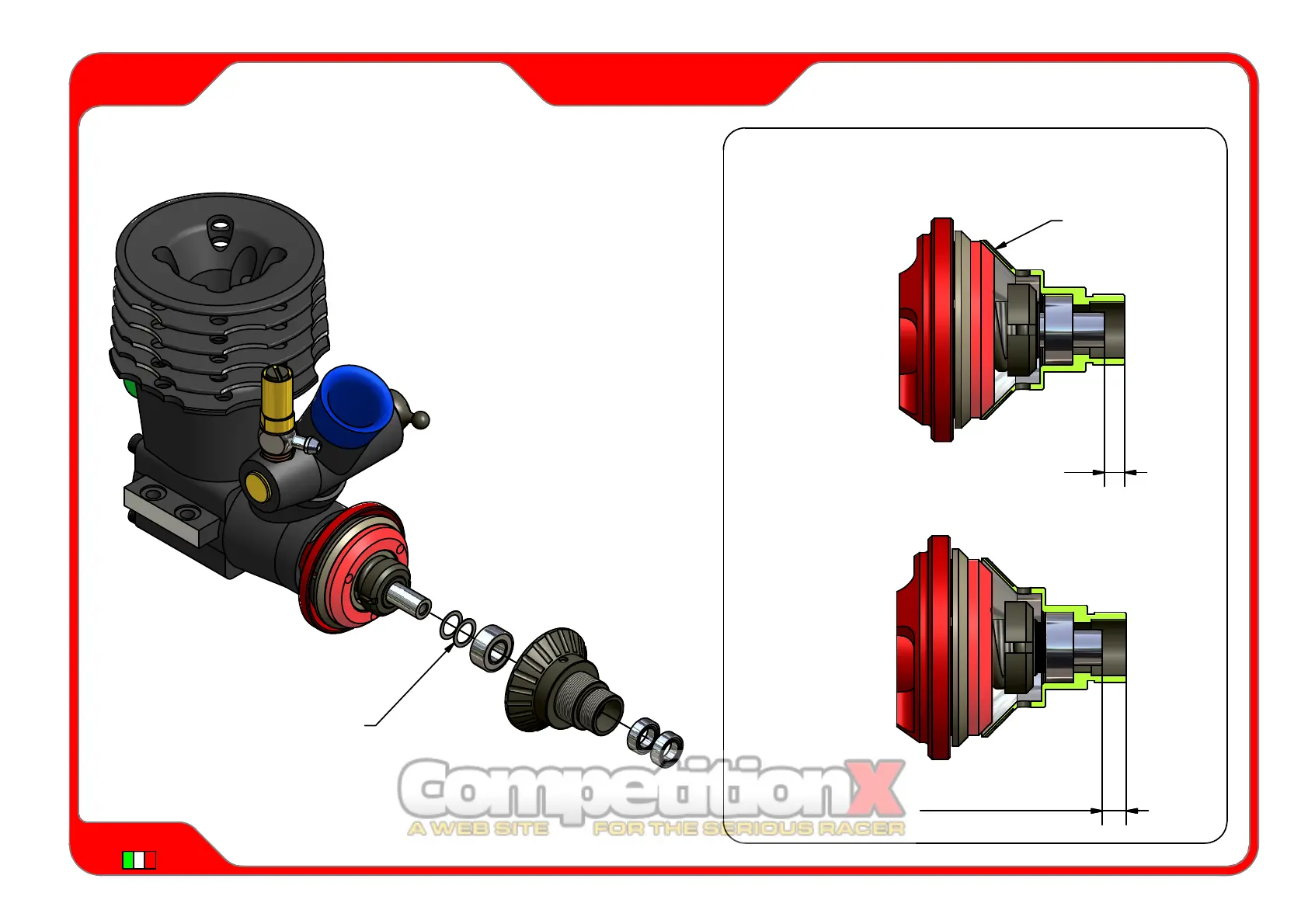

Adjusting the clutch bell gap
A
A + 0,45#0,55
Push the clutch bell on
to the clutch shoe and
misure A distance
