Capt'n Cook DF01 - Diagrams and Parts List; Exploded View Diagrams; Parts List

17

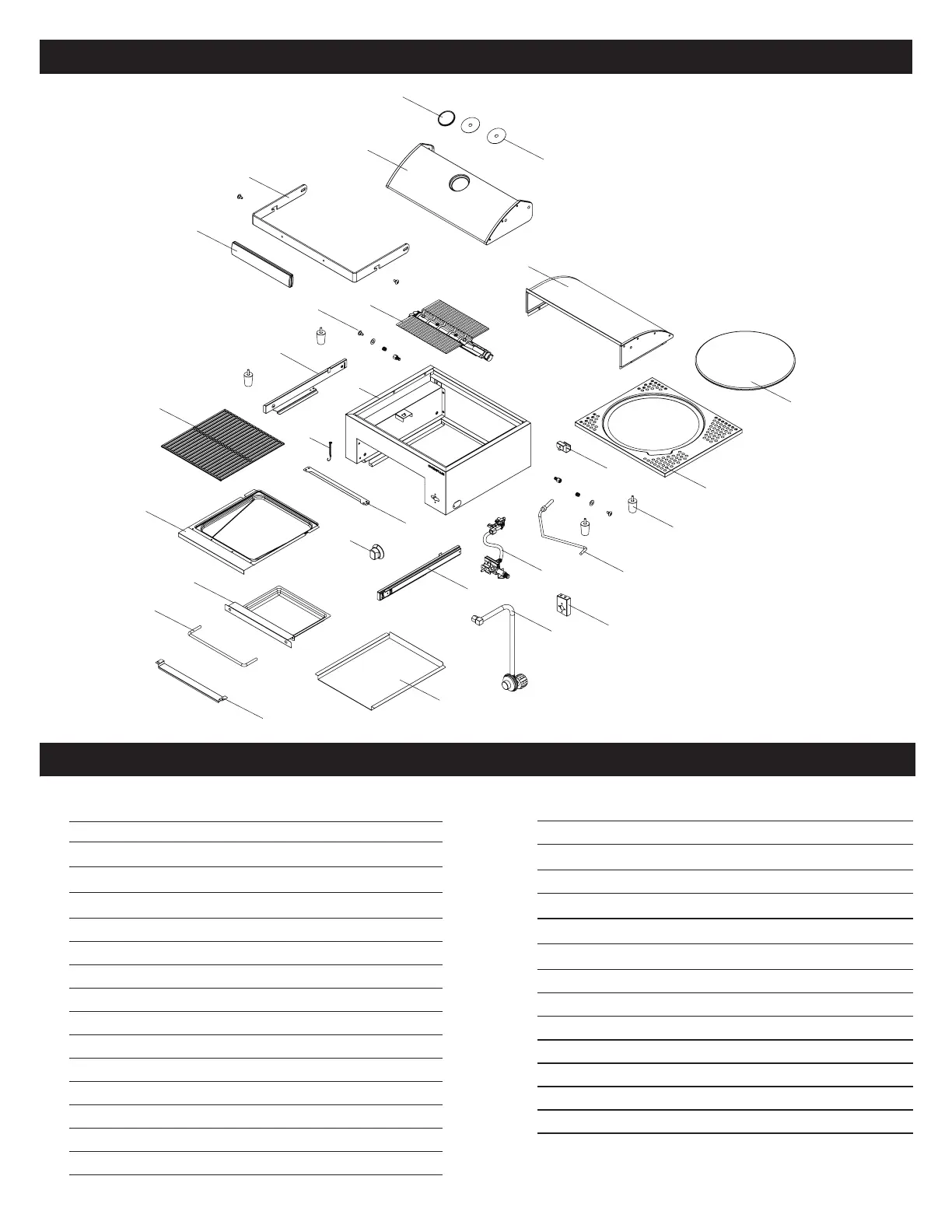

DIAGRAMS
PART LISTS
DESCRIPTION PART NUMBER
QTY
1 Lid Assembly P0015318E4 1
2A Temperature Gauge P00601601C
1
2B Temperature Gauge Tray Set P033230024
1
3A Lid Handle P00212010R
1
3B Lid Handle Hinge P055320054
2
4 Lid Handle Cover P00217003A
1
5 Lid Back Panel P0015319E4
1
6 Grill Body P0073606R4
1
7 Burner P02003061A
1
8 Cooking Grid P01615069H
1
9 Grease Tray P0271795D4
1
10 Slide Connecting Bracket P0290453EI
1
11 Slide Handle P0272020AH
1
12 Grease Receptacle P0270141D4
1
13 Slide Set, Left P055161504
1
DESCRIPTION PART NUMBER
QTY
14 Slide Set, Right P055161514
1
15 Pizza Stone P05817002A
1
16 Pizza Stone Tray P01318006A
1
17A Gas Valve and Manifold Y0060889
1
17B Gas Valve Bracket P033100044
1
18 Electrode with Wire P02614073L
1
19 Regulator with Hose P03647003A
1
20 Control Knob P03401531B
1
21 Grill Leg P05391024P
4
22 Regulator Hose Hook P055141384
1
23 Grill Bottom Panel P06923009M
1
24 Slide Bracket P033190064
1
25 Slide Rail Chain Hook P05522003A
1
10
2B
9
11
12
3B
23
17B
24
25
1
2A
5
3A
4
7
6
8
13
14
1
5
16
17A
18
19
21
20
22
