MBUX NTG7 Video in Motion Module Installation manual
8 Content Rev. 0.1 06/2023 www.carsystems.com.ua
5. Installation process
5.1. Dismantling of interior elements to install the Module

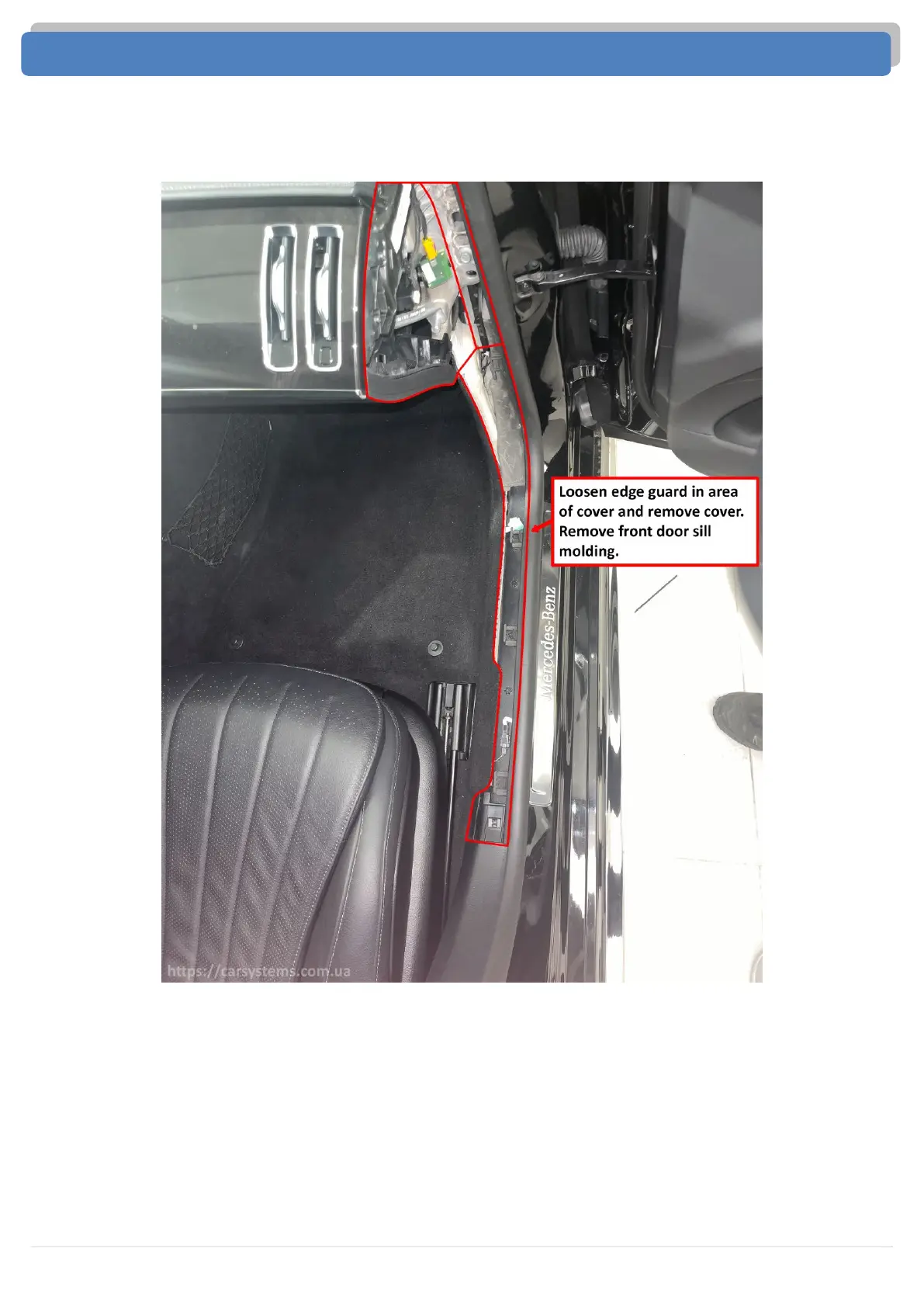

Picture 4
Detach driver's seat and tilt toward rear. Loosen the edge guard in the area of the cover and
remove the cover. Remove front door sill molding.
To remove door sill molding, you need to put the hand to the gray strip on the larger part and
bend it towards you until a short click is heard.
Unclip the cover from under the glove box and bend the floor covering (Picture 5).
