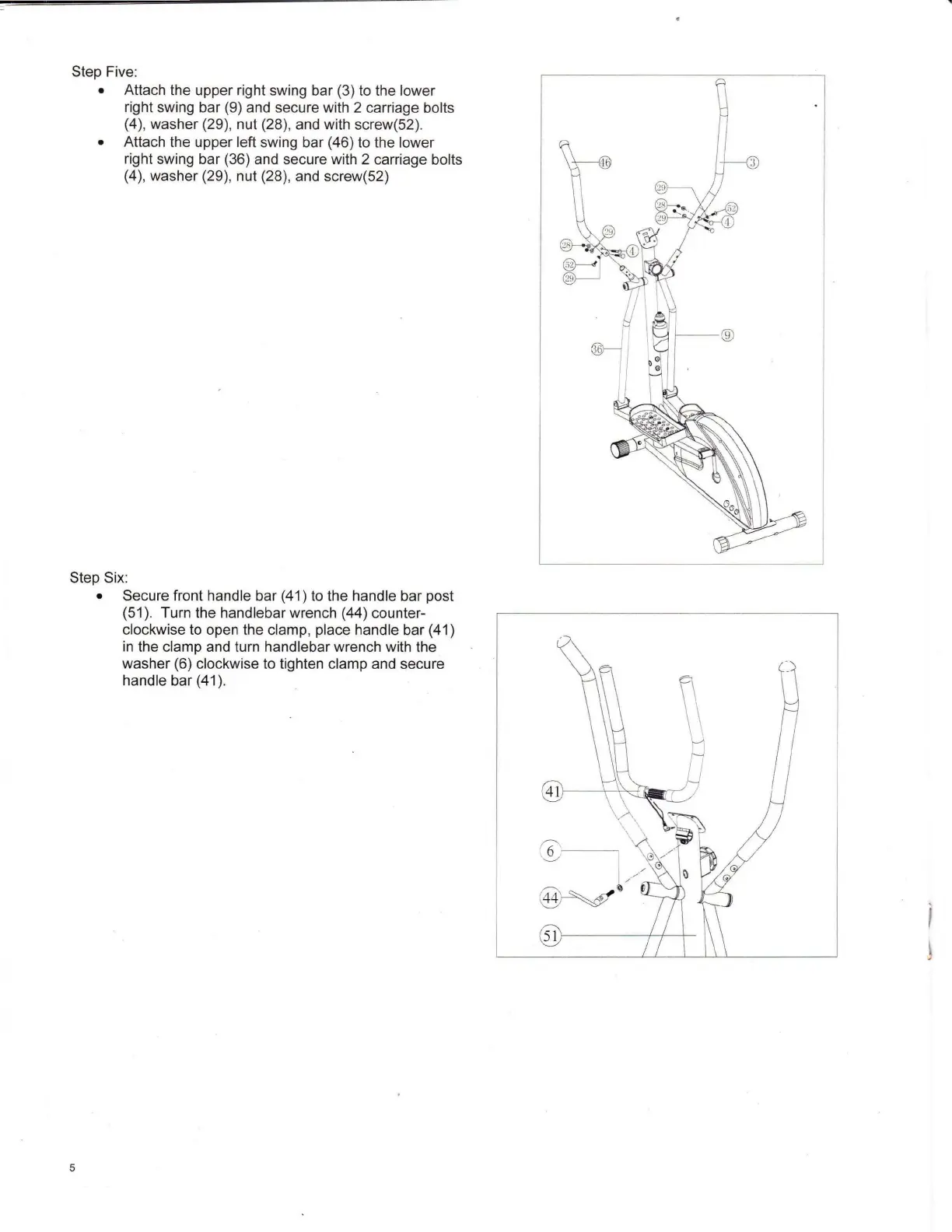

Step Five:
• Attach the upper right swing bar (3)
to
the lower
right swing bar (9) and secure with 2 carriage bolts
(4). washer (29). nut (28). and with screw(52).
• Attach the upper left swing bar (46) to the lower
right swing bar (36) and secure with 2 carriage bolts
(4). washer (29). nut (28). and screw(52)
Step Six:
5
• Secure front handle bar (41)
to
the handle bar post
(51). Turn the
handlebar wrench (44) counter-
clockwise
to
open the clamp. place handle bar (41)
in
the clamp and turn handlebar wrench with the
washer (6) clockwise
to
tighten clamp and secure
handle bar (41).
