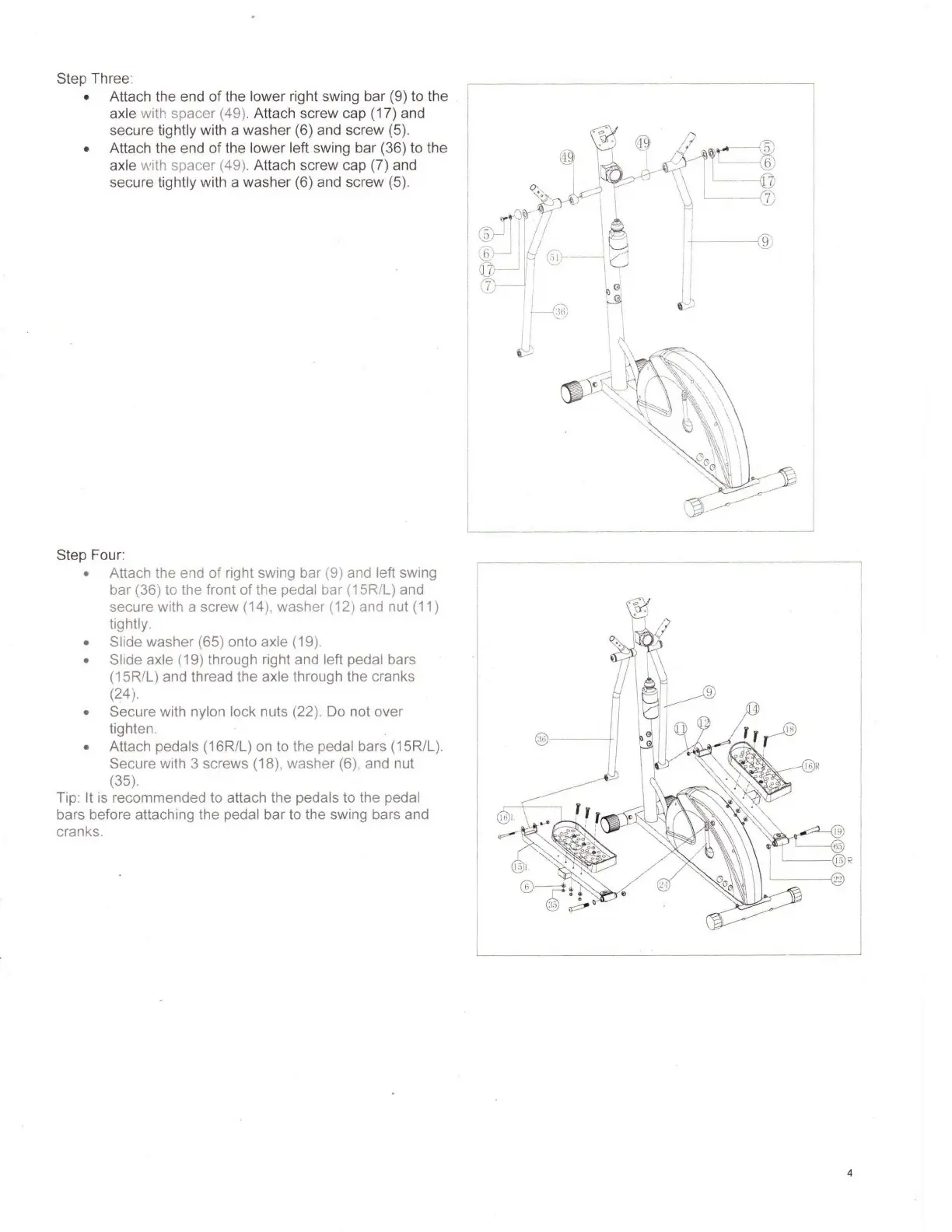

Step Three:
• Attach the end of the lower right swing bar (9) to the
axle with spacer (49). Attach screw cap (17) and
secure tightly with a washer (6) and screw (5
).
• Attach the end of the lower left swing bar (36) to the
axle with spacer (49). Attach screw cap (7) and
secure tightly with a washer (6) and screw (5).
Step Four:
• Attach the end of right swing bar (
9)
and left swing
bar (36) to the front of the
pedal bar (15R/L) and
secure with a screw (14), washer (12) and nut (11)
tightly.
• Slide
washer (65) onto axle (19).
• Slide axle (19) through right and left pedal bars
(15R/L) and thread the
axle through the cranks
(24).
• Secure with nylon lock nuts (22). Do not over
tighten.
• Attach pedals (16R/L) on to the pedal bars (15R/L).
Secure with 3 screws (18), washer (6), and nut
(35).
Tip:
It
is
recommended to attach the pedals to the pedal
bars before attaching the pedal bar to the swing bars and
cranks.
I
L
____
-------'
@---+
4
