CAREFREE OF COLORADO SL WINDOW AWNING
PRODUCT OVERVIEW
The SL Window awning is a manual extend/retract
awning styled to match Carefree's Eclipse Patio
Awning.
Window awnings are available in 6 inch
increments from 3 feet to 7 feet and in 12 inch
increments from 7 feet to 15 feet.
Measure the width of the window, including the
frame. Add 6" for mounting brackets. This is the
minimum required width of the awning. Use the
awning length one increment above the minimum
required width.
Example: Window and frame measures 35”
adding 6" equals 41". The correct awning width
would be 42”.
Available in vinyl and acrylic fabrics.
The optional Carefree Uniguard® metal wrap system is available to protect the awning from inclement
weather conditions.
If Uniguard is installed, the awning requires 2.5" clearance below any projections above the window awning
(i.e. window awning is mounted below a patio awning
).
An XL model is available for windows with 36" or more height.

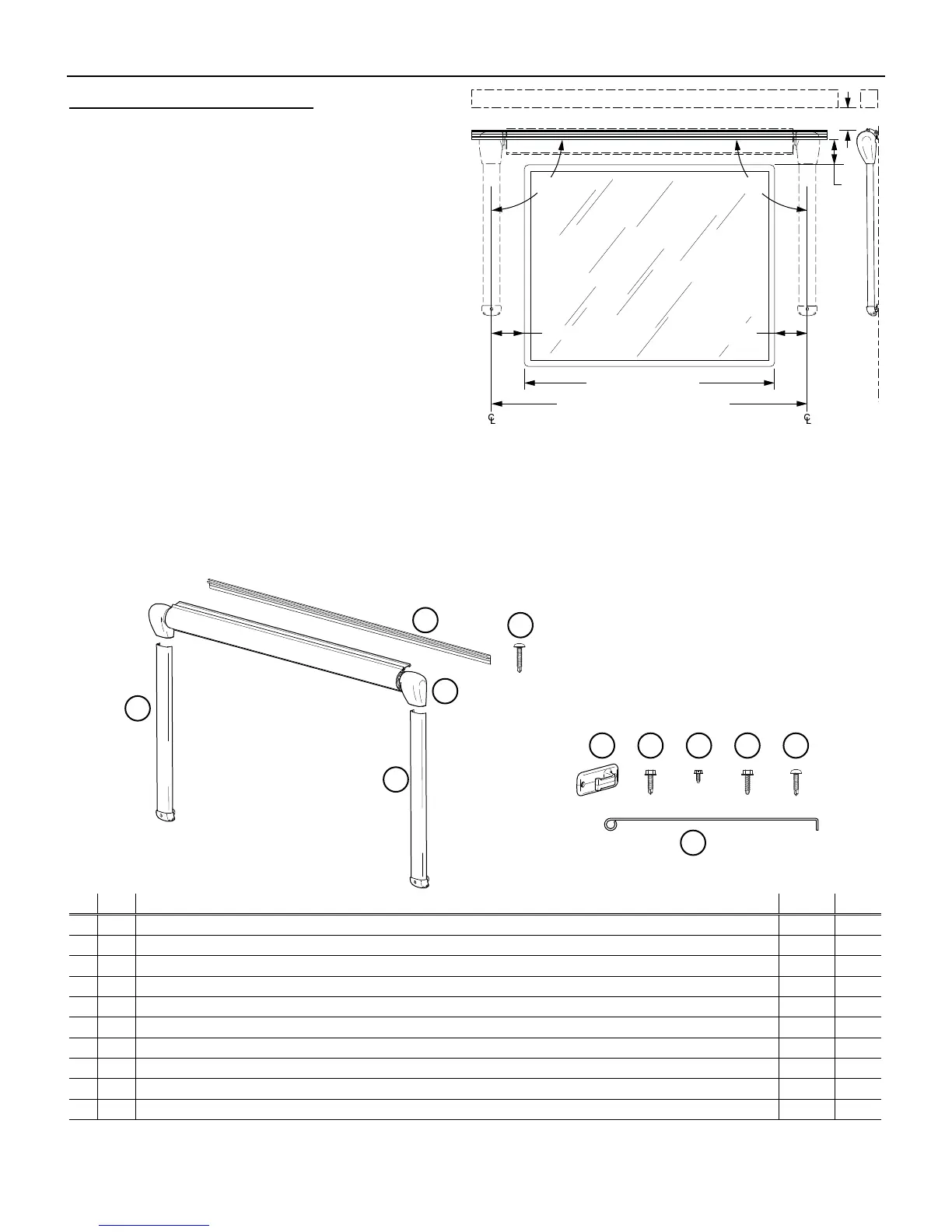

COMPONENT CHECKLIST
I
TEM DESCRIPTION QTY NOTE
1
Awning Rail 1
2
Screw, Truss Head Square Drive, Awning Rail Attach #10 x 1 N
OTE 1
3
Roller Assembly 1
4
Arm Assembly 2
5
Pull Strap Catch 1
6
Screw, Hex Washer Head #10 x 3/4 2
7
Screw, Hex Washer Head #6 x 3/8 2
8
Screw, Hex Washer Head, Stainless Steel #10 x 3/4 2
9
Screw, Truss Head Square Drive #8 x 1 6
10
Pull Cane Ordered Separately 1
NOTE:
1. Quantity for screw (item 2) depends on length of awning. Under 8' = 17; 8'-12' 11" = 38; 13'
and longer = 50.
98
7
6
EW001
2
5
10
3
1
4
4
3"
3" Min3" Min
Window Frame
Minimum Awning Width
90
o
90
o
EW002
2.5" below upper projections
