Chapter 7: Appendices Bird Sentry™ Blender
24 L1383 Rev. D

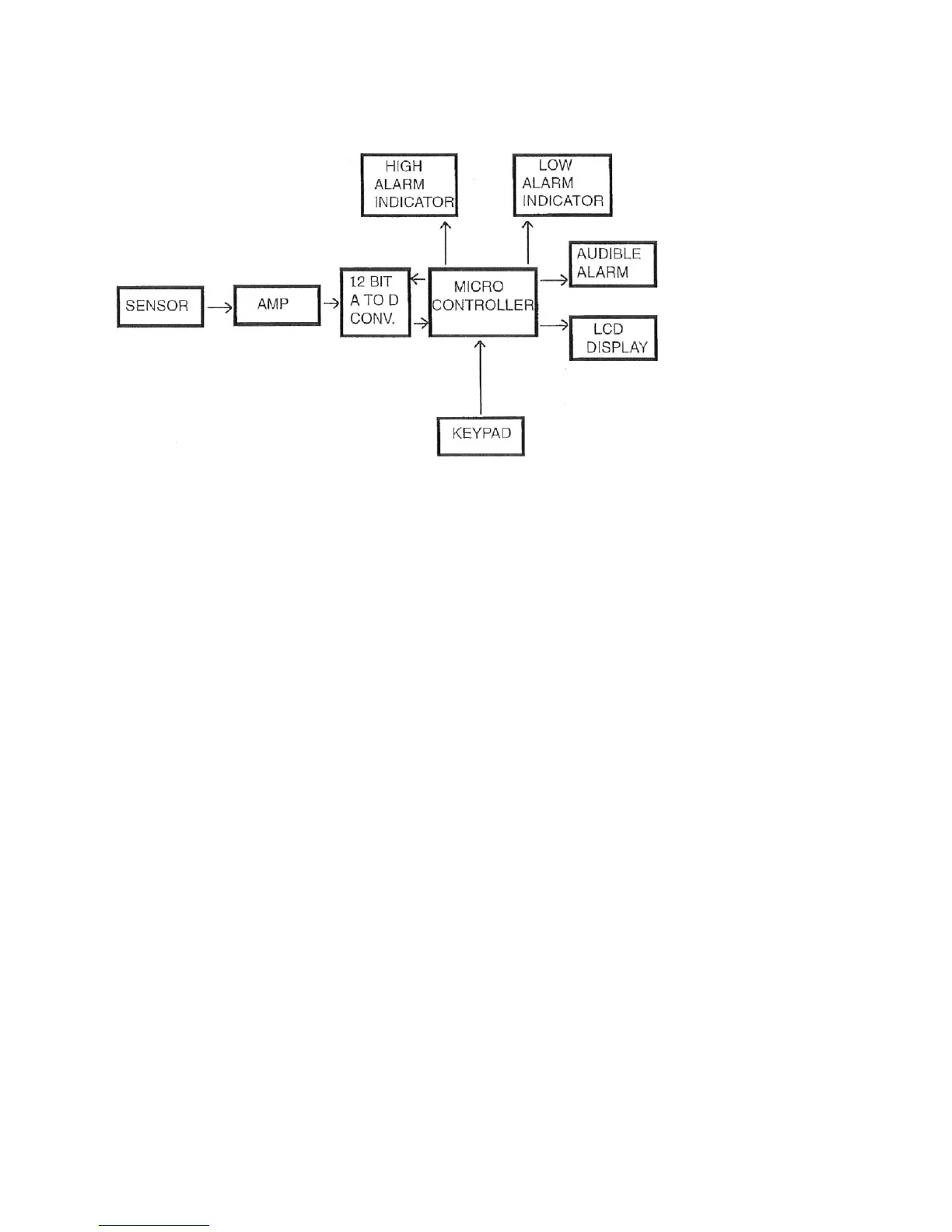

Electrical Block Diagram
This diagram is intended to assist the user in understanding the general functioning of the Bird Sentry
circuitry. The user and technician are both cautioned that there are no serviceable components on the
circuit board. Any service requirements should be referred to CareFusion Corporation.
