ABOUT THE RADIO SYSTEM
ST.TRIM
TH.TRIM
CTX-2710
Battery
Compartment Tray
Steering Trim Dial
Dual Rate Dial
* In general, user will experience under steer when making a wide turn at
high speed or over steer when making sharp turn at high speed (easy to
spin out). User should practice the throttle and steering approach for
different cornering at different speed or road surface.
Battery Installation
SYNC
The following is an overview of the various functions and adjustments found on CTX-2710 radio system for Carisma models. It is important to read and understand
about all of these functions and adjustments before driving.
Carisma CTX-2710 2.4GHz FHSS Technology System
Power ON
/
OFF the Transmitter
ST.TRIM
TH.TRIM

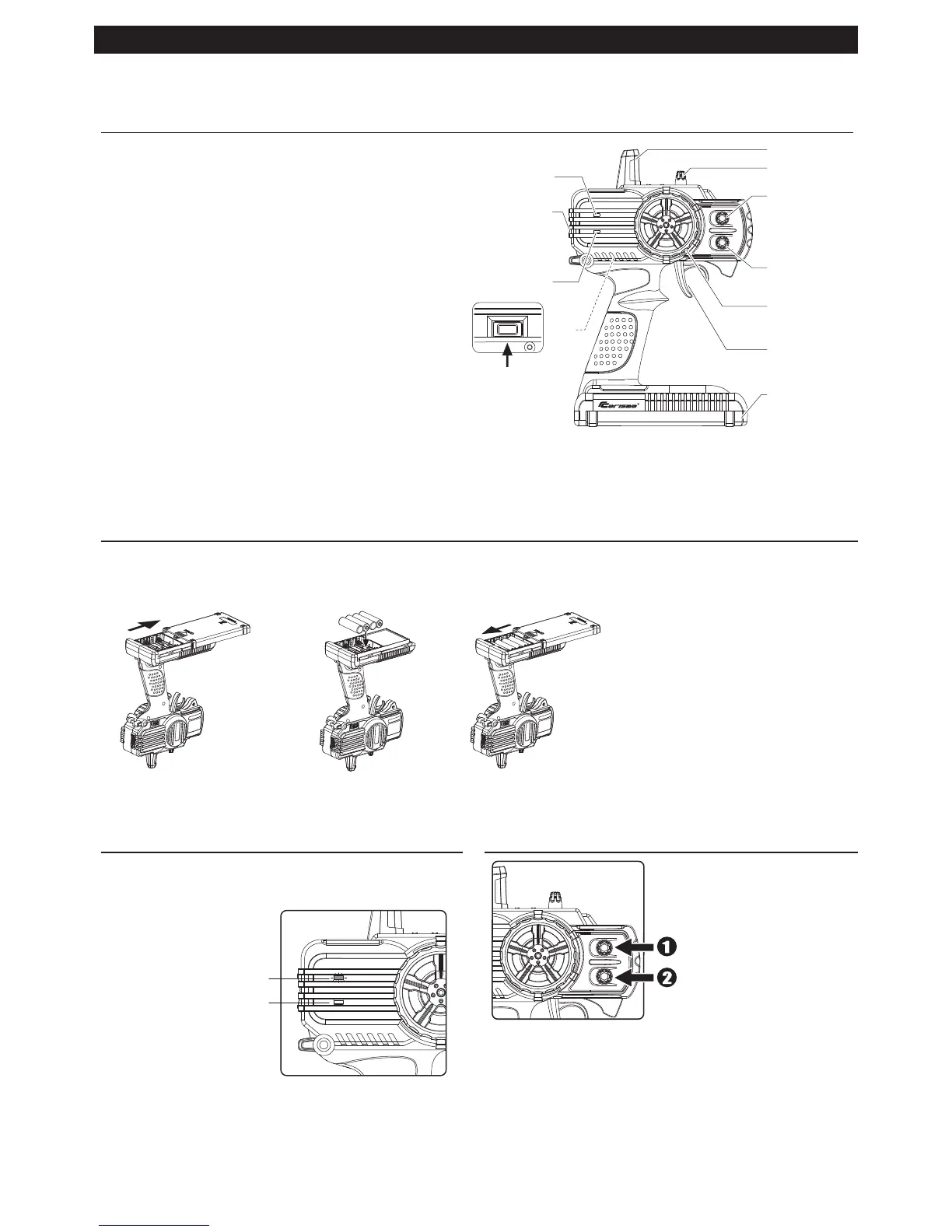

The Transmitter CTX-2710
Steering Wheel : Control direction (Left/Right) of the RC model.
Throttle Trigger : Control speed and direction
(Forward/Brake/Backward)of the driving model.
Antenna : Transmit signal to the model.
Power ON / OFF : Power ON / OFF the transmitter
SYNC & Battery Indicator : Top Green LED light indicates synchronization
status and/or adequate battery power supply.
Power Indicator : Bottom Red LED light indicates power “ON”.
Dual Rate Dial : Adjust the same maximum steering angle on
both sides when model turns Left / Right
ST. Trim Dial : Adjust the neutral position of steering servo
when model wheels are straight ahead.
TH. Trim Dial : Make sure the model stays still when releasing
the throttle trigger.
Battery Compartment Tray : Cover and hold the batteries powering the
transmitter.
Supplied with 4 x 1.5V AA Batteries,
CTX-2710 can be operated a few hours.
Installation: Remove the battery
compartment cover as shown below.
Install the batteries observing
the polarity marked on battery
compartment.
Then reinstall the battery
compartment cover as the
Picture shown below.
Warning :
Never disassemble batteries or put the batteries
in fire, chemical agents, otherwise they may cause
personal injuries or property damages.
Battery Disposal :
Observe corresponding regulations about wasted
battery treatment regulations.
1. After running out of power, dispose of wasted
batteries in designated areas far away from
water supply, household areas and planted areas.
2. Submit the wasted batteries to specific recycling
stations.
Battery LED Indicator
The Green LED indicator located on the front left side of the transmitter indicates
the power supply of batteries. The green LED will go solid on indicating that the
batteries have sufficient power. When batteries voltage drops below 4 volts, the
Green LED will flash, indicating the batteries power is low and should be replaced.
Pre-Run Check
Solid Green :
Sufficient Power supply
Flashing :
Time to replace batteries
Steering Wheel
Throttle Trigger
Throttle Trim Dial
Antenna
SYNC and
Battery
Level Indicator
Power
Indicator
Power
ON / OFF
Green
Red
SYNC
SYNC Button
(Synchronization)
* Always turn on the transmitter first by sliding the switch on the left side from
bottom to top. The small red and green lights above the switch should both
light up. If not, you need to check for low or incorrectly installed batteries.
1. Steering : Adjust the steering trim
to keep the front wheels in straight
line when steering wheel remains
in NEUTRAL position.
2. Throttle : Adjust the throttle trim
to ensure the rear wheels stop
rotating when throttle trigger
remains in NEUTRAL position.
2
