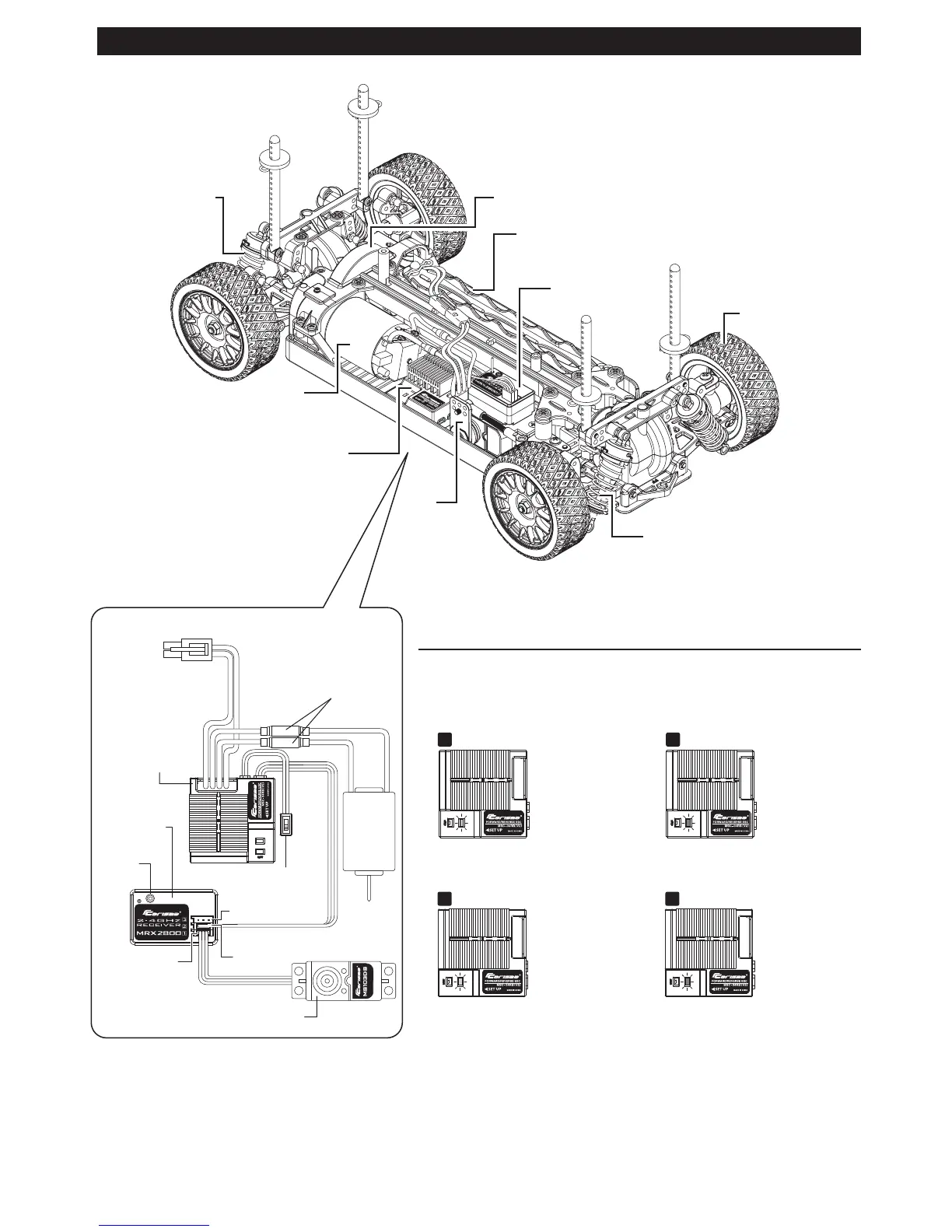

ABOUT THE RADIO SYSTEM
Power Switch
540 Size
MOTOR
Battery Plug
Connector
Bullet Connector
Setup
Button
Steering Port
Throttle Port
Auxiliary Port
(Reserved)
2.4GHz
Receiver
MRX2800
Electronic Speed
Control
MSC-04RB(V2)
Servo MS-103DS
ESC Features
1. Set TX Throttle Trimmer to neutral position.
2. Connect the battery to ESC (Make sure ESC OFF)
3. Switch on TX
4. Switch on ESC
Electronic
Speed Controller
MSC-04RB(V2)
Servo
7.2V
Rechargeable
Battery
Gear
Differential
540 Size
Motor
* Each step must be carried out swiftly. Otherwise the program will need to re-set again. The Green LED will be switched on while the trigger is at
neutual and the car will not move.
THIS ESC IS DESIGNED FOR THE INCLUDED MOTOR. DOT NOT INSTALL ANY OTHER MOTOR CAR IS MOVING WITHOUT PULLING THE TRIGGER.
THROTTLE TRIM IS OUT OF POSITION. TRIM THE THROTTLE TRIM.
ESC Setup
5 6
7 8
5. Press setup button enter programme
mode (Red & Green LED ON)
6. Pull Throttle trigger to max forward
position and press button to set
forward position (Green LED ON)
7. Push Throttle trigger to max reverse
position and press button to set
reverse position (Red LED ON)
8. Release Throttle trigger to Neutral/
Stop and press button to finish
(Green LED ON)
2.4GHz
Receiver
OFF-Road Tire
Front Oil Filled
Suspension
Rear Oil Filled
Suspension
