Carl Martin Octa-Switch II User Manual

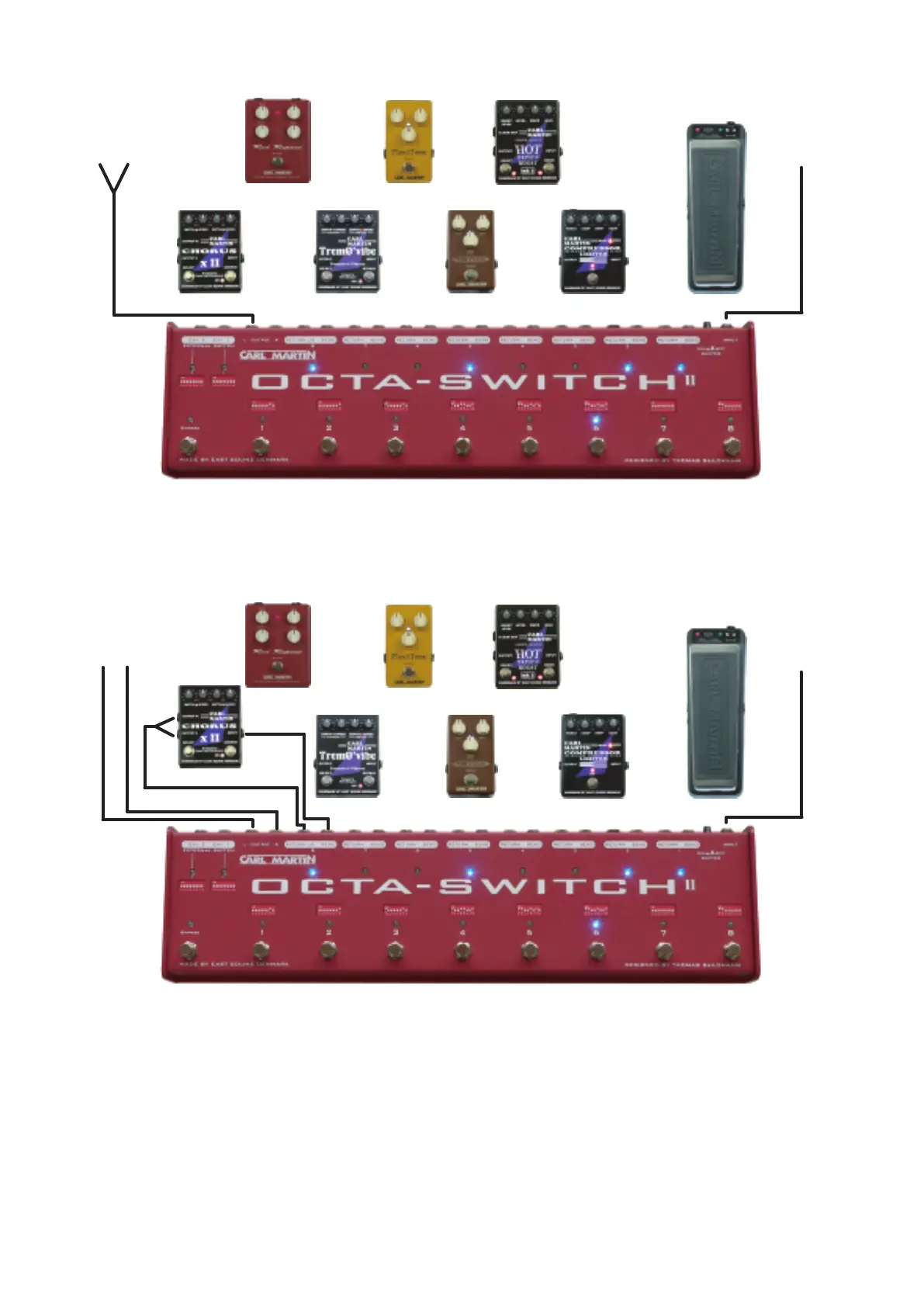

Example of mono dual amp operation
GUITARAMP´S
LOOP 1
LOOP 2
LOOP 3
LOOP 4
LOOP 5
LOOP 6
LOOP 7
LOOP 8
Use a Y-cable in left output with 2 mono and 1 stereo jack, connect Tip & Ring to (+)
Example of stereo dual amp operation
GUITARAMP´S
LOOP 1
LOOP 2
LOOP 3
LOOP 4
LOOP 5
LOOP 6
LOOP 7
LOOP 8
Use a Y-cable from the stereo unit to loop 8 return, left on ring and right on tip of the stereo jack.
Please notice that there is only full stereo operation with signal on the right output when there is a stereo pedal
in loop 8, and loop 8 is engaged i.e. a stereo chorus, to maintain output on both L/R also without the chorus
effect, you have to bypass the effect on the chorus pedal.
When there is no stereo pedal engaged there is no signal at the right output.

Carl Martin Octa-Switch II Specifications

General

Brand	Carl Martin
Model	Octa-Switch II
Category	Switch
Language	English
