Carl Martin Octa-Switch II User Manual

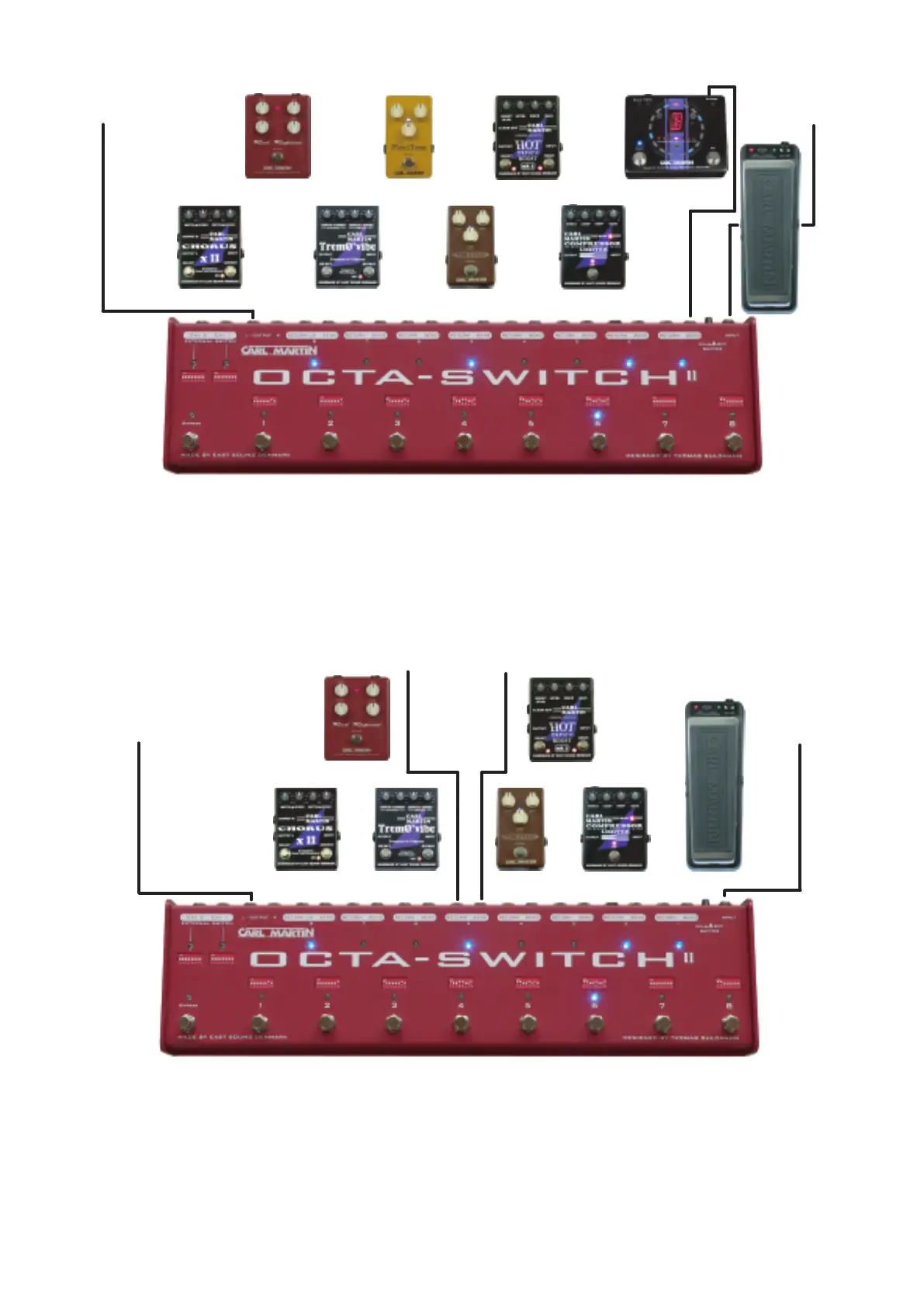

Example on mono operation with mute and tuner out
GUITARAMP
LOOP 1
LOOP 2
LOOP 3
LOOP 4
LOOP 5
LOOP 6
LOOP 7
LOOP 8
Connect a tuner to i.e. loop 1 send, and nothing in the loop return, select i.e. program 8 with only loop 1 enga-
ged, this way you mute the system while getting signal to your tuner, without the signal passing through the
tuner.
Example on operation with some pedals going front in the amp, and
some in the amp's own loop
GUITARAMP LOOP IN
LOOP 1
LOOP 2
LOOP 3
LOOP 4
LOOP 6
LOOP 7
LOOP 8
As shown on the illustration in this example we do have 4 pedals going to the amp's input, and three pedals
in the amp's own loop.
So in the example we use LOOP 5 as the split loop (any can be used) loop 5 send goes the the amp's input,
so loop 1-2-3-4 are all front in. The amp's own loop send goes the loop 5 return, and the Octa-Switch main
out (left) goes to the amp's loop return, so loop 6-7-8 all will be inserted in the amp's loop after the pre-amp.
IMPORTANT LOOP 5 SHALL ALWAYS BE ACTIVATED.
AMP INAMP LOOP SEND
LOOP 5
