Air-powered Coil Siding Nailer
6
Regulator
2
Quick connector
7
Filter
3
Quick coupler
8
Cut -off valve
4
Air hose
9
Air compressor
5
Lubricator
98
NAME OF PARTS
Compatible compressors
OPERATION
NOTE: The information contained in this Manual is designed to assist you in the safe
operation of the Nailer.
Some illustrations in this Manual may show details or attachments that differ from those
on your own Nailer.
GUIDELINES FOR PROPER USE AND OPERATION
Be sure to use a proper air compressor with CARPENTER Air Tools. The compressor should be able to
supply a minimal air delivery of 4.7 CFM @ 90 PSI to ensure the compressor can run continuously with
the CARPENTER 15º Wire Collated Coil Siding Nailer.
General use
No. Description No. Description
The CARPENTER 15º Wire Collated Coil Siding Nailer. drives 1-1/2” to 2-1/2” 15º Wire Collated Coil Nails
and plactic coil nails. The tool is lightweight and durable, stands up to the elements and provides
consistently accurate results over the life of the tool. An ideal tool for a variety of construction projects,
including installation of asphalt roofing shingles and insulation boards. It also features a high-capacity
side-load magazine, tool-less depth adjustment, durable construction, and more.
•It is recommended that a filter-regulator-lubricator be used and be located as close to the tool
•If a filter-regulator-lubricator is not installed, place up to 6 drops of compressor oil into the air
inlet plug before each use.
•If a filter-regulator-lubricator is installed, keep the air filter clean. A dirty filter will reduce the
air pressure to the tool, which will cause a reduction in power, efficiency, and general
•Verify that all of the connections in the air supply system are sealed in order to prevent air leakage.
Read and follow all the safety instructions at the beginning of this manual and inspect the
air-powered nailer prior to each use in order to ensure that the proper power source is being used
and verify that the tool is in proper working order
Model No. CCN65Z contact us 1-888-666-1887

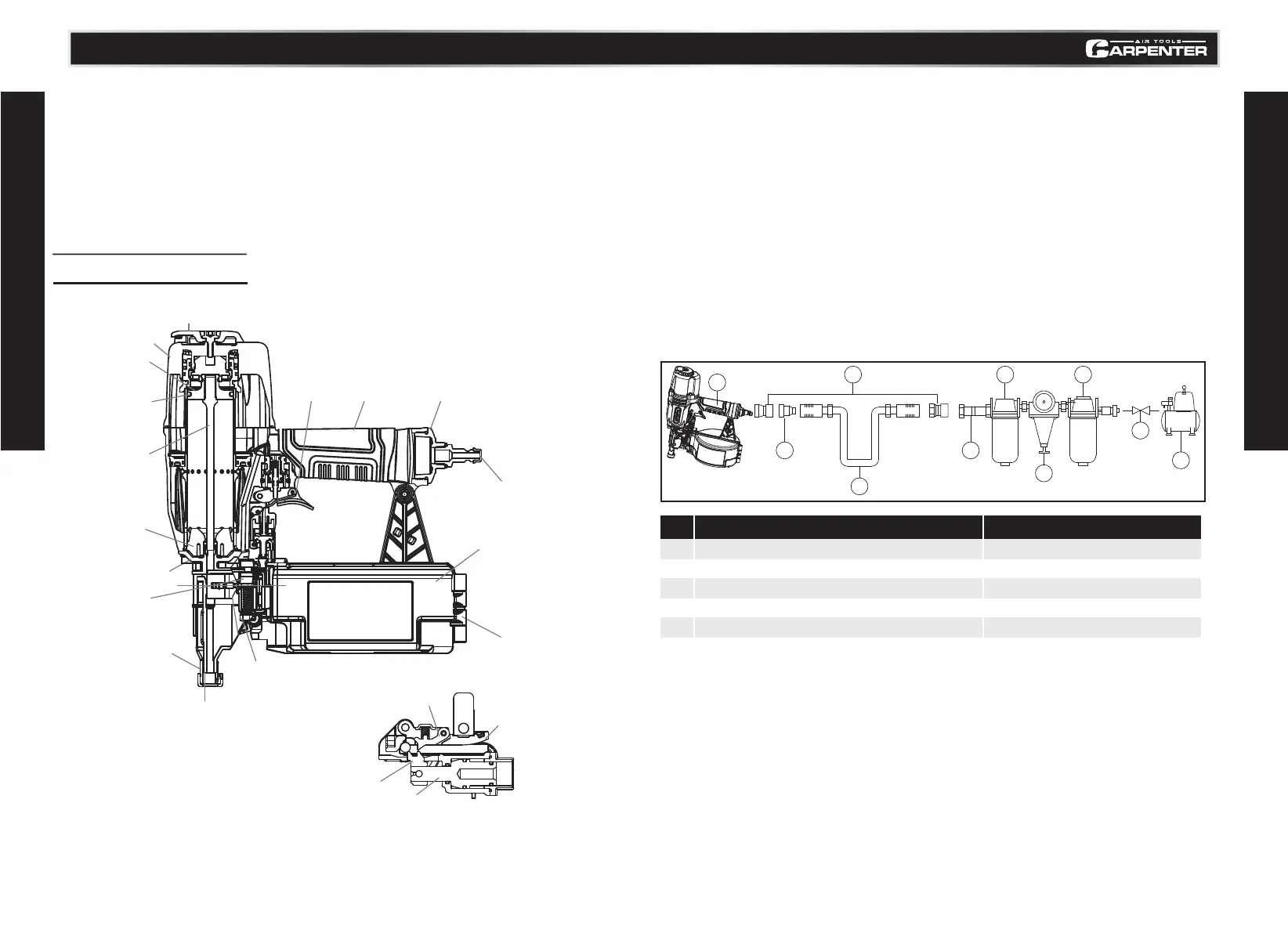

KEY PARTS DIAGRAM
TECHNICAL INFORMATION
Top Cover
Exhaust Cover
Piston
Piston O-Ring
Driver Blade
Nose
Bumper
Push Lever
Firing Head(outlet)
Knob
Nail Guide
Magazine Cover
Magazine Assembly
Air Plug(Sold separately)
Cap
BodyTrigger
A
A
Nail Guide
Feeder
Feeder Piston
Section A-A
Nail Stopper
1
2
5 7
3
4
3
6
8
9
To Next Page
