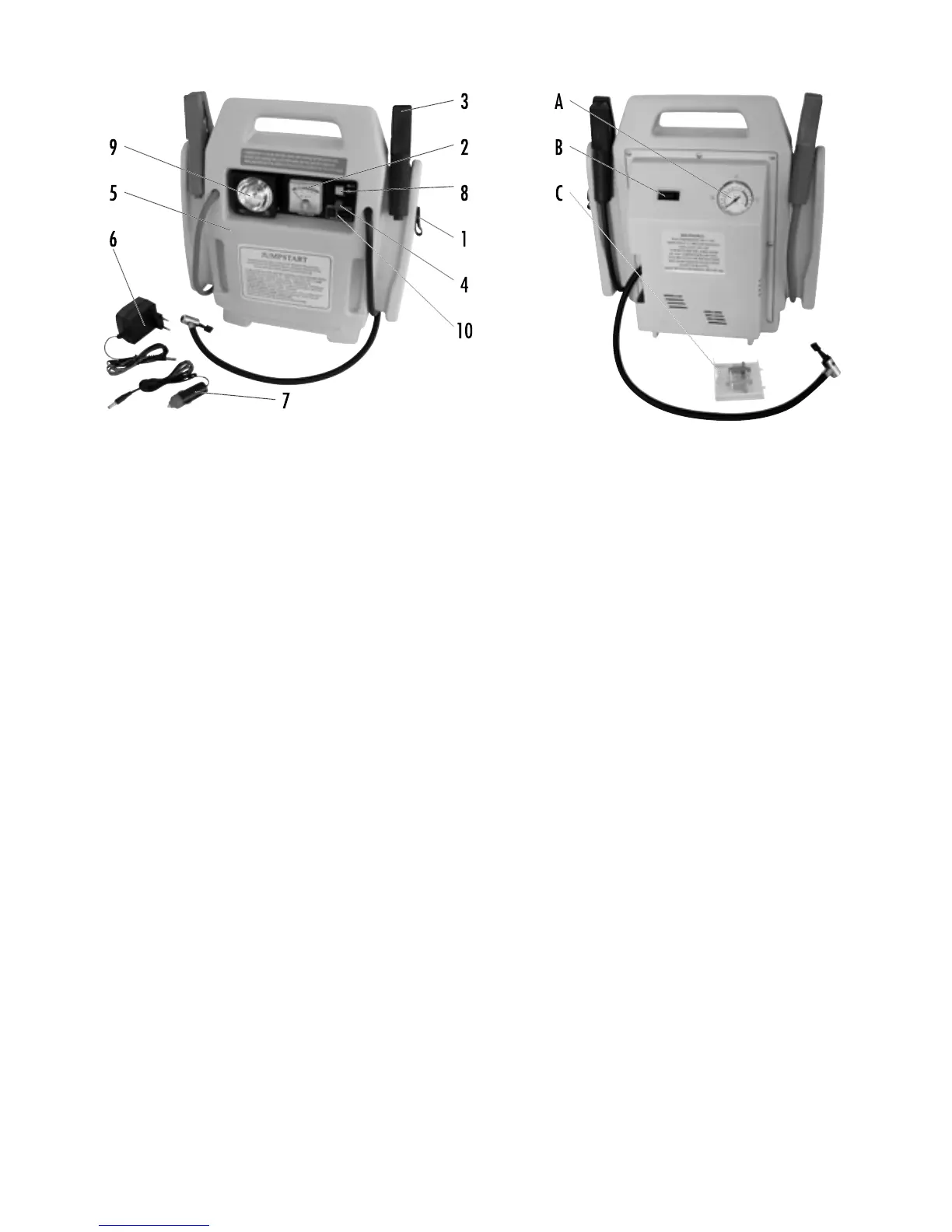

CARPOINT 0177707 - Front Control Panel Identification; Air Compressor Component Identification

JuMpstarter WItH aIr coMpressor

1 12V output socket with overload protection
2 Color coded battery meter
3 Heavy duty 400A booster clamps
4 Switch
5 Impact resistant polyethylene case
6 230V AC adapter/charger
7 DC-DC power cord
8 Emergency light switch
9 Emergency light
10 DC charging LED and socket for charging plug

A Pressure gauge
B Compressor switch
C Inflating hose and cover of the compartment for storing of the hose
Features
• 900Apeak/400Abooststartingpower.
• Startscars,trucks,recreatingvehiclesandboatswithouttheneedofahostvehicleorACpowercords.
• 12DCcigarettelightersocketwithoverloadprotectionprovidespowerforutilitiesandappliancesthatusuallyplugintoavehicleorboat12Vcigarette
lightersocket.
• Providesupto50hoursofDCpowerwhenusewith12VDCappliances.
• Allows12VDCappliancestobeusedinremotesitesand/orinemergencywhencommercialpowerisnotavailable.
• Solid-state,automaticoperationandcircuitprotection.
• Sealed,maintenance-free,heavy-dutybatterysafelyuse.
• Thissystemcanbestoredwithoutriskingacidleakage.
• Heavy-dutyindustrialtypeweldingcablescancarrymoreamperagethansimilarunits.
• Batteryconditionmeteriscolorcodedandeasytoread.
• DC-powercordallowsrechargingfrom12VDCcigarettelightersocket.
• Moldedhigh-impactcaseistoughanddurable.
• Hasabuilt-inlightforroadsidevehiclerepairsforemergencysituations.
InstructIon
Yourjumpstarterisdesignedasacompact,durableandportablesystemforvehiclesandboats.Thisself-containedsystemwillstartmostvehiclesandboats
withouttheneedforahostvehicleor230VACpowersupply.Thissystemcanalsobeusedasasafe,portablesourceof12VDCelectricpowerinremote
locationsand/orinemergencies.
Thejumpstarterhasaneasytoread,colorcodedbatterymeterthatindicateschargelevel.A12VDCcigarettelightersocketisprovidedforusewith
appliancesthatwouldoperatefromavehiclecigarettelighter.Thisallowsmaximumportabilityandutilitywhenyourjumpstarterisusedinremotelocations.
Formaximumconvenience,yourjumpstartercanberechargedwiththeseparatelyprovided230VACAdapter/charger.Asquare,green,coveredcigarette
lighter12VDCsocketisprovided.TheredLEDilluminateswhenthissystemisrecharging.
WarnIng! Alwaysweareyeprotectionwhenworkingonoraroundlead-acidbatteries.
immediatelywasheffectedareassuchasfaceandparticularlytheeyeswithcleanwater.Continuewashingareaandface
untilmedicalhelparrives.
