EN 5

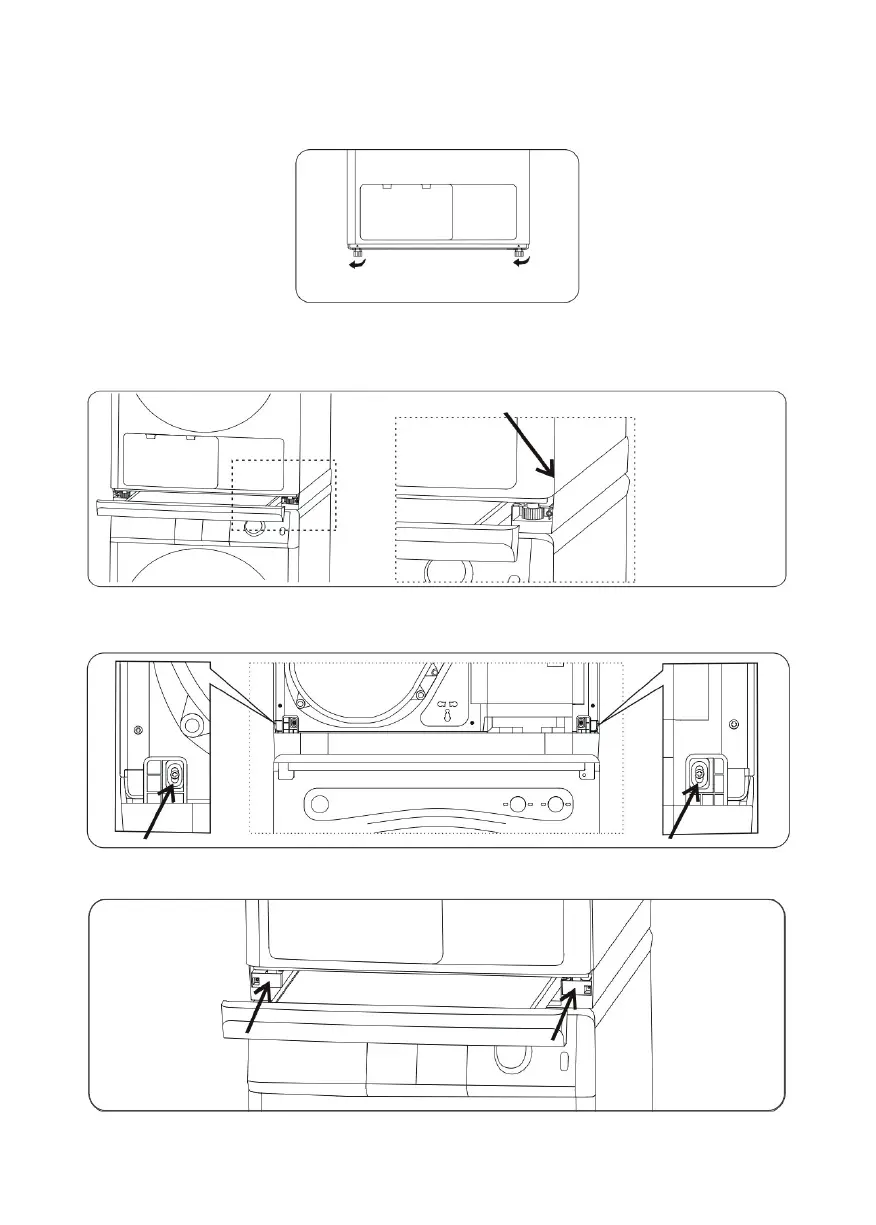

5. Loosen adjustable feet in the front of the dryer in the tightest state for
3–4circles.
6. Open the drawer of the stacking support and place the dryer on the stacking
support (lifting is dangerous and must be done with extreme caution).
7. Screw left and right connecting plates on the back of the stacking support
(screw holes are the holes fot the screws removed in Step 4).
8. Screw left and right stopper brackets in the front of the stacking support.
3–4 circles 3–4 circles
Note: There should be a 1 mm clearance. If not, loosen the adjustment legs.
Note: Put
adjustment feet
in the front of the
stacking kit!
