FITTING (HIDDEN) PANEL ACTUATOR CABLE PANEL CABLE

WATER

SENSOR

CABLES

WATER

SENSOR

CABLES

COOLER

PRESSURE

TRANSDUCER

CONNECTION

CONDENSER

PRESSURE

CABLE

SCHRADER

FITTING (HIDDEN)

CONDENSER

PRESSURE

TRANSDUCER

CONNECTION

CONDENSER

SERVICE

VALVE

COMPRESSOR

DISCHARGE

ELBOW JOINTS

MOTOR WINDING

TEMPERATURE

CABLE

DISCHARGE

ISOLATION

VALVE

(OPTIONAL)

TOP VIEW

COMPRESSOR DETAIL

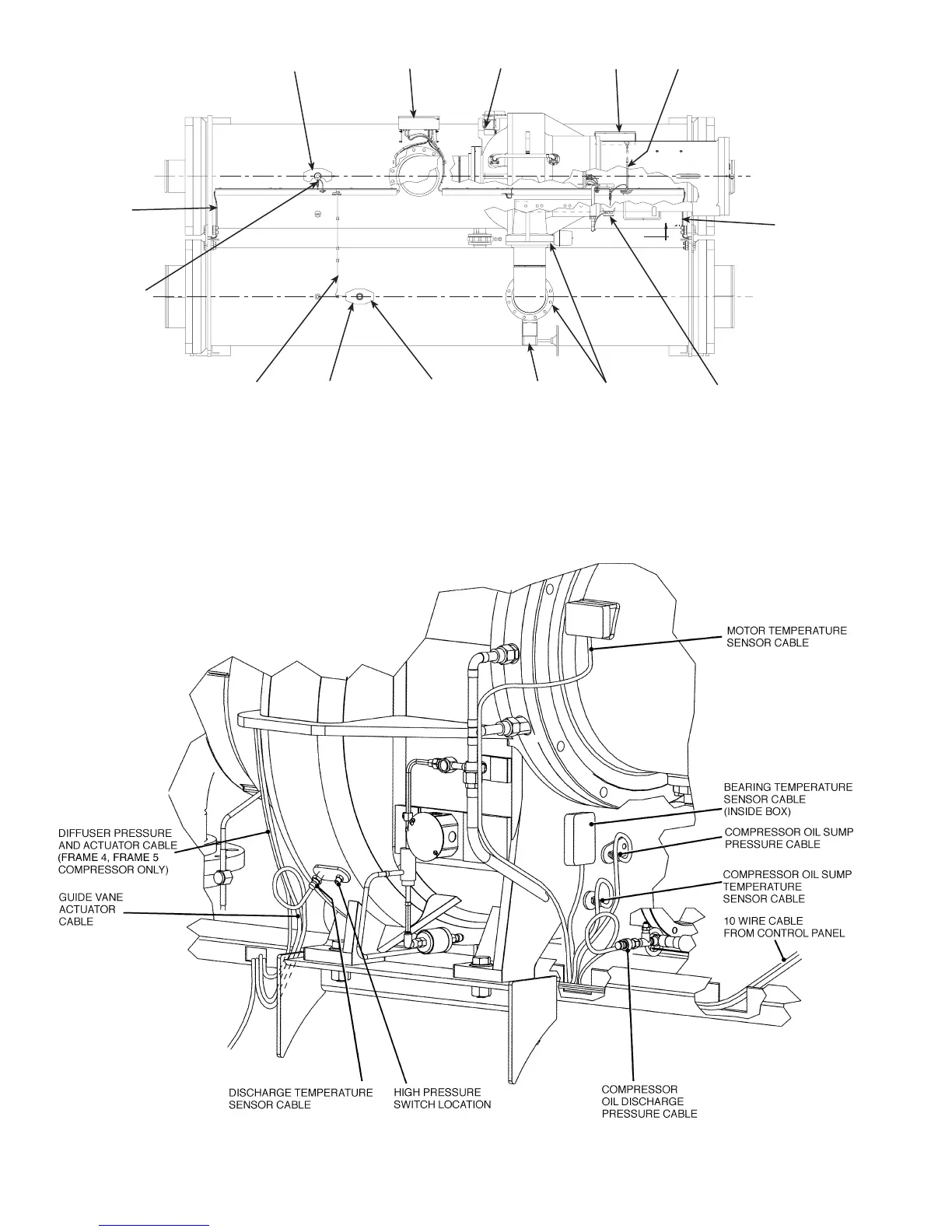

Fig. 9 — 19XR Controls and Sensor Locations
