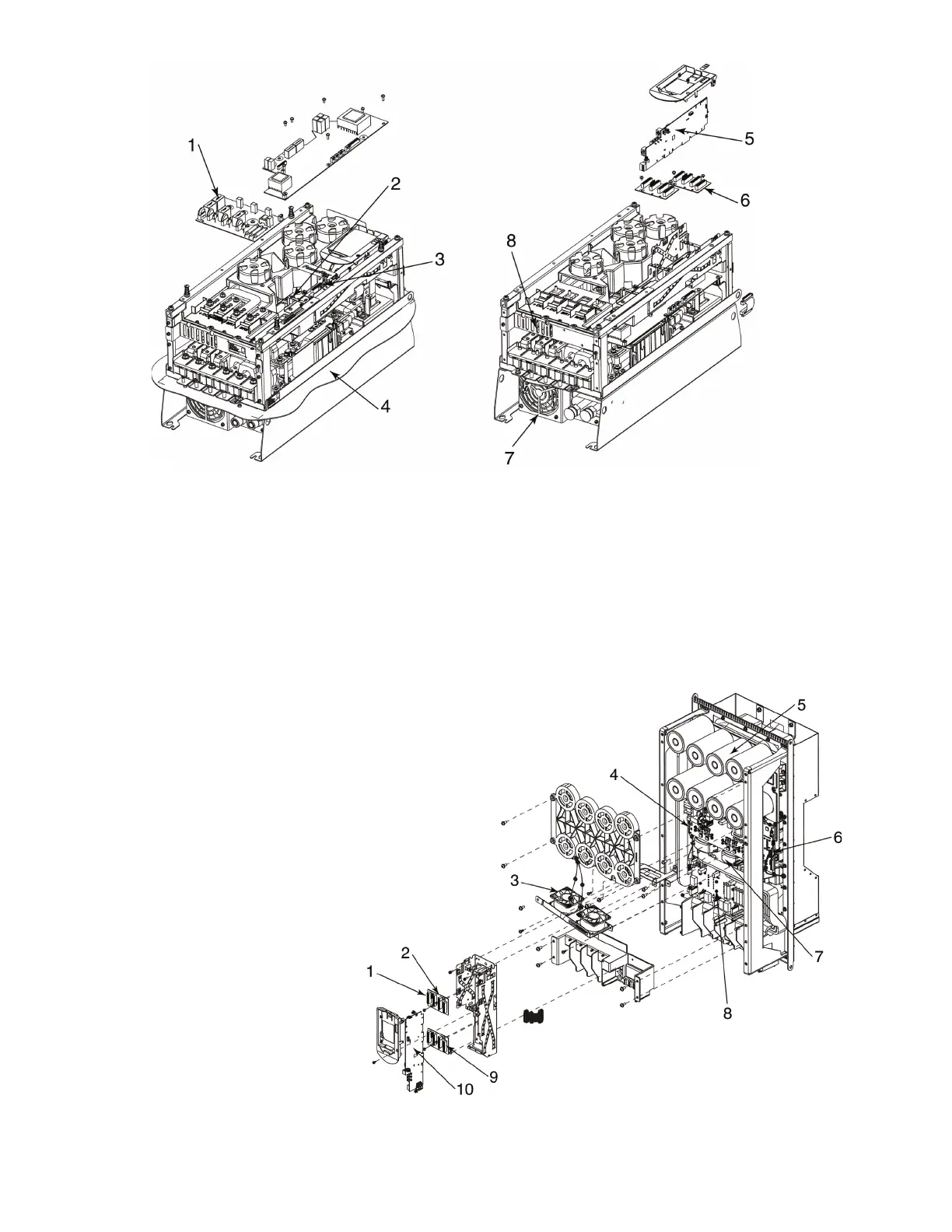

Fig. 33 — Frame 6 Parts

Fig. 34 — Frame 7 Parts

LEGEND

1—PF750 Series, Precharge Kit

2—PF750 Series, Gate Interface

3—PF750 Series, Power Interface

4—PowerFlex 750 Series, Flange Gasket

5—PF755 Main Control Board

6—PF750 Series, Backplane Interface

7—PF750 Series, Type 4X/12 Chill Plate (Heatsink) Fan Kit

8 — Chill Plate Fan

NOTE: When replacing the Main Control Board (Item No. 5) the jumper

marked “J1 HARDWARE ENABLE” must be removed and the jumper

marked “J2 SAFETY ENABLE” must be left in place.

a19-1848

LEGEND

NOTE: When replacing the Main Control Board (Item No. 10) the

jumper marked “J1 HARDWARE ENABLE” must be removed and

the jumper marked “J2 SAFETY ENABLE” must be left in place.

1—Slot for Gateway (Gateway Not Shown)

2—PF750 Series, Backplane Interface

3—PF750 Series, Type 4X/12 Heatsink Fan Kit

4—PF750 Series, Power Interface

5—PF750 Series, Bus Cap Assembly

6—PF750 Series, Power Interface Cable

7—PF750 Series, Current Transducer Kit

8 — PF750 Series, Precharge Kit

9—Slot for 24 v I/O Module (24 v I/O Module Not Shown)

10 — PF755 Main Control Board

a19-1849
