APPENDIX A — WIRING SCHEMATICS (cont)

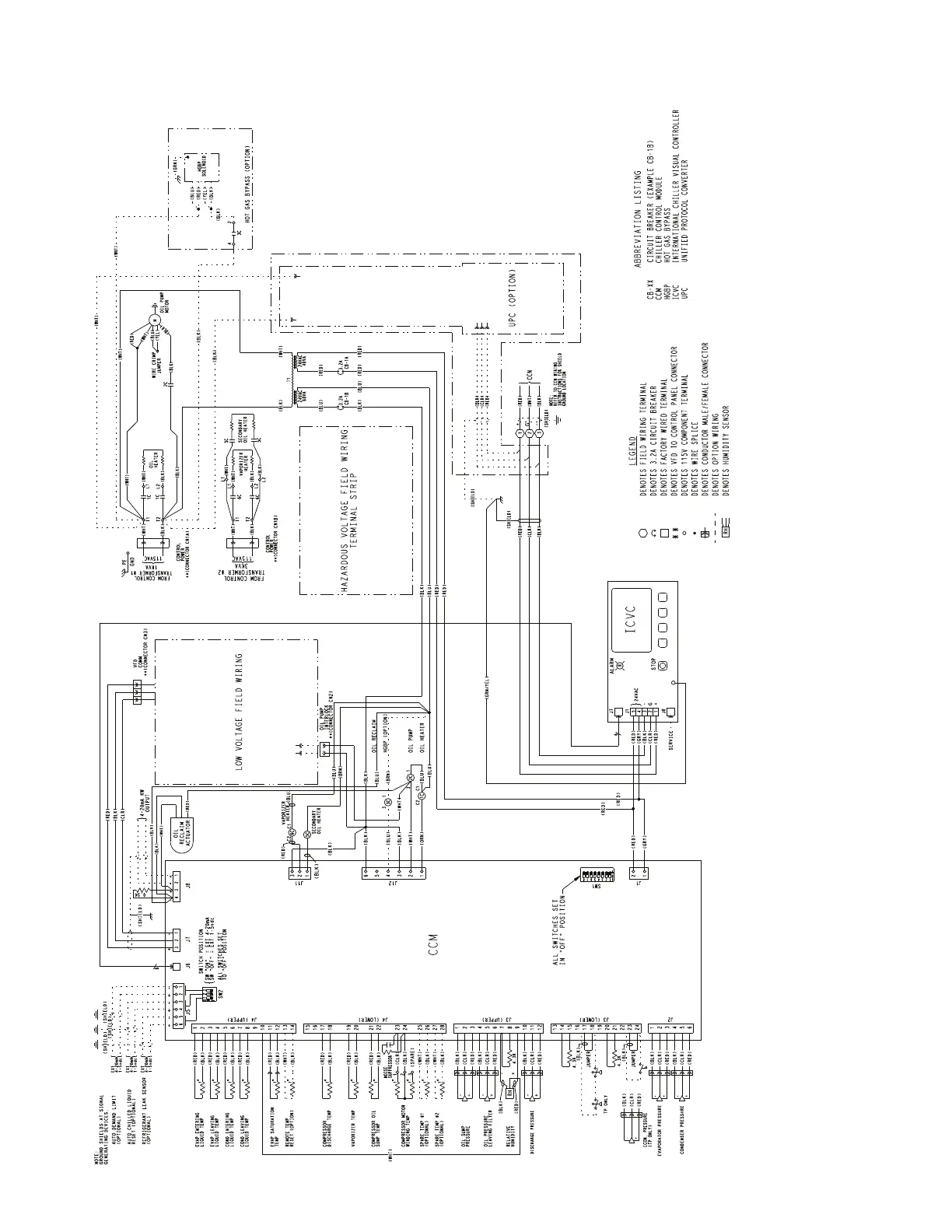

23XRV CHILLER CONTROL SCHEMATIC

a23-1731

NOTES:

1. Liquid flow circuit: to install optional flow device, wire as shown (NO) and replace jumper

with a 4.3k resistor.

2. For TP compressor, the condenser flow switch must be installed in series with the cooler

flow switch. Do not connect condenser flow switch to J3 (Lower) 23 and 24.

3. For TP compressor, remove 4.3k resistor between J3 (Lower) 20 and 21.
