Carrier 19XRV Series User Manual

26

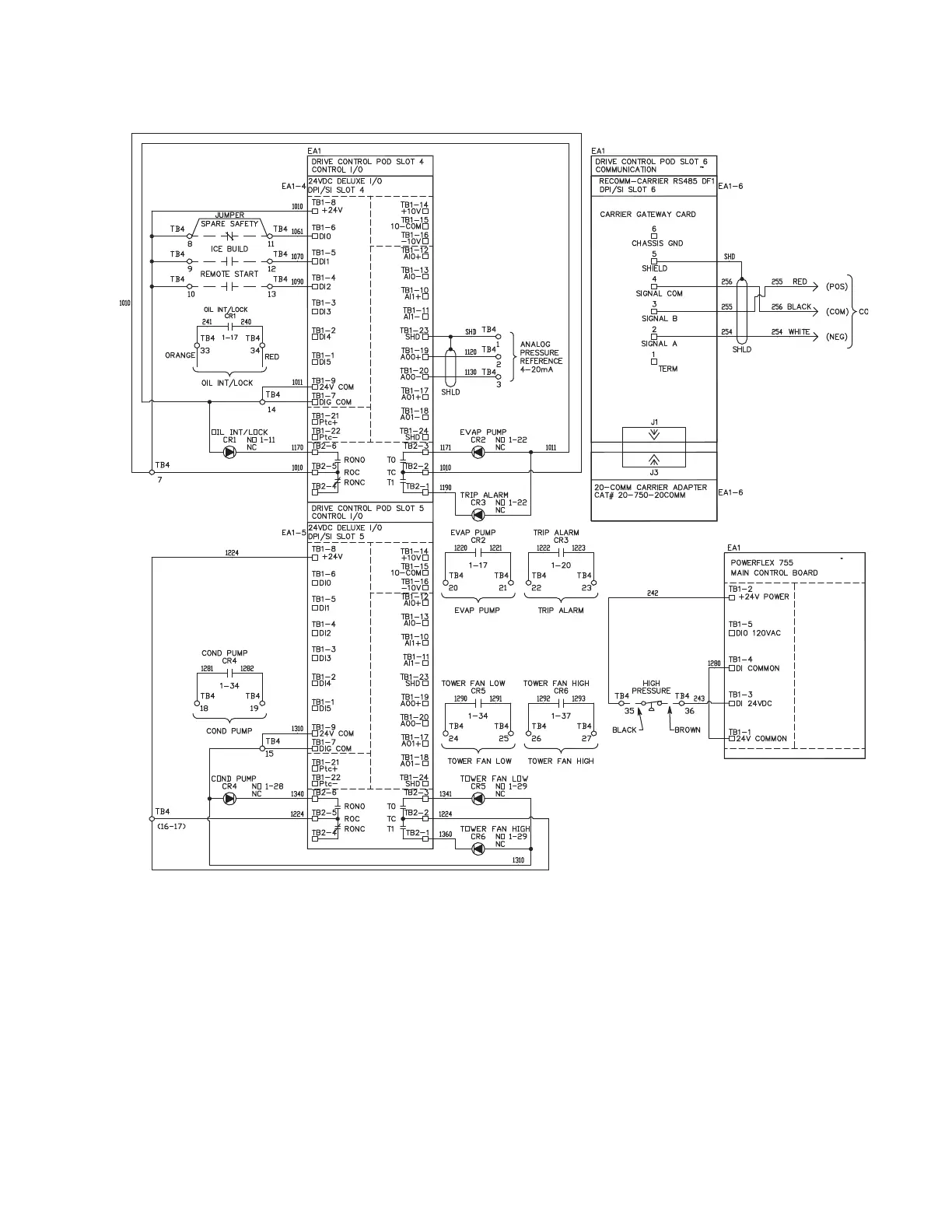

APPENDIX A — WIRING SCHEMATICS (cont)
ROCKWELL POWERFLEX 755 WIRING SCHEMATIC (Typical) (cont)
19XRV (Typical) (cont)
a19-2331
PIC6
CAT# 20-COMM-H
LEGEND
CAP — Capacitor
CB — Circuit Breaker
COM — Common
COMM — Communication
COND — Condenser
CR — Control Relay
DPI/SI — Internal Communication Protocols
Connections
EA — Electrical Assembly
EMI — Electro-Magnetic Interference
EVAP — Evaporator
FU — Fuse
GND — Ground
JMPR — Jumper
M—Motor
NC — Normally Closed
NO — Normally Open
PE — Potential Earth (Ground)
POD — I/O Card Mounting Board Slot
REM — Remote
RO — Relay Output
ROC — Relay Output Common
SHLD — Shield
TB — Terminal Block

Carrier 19XRV Series Specifications

General

Frequency	50/60 Hz
Motor Type	Hermetic
Type	Water-Cooled, Centrifugal
Compressor Type	Centrifugal
Refrigerant	R-134a
