Floor mounting

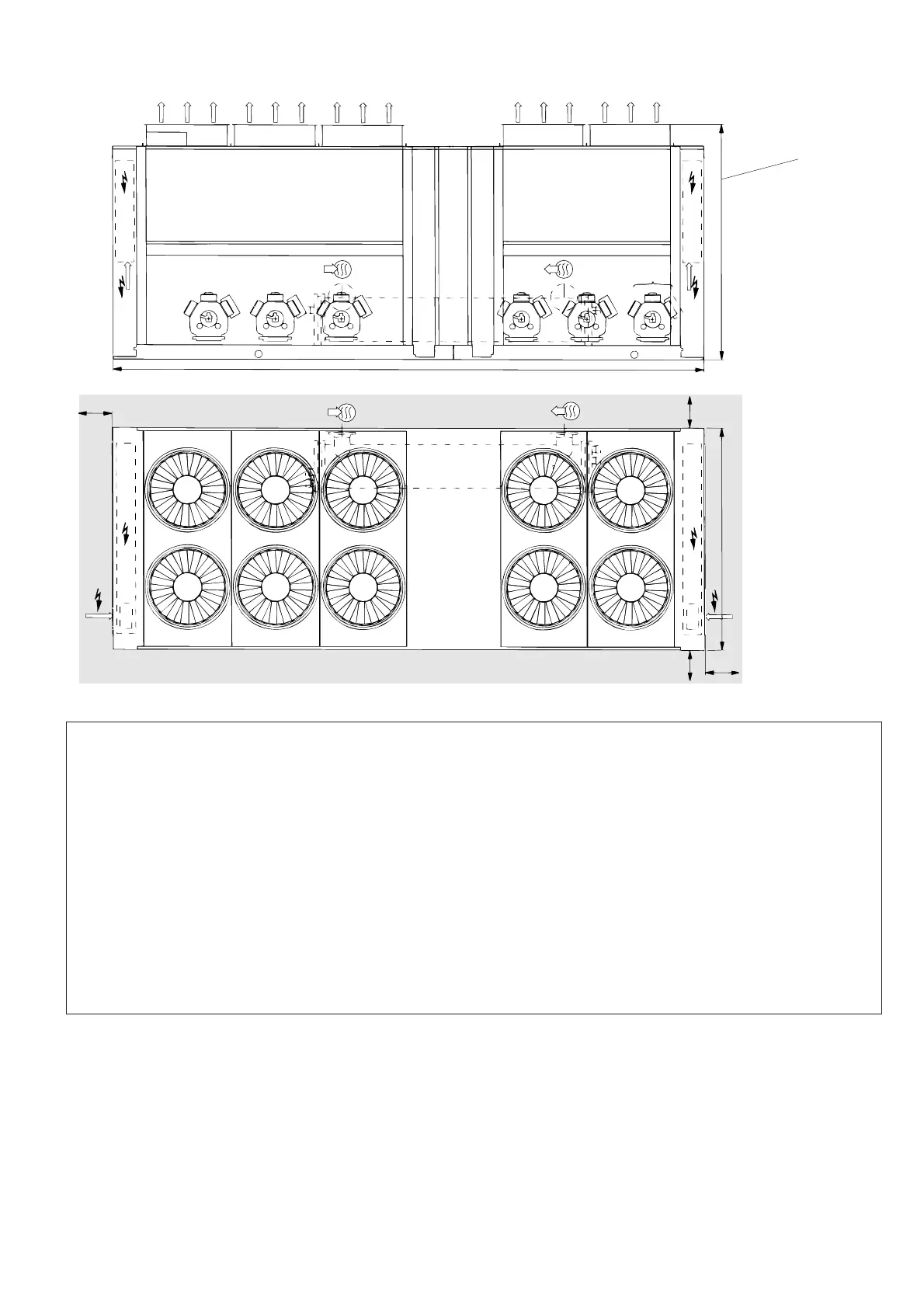

• For unit mounting holes, weight distribution and centre of gravity coordinates, refer to the dimensional drawings.
• These units are designed for outdoor installation.
CAUTION:
• Ensure the air flow around the unit is not obstructed.
• At least two sides of the units must be free from obstructions, to ensure proper air flow.
• If several units are installed, next to each other, ensure that the space in between the units is the same as the unit
depth.
• There must not be any roof or cover above the unit.
ATTENTION:
30GH/GZ 170- 245
have two power
connection points.
For 30GH/GZ 170-245
only
30GH/GZ 150-245
Do not obstruct Do not obstruct
D
F
E
C
G
B
A
