5
CUT ALONG DOTTED LINE CUT ALONG DOTTED LINE
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

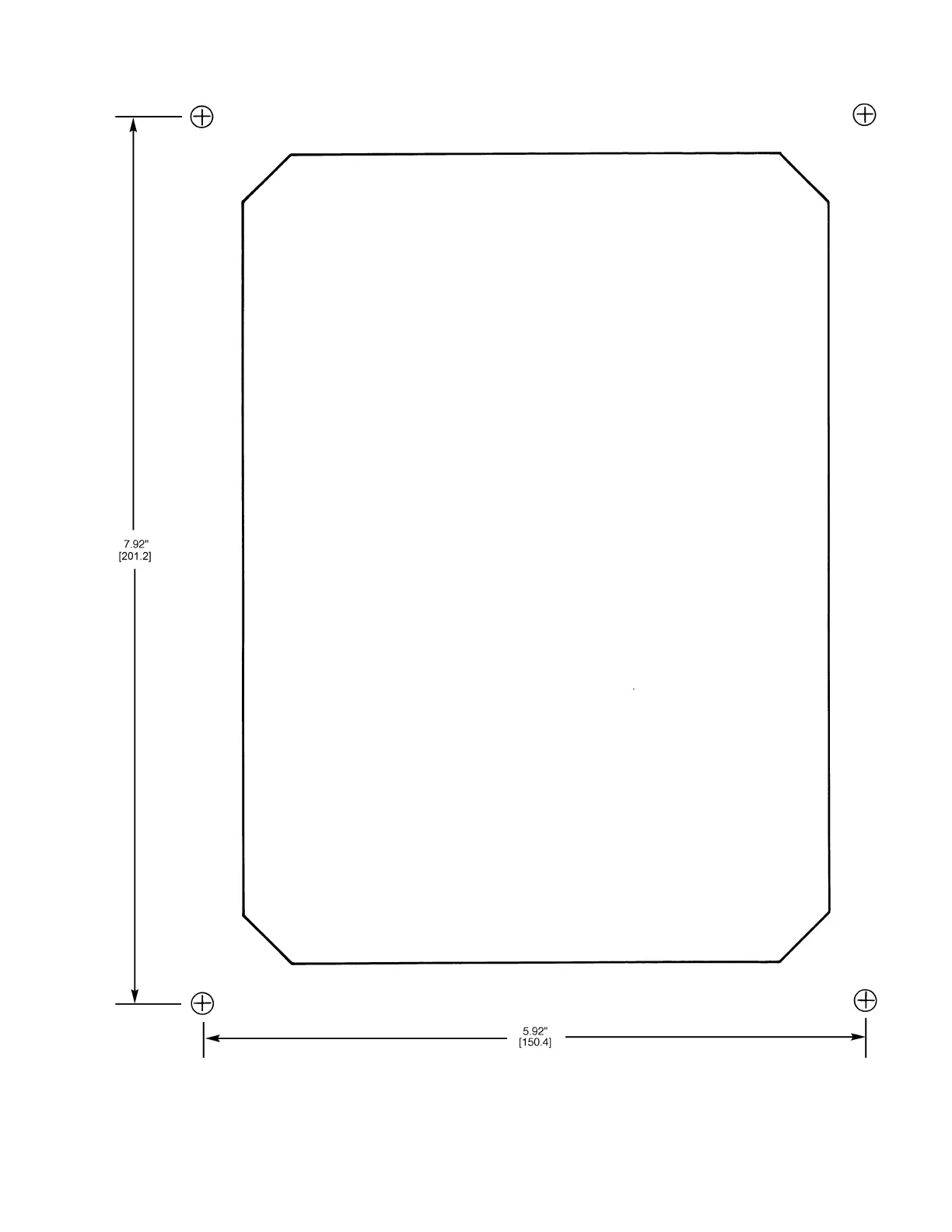

MOUNTING TEMPLATE
NOTES:
1. Cutout leaves .200 in. (5 mm) ledge inside window.
2. Do not cut hole outside these template lines. If hole is larger than template, water will leak into the unit.
3. Dimensions are in inches, and dimensions in [ ] are in mm.
