Mounting instructions - Fixing
The WUI control comes with the Wall plate used for
support of the remote control.
The user interface comes with its wall mount.
The wall mount bracket must be secured with a set
screw - plugs (slotted countersunk flat FS Ø: 04
mm, diameter: 05 mm), not supplied, using the
oblong holes spotted on the support.
Provide 2 cables about 2 wires out of the wall
One for communication BUS (A)
One for supplying the User Interface (B)
Both are requiring your attention as polarity
matters.
Before wiring on terminal block, refer to IOM for
details on how to connect wires and to respect
polarity.

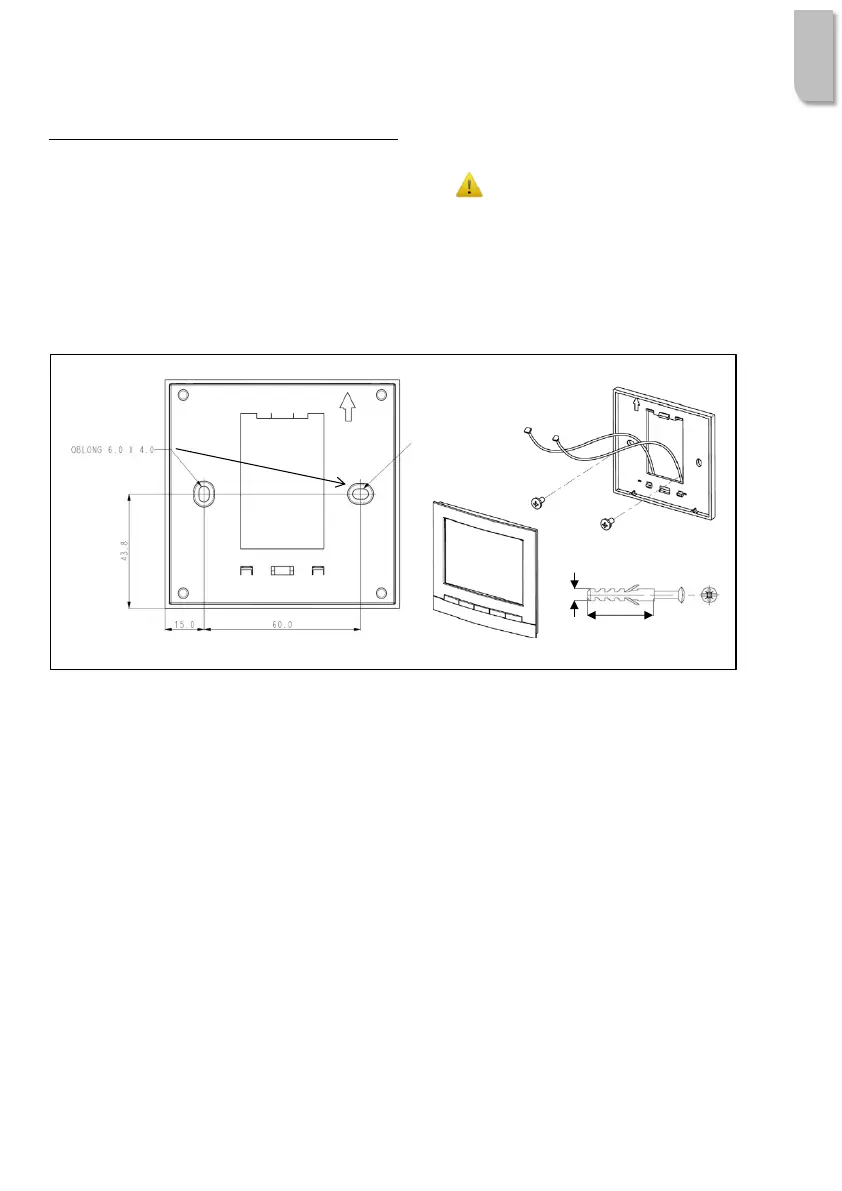

Wall plate frame dimensions - mounting on the wall
Figure 2: Wall mounted plate frame
Where to locate WUI on the wall?
When the user interface is configured as a room thermostat, it is essential to place the user interface within the habitat
in the mood control, away from heat sources (fireplaces, radiators sun rays), drafts (windows and doors) and
passageways.
