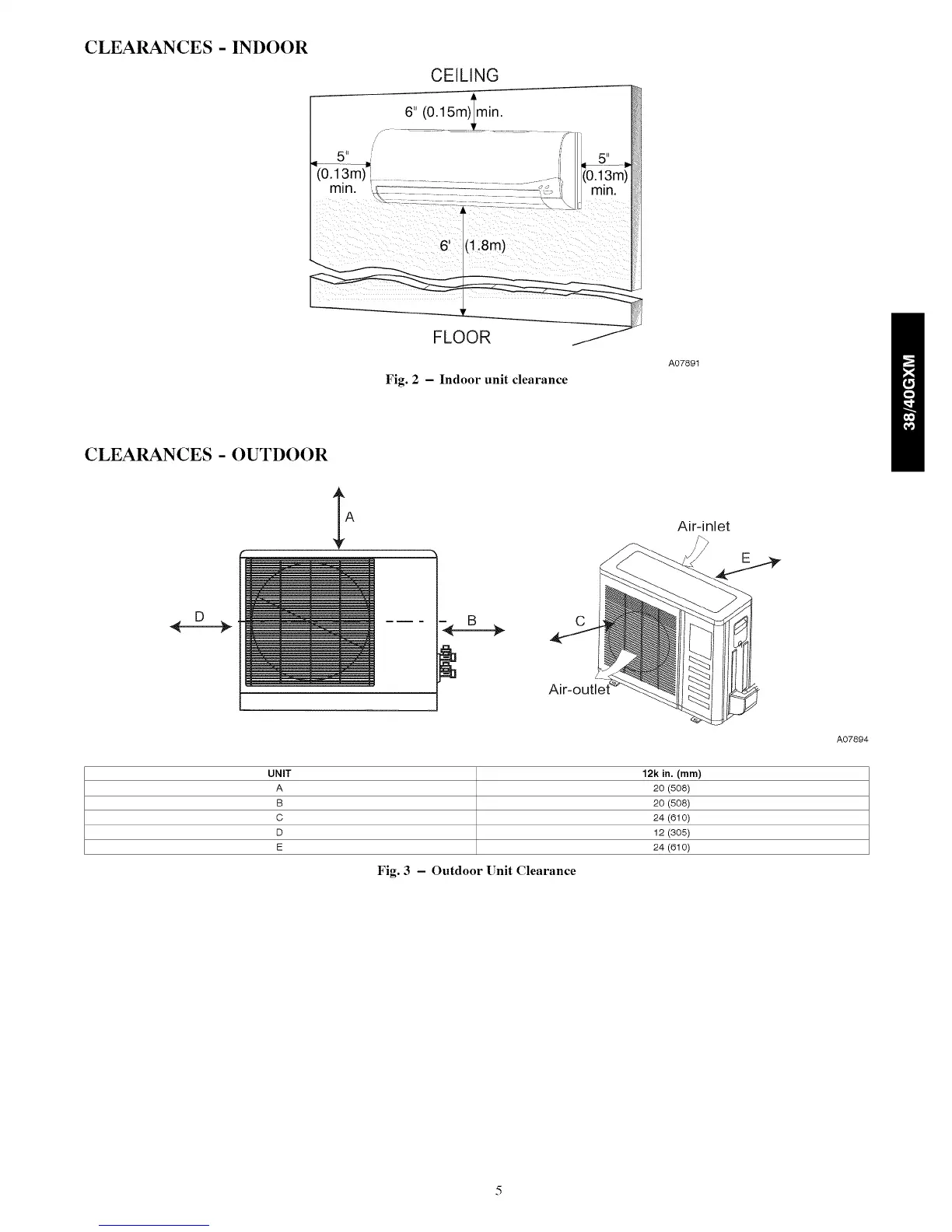

CLEARANCES - INDOOR
CEILING
J-6"(0.15m!._mi n.
/
6' (i8m)
FLOOR
Fig. 2 - Indoor unit clearance
A07891
CLEARANCES - OUTDOOR
IA
Air-inlet
----------- -+__L+ c
Air-outle
A07894
UNIT 12kin.(mm)
A 20 (508)
B 20 (508)
C 24 (610)
D 12 (305)
E 24 (610)
Fig. 3 - Outdoor Unit Clearance
