4

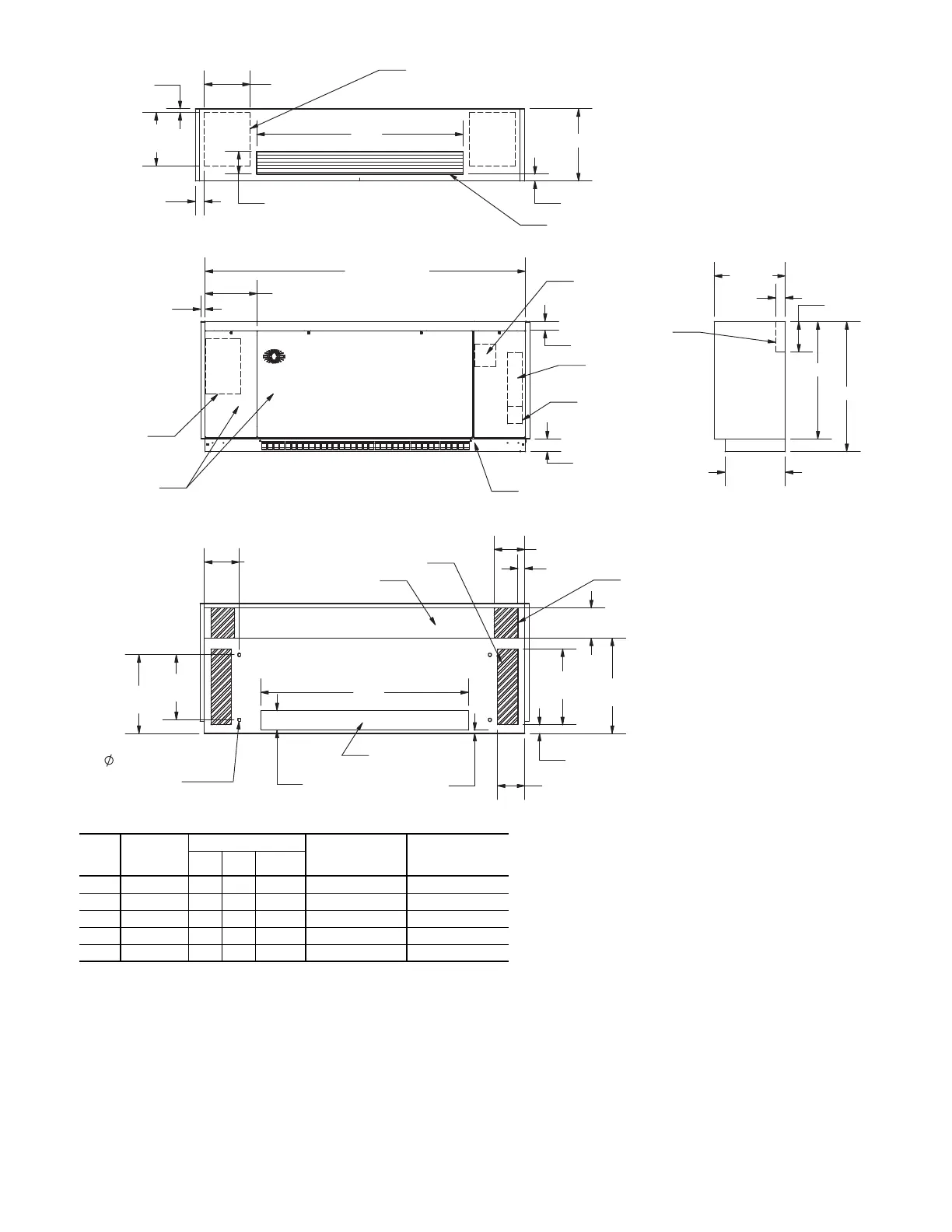

Fig. 3 — 40UV Dimensions — 16
5
/
8
-in. Deep Units (Standard)
NOTES:
1. All dimensions are in inches.
2. Dimension does not include end panels.
3. Three front panels provided for service access.
4. Motor and electrical power input box on right side of
unit. Box includes fan speed switch, On/Off switch and
non-fused disconnect switch.
5. Connection hand is determined by facing discharge of
unit.
UNIT
40UV
AIRFLOW
(cfm)
DIMENSIONS (in.) APPROXIMATE
SHIPPING
WEIGHT (lb)
APPROXIMATE
INSTALLED
WEIGHT (lb)
W1 W2 W3
050 500 50 24 16.60 330 315
075 750 62 36 31.67 400 380
100 1000 74 48 46.74 480 460
125 1250 86 60 61.81 590 570
150 1500 98 72 78.47 660 640
2.95
2.00
12.10 (TYP)
W1
(SEE NOTE 2)
1.00
(UNIT SHOWN
WITH 1.00" END
PA NE LS)
MOTOR
ELECTRICAL
BOX
RECESSED RETURN
AIR/KICK PANEL
FRONT VIEW
NON-FUSED
DISCONNECT
SWITCH
FRONT SERVICE
PANELS
(SEE NOTE 3)
UV OPEN
CONTR
OLLER
(OPTIONAL)
17.50
(TYP)
W2
.90
15.00
(TYP)
18.25
(TYP)
7.00 (TYP)
22.00
(TYP)
2.00
(TYP)
8.08
(TYP-SEE
NOTE 2)
7.04 (TYP)
1.54 (TYP)
6.75 (TYP)
.75
(MOUNTING
HOLES-TYP-
4 PLACES)
4.50
REAR VIEW
REMOVABLE PANEL
(
EACH END)
PIPE TUNNEL
OUTSIDE AIR
OPENING
PIPING ACCESS
OPENING
(EACH END)
30.00
27.30
13.90
16.63
7.02
2.40
RIGHT SIDE VIEW
PIPING
TUNNEL
1.70
16.63
W3
5.22
10.61
(TYP)
2.08
(TYP)
12.37
(TYP)
.78
(TYP)
TOP VIEW
BARSTOCK
DISCHARGE GRILLE
REMOVABLE BOTTOM PANEL
(EACH END)
