Carrier 45J - Page 6

6

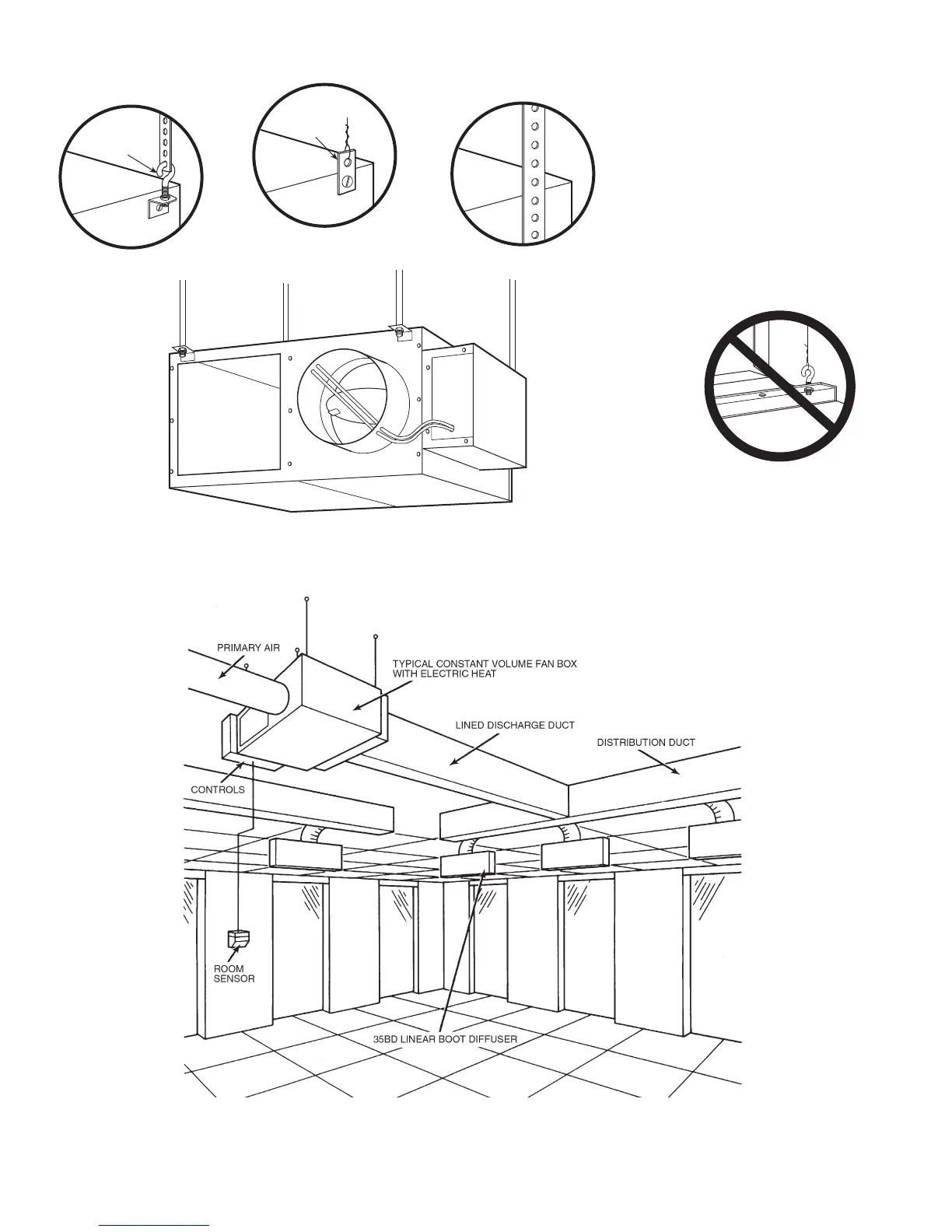

Fig. 6 — Typical Unit Suspension Methods (45K Shown)
Fig. 7 — Typical Perimeter Installation — Constant Volume Fan-Powered Box
FIELD-SUPPLIED
HANGER
BRACKET
OPTIONAL
ACCESSORY
HANGER
FIELD-SUPPLIED
HANGING STRAPS
DO NOT suspend unit
by trapeze hangers
that interfere with the
unit access panel.
