21

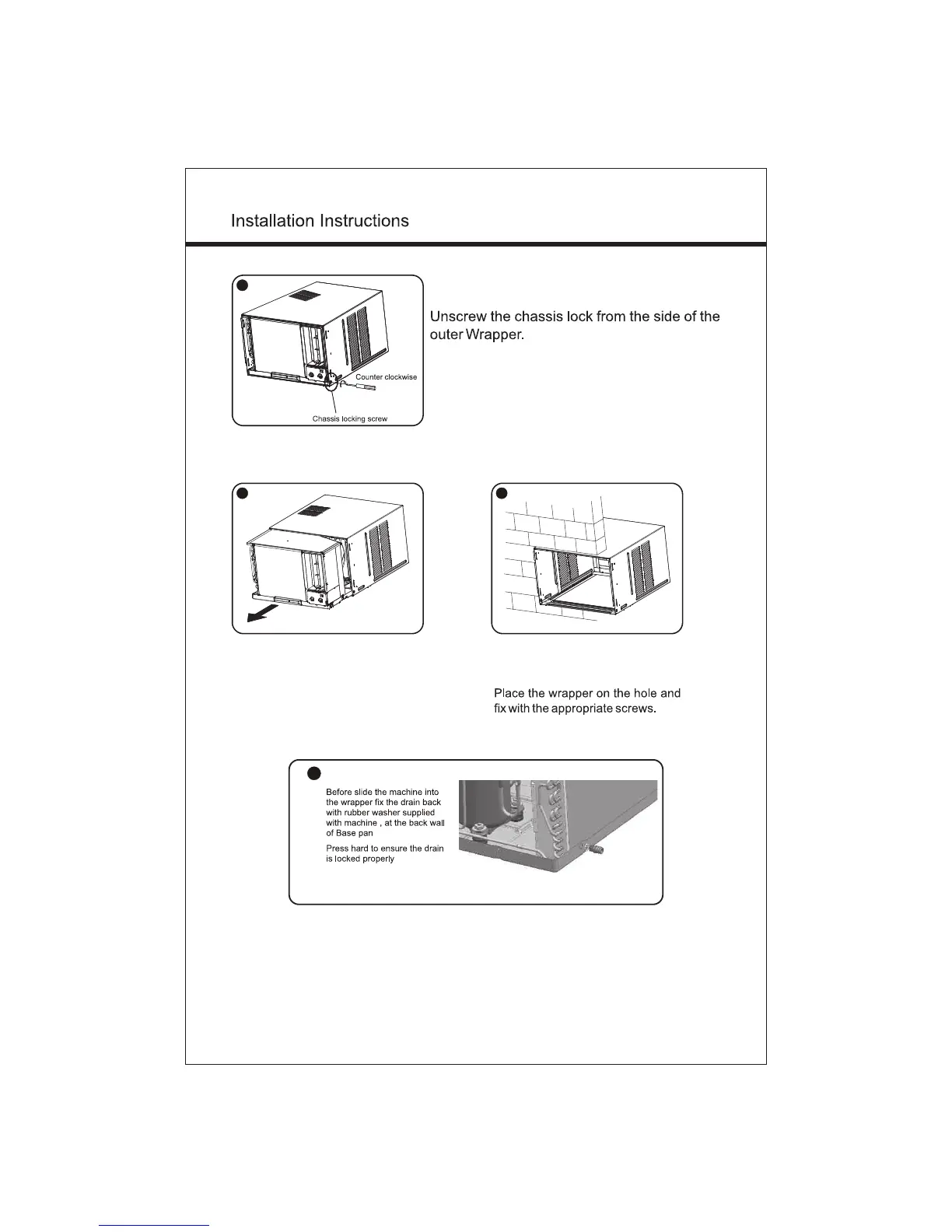

2. Slide the chassis out from the
outer wrapper.
1. Remove the chassis locking screw
Fixing of rear drain
4
2
3. Fix the outer wrapper at the
frame.
3
1
