FMA5L, FMA5X: Installation Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
7
A150161A

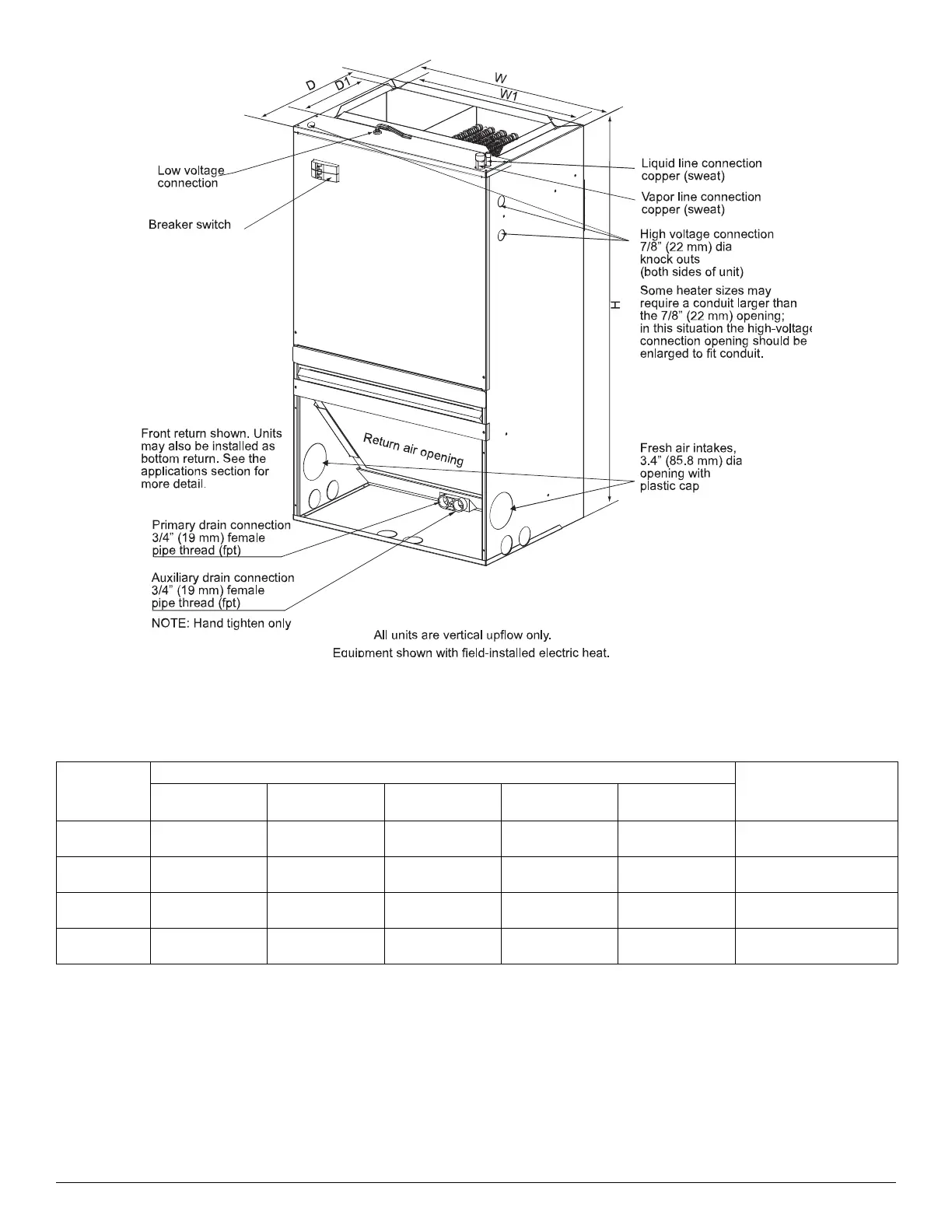

Fig. 3 – Dimensional Drawing with Circuit Breaker
This appliance uses R-454B refrigerant.
* For factory installed electric heater models, add 4lb (1.7kg) to the weight.
Table 1 – Dimensional Data
Model Size
Dimensions- In. (mm)
Unit Weight
Lb. (kg) *
Unit Height H
in. (mm)
Unit Width W
in. (mm)
Unit Width W1
in. (mm)
Unit Depth D
in. (mm)
Unit Depth D1
in. (mm)
18
36-1/2 (928) 20-1/2 (521) 17-2/5 (442) 15 (381) 9-1/2 (242)
PSC motor – 88 (40)
ECM motor – 84 (38)
24
36-1/2 (928) 20-1/2 (521) 17-2/5 (442) 15 (381) 9-1/2 (242)
PSC motor – 88 (40)
ECM motor – 84 (38)
30
39-1/2 (1004) 22 (559) 18-4/5 (478) 19 (483) 9-1/2 (242)
PSC motor – 106 (48)
ECM motor – 99 (45)
36
39-1/2 (1004) 22 (559) 18-4/5 (478) 19 (483) 9-1/2 (242)
PSC motor – 106 (48)
ECM motor – 99 (45)
