Carrier Infinity ICS 58MVC 100 Series User Manual

6
335122-201 REV. B LIT TOP
A08435

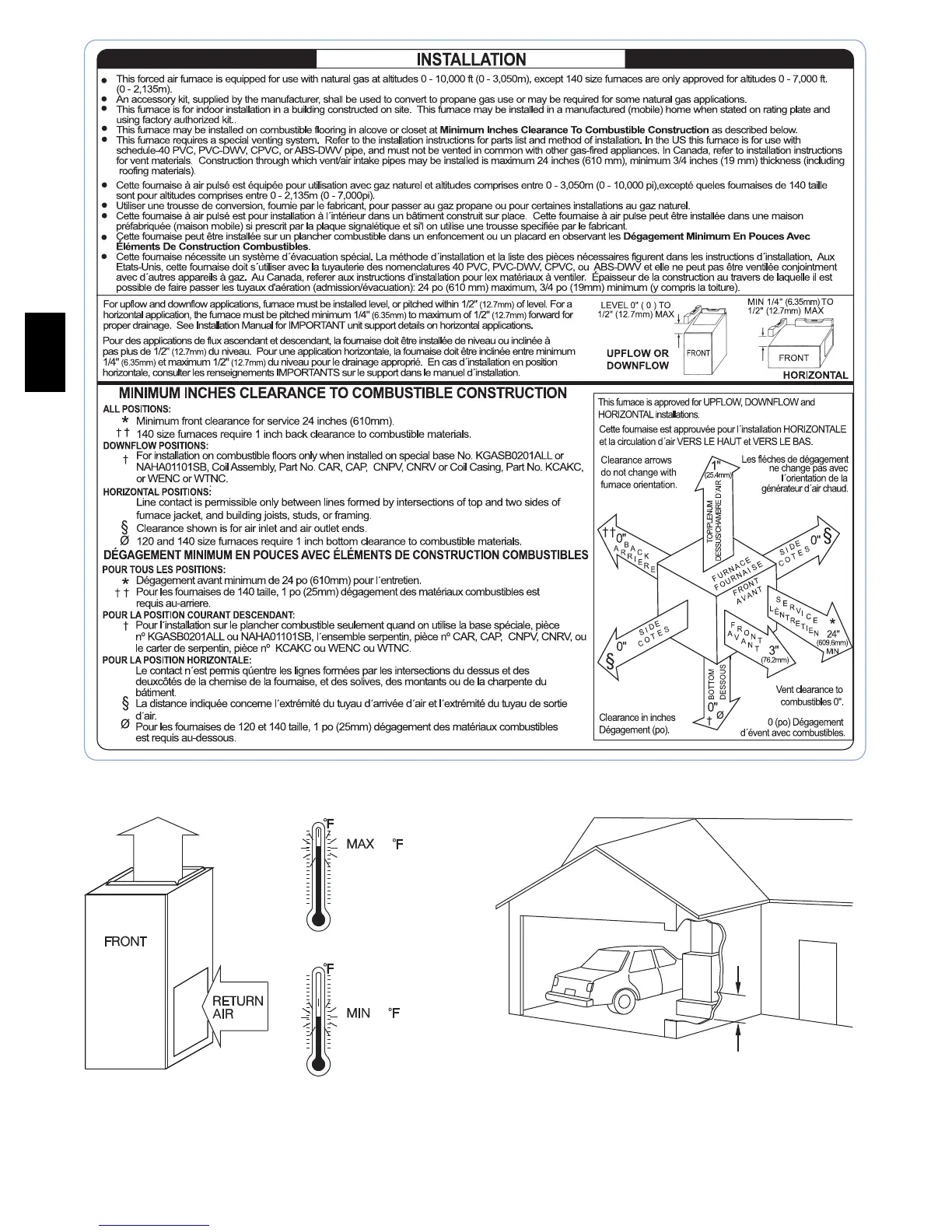

Fig. 3 -- Clearances to Combustibles
60
80 / 27 C
/ 16 C
A06745
Fig. 4 -- Return--Air Temperature
18-IN. (457.2 mm)
MINIMUM TO BURNERS
A93044
Fig. 5 -- Installation in a Garage
58MVC

Carrier Infinity ICS 58MVC 100 Series Specifications

General

Stages of Heating	Modulating
Blower Motor	Variable-speed ECM
Gas Valve	Modulating
Capacity	40, 000 to 120, 000 BTU/h
Model Number	58MVC
Category	Furnace
Brand	Carrier
Type	Gas furnace
Warranty	10-year parts limited warranty
Fuel Type	Natural gas
Series	Infinity ICS
