IM-40MBDQ-05 Specifications subject to change without notice. 5

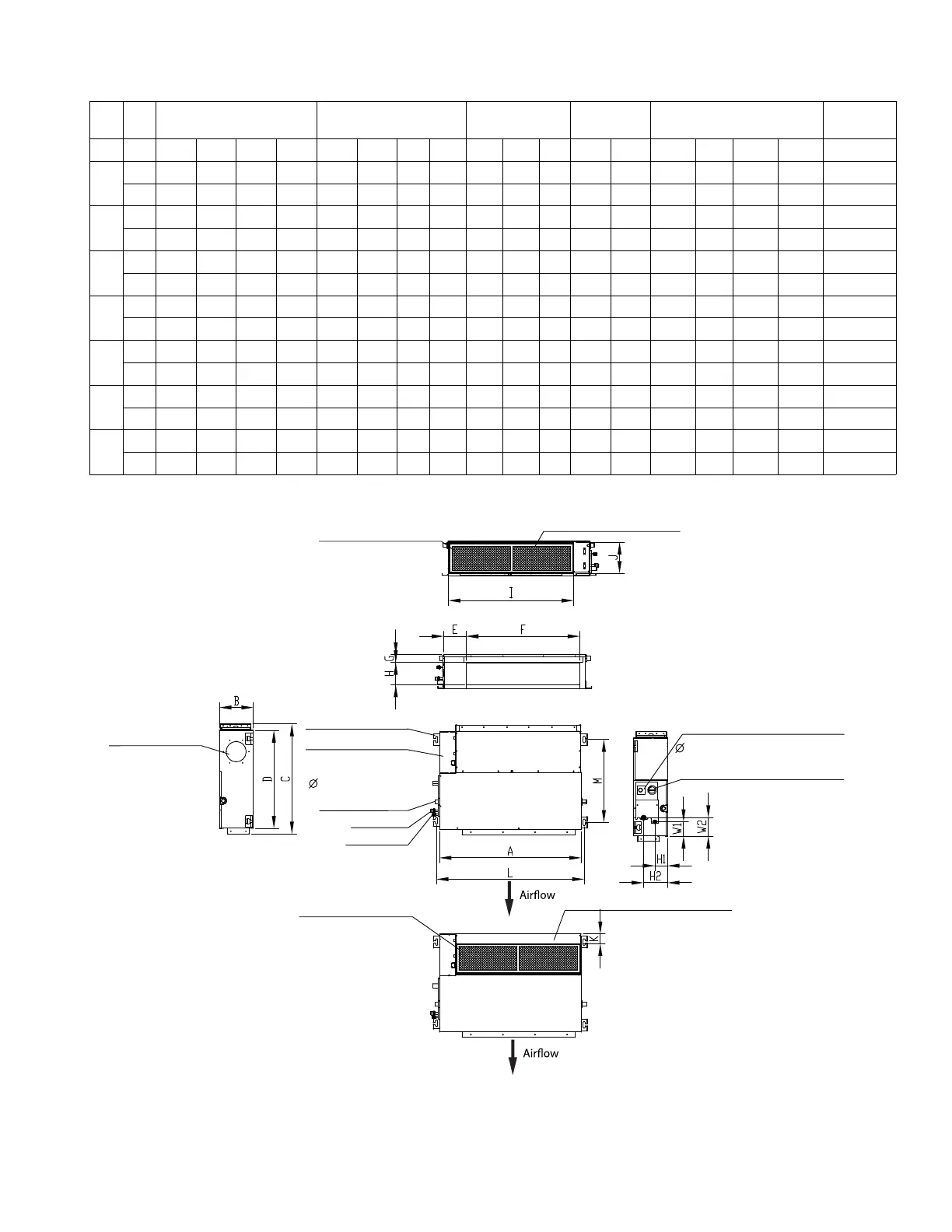

DIMENSIONS
Table 4 — Indoor Unit Dimensions
Fig. 5 — Indoor Unit Sizes 09K - 48K
AIR OUTLET
OPENING SIZE
AIR OUTLET
OPENING SIZE
AIR INLET
OPENING SIZE
HANGER
BRACKETS
REFRIGERANT
PIPE LOCATIONS
OPERATING
WEIGHT
LB (KG)
SizeUnitABCDEFGHIJKLMH1H2W1W2
9
In.
27.6 7.9 19.9 17.7 5.4 21.1 1.2 6 23.6 7.3 2 29.2 14.2 3.3 5.5 3.3 3.3 40
mm
700 200 506 450 137 537 30 152 599 186 50 741 360 84 140 84 84 18.1
12
In.
27.6 7.9 19.9 17.7 5.4 21.1 1.2 6 23.6 7.3 2 29.2 14.2 3.3 5.5 3.3 3.3 40
mm
700 200 506 450 137 537 30 152 599 186 50 741 360 84 140 84 84 18.1
18
In.
34.65 8.27 26.54 23.62 5.51 27.80 1.97 5.35 30.79 7.48 1.57 36.22 20 3.07 5.83 3.46 4.41 54
mm
880 210 674 600 140 706 50 136 782 190 40 920 508 78 148 88 112 24.5
24
In.
43.31 9.8 30.47 27.56 5.51 36.46 1.97 6.89 39.41 8.98 0.2 44.88 23.54 3.15 5.91 5.12 6.1 87
mm
1100 249 774 700 140 926 50 175 1001 228 5 1140 598 80 150 130 155 39.4
36
In.
53.54 9.8 30.47 27.56 5.51 46.69 1.97 6.89 49.65 8.98 0.2 55.12 23.54 3.15 5.91 5.12 6.1 106
mm
1360 249 774 700 140 1186 50 175 1261 228 5 1400 598 80 150 130 155 48.3
48
In.
47.24 11.81 34.41 31.5 4.84 41.1 1.97 8.94 43.35 11.02 0.2 48.82 27.44 3.15 5.91 7.28 8.27 120
mm
1200 300 874 800 123 1044 50 227 1101 280 5 1240 697 80 150 185 210 54.3
58
In.
55.12 17.32 33.78 30.31 4.17 46.81 1.1 15.16 46.54 11.02 1.57 56.57 27.56 8.15 10.75 5.67 5.67 163
mm
1400 440 858 770 106 1189 28 385 1182 280 40 1437 700 207 273 144 144 74
Air filter
Air inlet from rear side
Air inlet from bottom side
Air filter
Test mouth and Test cover
0.98in (25mm) Drain
connecting pipe (for lift pump)
Gas connection
Liquid connection
4-install hanger
Outside air intake
Electric control box
0.98in (25mm)
Drain pipe
Air inlet from bottom side
NOTE: Sizes 09K-48K blow-through systems
