Carrier Performance 50VL-A User Manual
5
of 1
of 1 rating
30 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
18
A11003
Fig.
12
Cont.
-
-

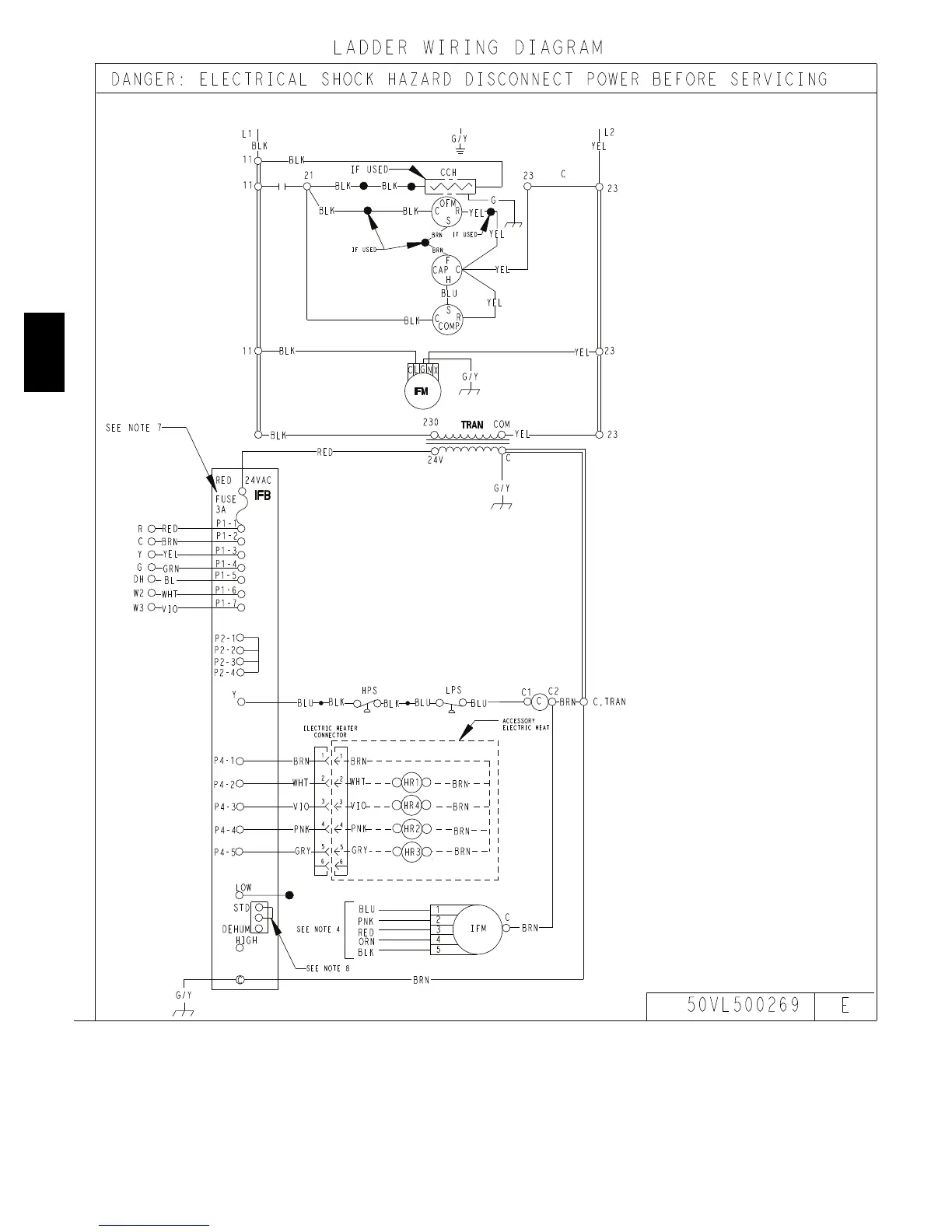

Ladder
W
ir
ing
Diagr
am
208/230-
-
1
-
-
60
50VL
-
-
A
17
19
Table of Contents
Table of Contents
1
Introduction
2
Receiving and Installation
2
Check Equipment
2
Identify Unit
2
Inspect Shipment
2
Provide Unit Support
2
Roof Curb
2
Slab Mount
2
Provide Clearances
7
Field Fabricate Ductwork
7
Rig and Place Unit
7
Inspection
7
Rigging/Lifting of Unit
7
Connect Condensate Drain
8
Install Duct Connections
8
Configuring Units for Downflow (Vertical) Discharge
8
Install Electrical Connections
9
High- -Voltage Connections
9
Special Procedures for 208V Operation
10
Control Voltage Connections
10
Standard Connection
10
Transformer Protection
10
Pre- -Start- -Up
12
Start- -Up
12
Check for Refrigerant Leaks
12
Start- -Up Adjustments
12
Checking Cooling Control Operation
12
Checking and Adjusting Refrigerant Charge
12
Indoor Airflow and Airflow Adjustments
13
Continuous Fan Operation
14
Cooling Sequence of Operation
14
Maintenance
24
Air Filter
24
Indoor Blower and Motor
24
Outdoor Coil, Indoor Coil, and Condensate Drain Pan
25
Outdoor Fan
25
Electrical Controls and Wiring
25
Refrigerant Circuit
26
Evaporator Airflow
26
Puron Items
26
Troubleshooting
27
Start- -Up Checklist
27
