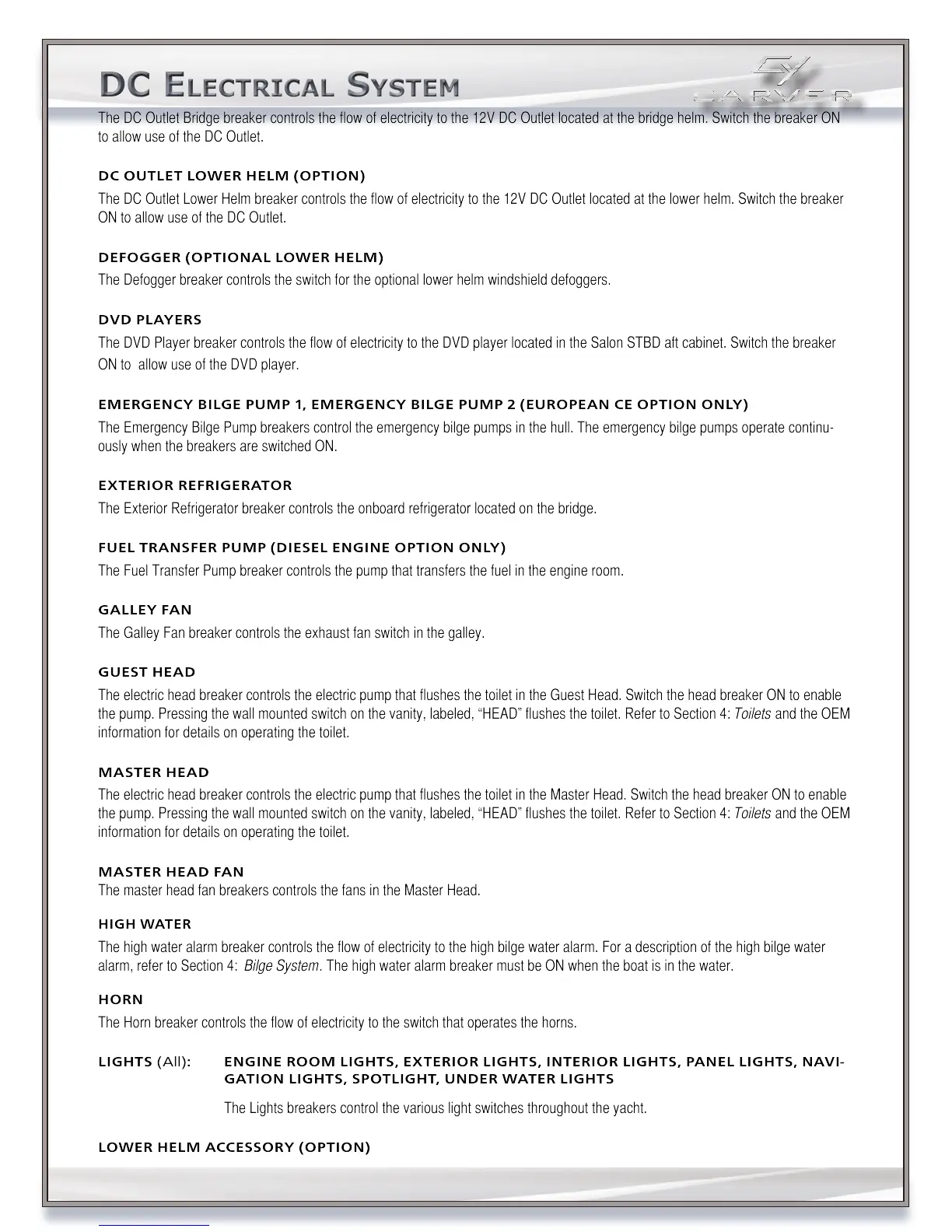

The DC Outlet Bridge breaker controls the flow of electricity to the 12V DC Outlet located at the bridge helm. Switch the breaker ON
to allow use of the DC Outlet.
DC Outlet lOwer helm (OptiOn)
The DC Outlet Lower Helm breaker controls the flow of electricity to the 12V DC Outlet located at the lower helm. Switch the breaker
ON to allow use of the DC Outlet.
DefOgger (OptiOnal lOwer helm)
The Defogger breaker controls the switch for the optional lower helm windshield defoggers.
DVD players
The DVD Player breaker controls the flow of electricity to the DVD player located in the Salon STBD aft cabinet. Switch the breaker
ON to allow use of the DVD player.
emergenCy Bilge pump 1, emergenCy Bilge pump 2 (eurOpean Ce OptiOn Only)
The Emergency Bilge Pump breakers control the emergency bilge pumps in the hull. The emergency bilge pumps operate continu-
ously when the breakers are switched ON.
exteriOr refrigeratOr
The Exterior Refrigerator breaker controls the onboard refrigerator located on the bridge.
fuel transfer pump (Diesel engine OptiOn Only)
The Fuel Transfer Pump breaker controls the pump that transfers the fuel in the engine room.
galley fan
The Galley Fan breaker controls the exhaust fan switch in the galley.
guest heaD
The electric head breaker controls the electric pump that flushes the toilet in the Guest Head. Switch the head breaker ON to enable
the pump. Pressing the wall mounted switch on the vanity, labeled, “HEAD” flushes the toilet. Refer to Section 4: Toilets and the OEM
information for details on operating the toilet.
master heaD
The electric head breaker controls the electric pump that flushes the toilet in the Master Head. Switch the head breaker ON to enable
the pump. Pressing the wall mounted switch on the vanity, labeled, “HEAD” flushes the toilet. Refer to Section 4: Toilets and the OEM
information for details on operating the toilet.
master heaD fan
The master head fan breakers controls the fans in the Master Head.
high water
The high water alarm breaker controls the flow of electricity to the high bilge water alarm. For a description of the high bilge water
alarm, refer to Section 4: Bilge System. The high water alarm breaker must be ON when the boat is in the water.
hOrn
The Horn breaker controls the flow of electricity to the switch that operates the horns.
lights (all): engine rOOm lights, exteriOr lights, interiOr lights, panel lights, naVi-
gatiOn lights, spOtlight, unDer water lights
The Lights breakers control the various light switches throughout the yacht.
lOwer helm aCCessOry (OptiOn)
The DC Outlet Bridge breaker controls the flow of electricity to the 12V DC Outlet located at the bridge helm. Switch the breaker ON
to allow use of the DC Outlet.
DC Outlet lOwer helm (OptiOn)
The DC Outlet Lower Helm breaker controls the flow of electricity to the 12V DC Outlet located at the lower helm. Switch the breaker
ON to allow use of the DC Outlet.
DefOgger (OptiOnal lOwer helm)
The Defogger breaker controls the switch for the optional lower helm windshield defoggers.
DVD players
The DVD Player breaker controls the flow of electricity to the DVD player located in the Salon STBD aft cabinet. Switch the breaker
ON to allow use of the DVD player.
emergenCy Bilge pump 1, emergenCy Bilge pump 2 (eurOpean Ce OptiOn Only)
The Emergency Bilge Pump breakers control the emergency bilge pumps in the hull. The emergency bilge pumps operate continu-
ously when the breakers are switched ON.
exteriOr refrigeratOr
The Exterior Refrigerator breaker controls the onboard refrigerator located on the bridge.
fuel transfer pump (Diesel engine OptiOn Only)
The Fuel Transfer Pump breaker controls the pump that transfers the fuel in the engine room.
galley fan
The Galley Fan breaker controls the exhaust fan switch in the galley.
guest heaD
The electric head breaker controls the electric pump that flushes the toilet in the Guest Head. Switch the head breaker ON to enable
the pump. Pressing the wall mounted switch on the vanity, labeled, “HEAD” flushes the toilet. Refer to Section 4: Toilets and the OEM
information for details on operating the toilet.
master heaD
The electric head breaker controls the electric pump that flushes the toilet in the Master Head. Switch the head breaker ON to enable
the pump. Pressing the wall mounted switch on the vanity, labeled, “HEAD” flushes the toilet. Refer to Section 4: Toilets and the OEM
information for details on operating the toilet.
master heaD fan
The master head fan breakers controls the fans in the Master Head.
high water
The high water alarm breaker controls the flow of electricity to the high bilge water alarm. For a description of the high bilge water
alarm, refer to Section 4: Bilge System. The high water alarm breaker must be ON when the boat is in the water.
hOrn
The Horn breaker controls the flow of electricity to the switch that operates the horns.
lights (all): engine rOOm lights, exteriOr lights, interiOr lights, panel lights, naVi-
gatiOn lights, spOtlight, unDer water lights
The Lights breakers control the various light switches throughout the yacht.
lOwer helm aCCessOry (OptiOn)
