Carver C40 - Page 68

EnginE ROOm
Plenum “T” Divider
16 K Webasto Air Conditioning Unit
5/8” A/C Drainage Hose
FORwaRd
systEms ROOm
A/C Water Pick-up Seacock
1” Water Hose
Seawater Strainer
Seawater Pump
ViP
statEROOm
gallEy
ViP hEad
EnginE ROOm
EnginE ROOm
5/8” A/C Drainage Hose (to Drainage Pan)
16 K Webasto Air Conditioning Unit
5/8” A/C Drainage Hose (to Thru-Hull)
Thru-Hull Access Location
5/8” Thru-Hull (Overboard Drainage)
Seawater Pump
5/8” Water Hose - A/C Condensate Drainage
5/8” Thru-Hull
Gray Water Drainage Pan
Drainage Pan Access
aC COndEnsatE
gallEy
16k Air Conditioning Unit
Galley Hatch Access Hole
Lower Level Hatch Access
Door

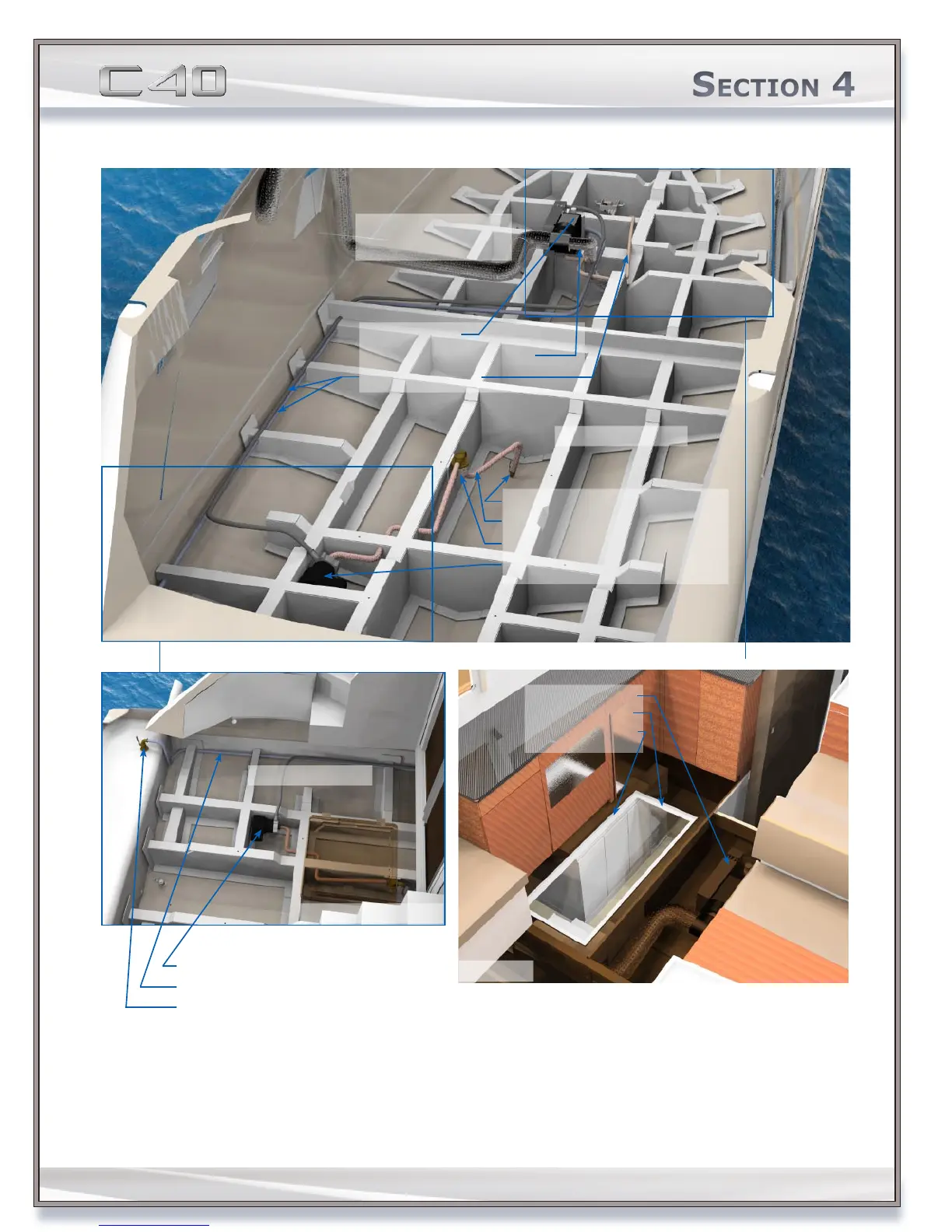

st a n d a r d air Co n d i t i o n i n g sU p p L Y a n d dr a i n a g e
standaRd shown - high VeloCity similaR
see “gRay wateR dRainage” foR aiR Conditioning dRainage
illustRations
