LHR Technologies, Inc. CarveWright™ System (Rev 1.39) 03/02/09 40
shank. Remove the two setscrews from the adapter body and de-grease
both the setscrews and threaded holes. This can be done using rubbing
alcohol or a product such as WD40. Thoroughly dry the parts. Apply a
drop of permanent thread cement on each setscrew to prevent them from
loosening and start the treads. Insert the bit into the bit adapter and
position the bit so that the setscrews align to the flats. Tighten setscrews
with supplied Allen wrench and always make sure the setscrews are tight.

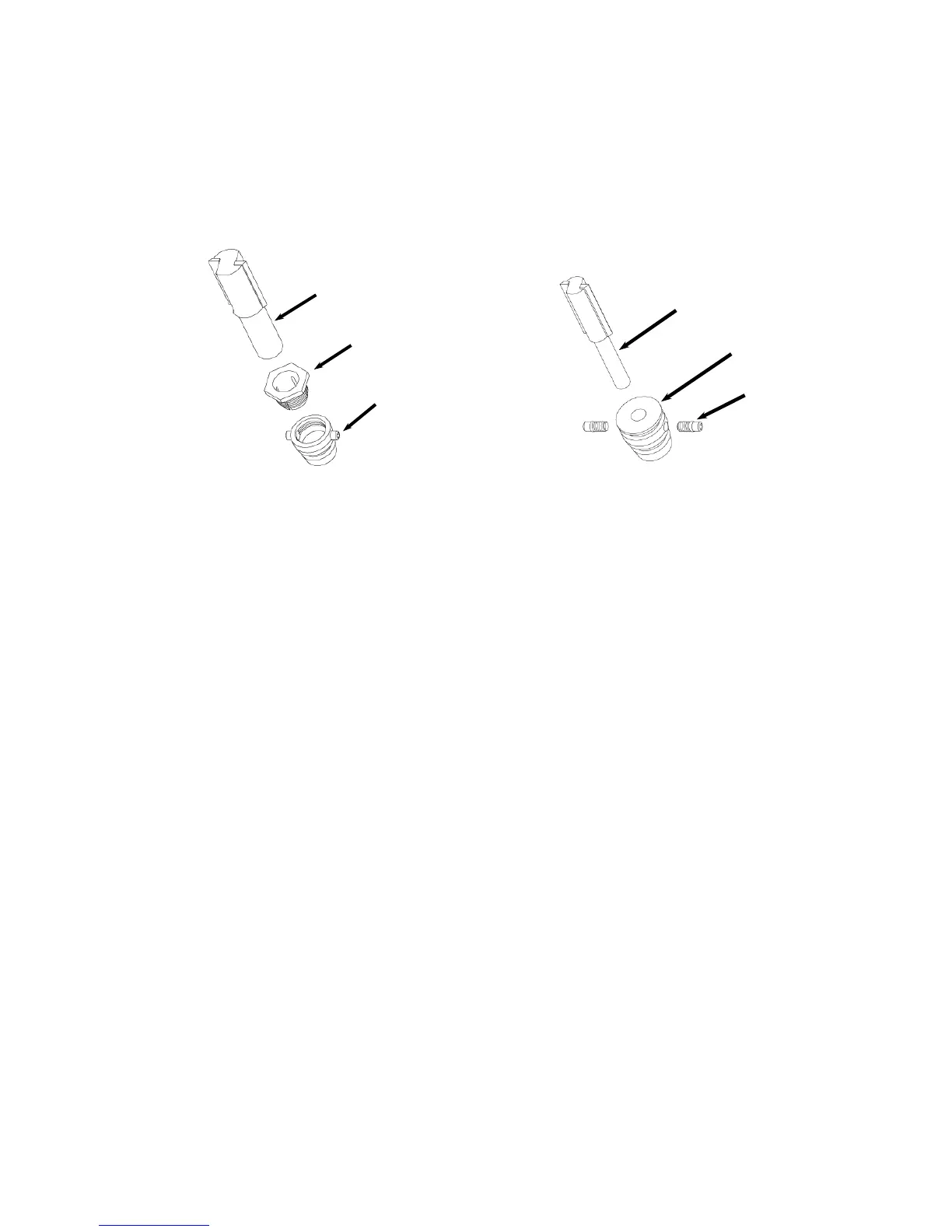

FIGURE 30: COLLET ARRANGEMENT FOR
1/4” SHANK BITS
FIGURE 29: COLLET ARRANGEMENT
FOR
1/2” SHANK BITS
Collet
Bit Adapter
Bit
Set Screw
Bit
Bit Adapter
