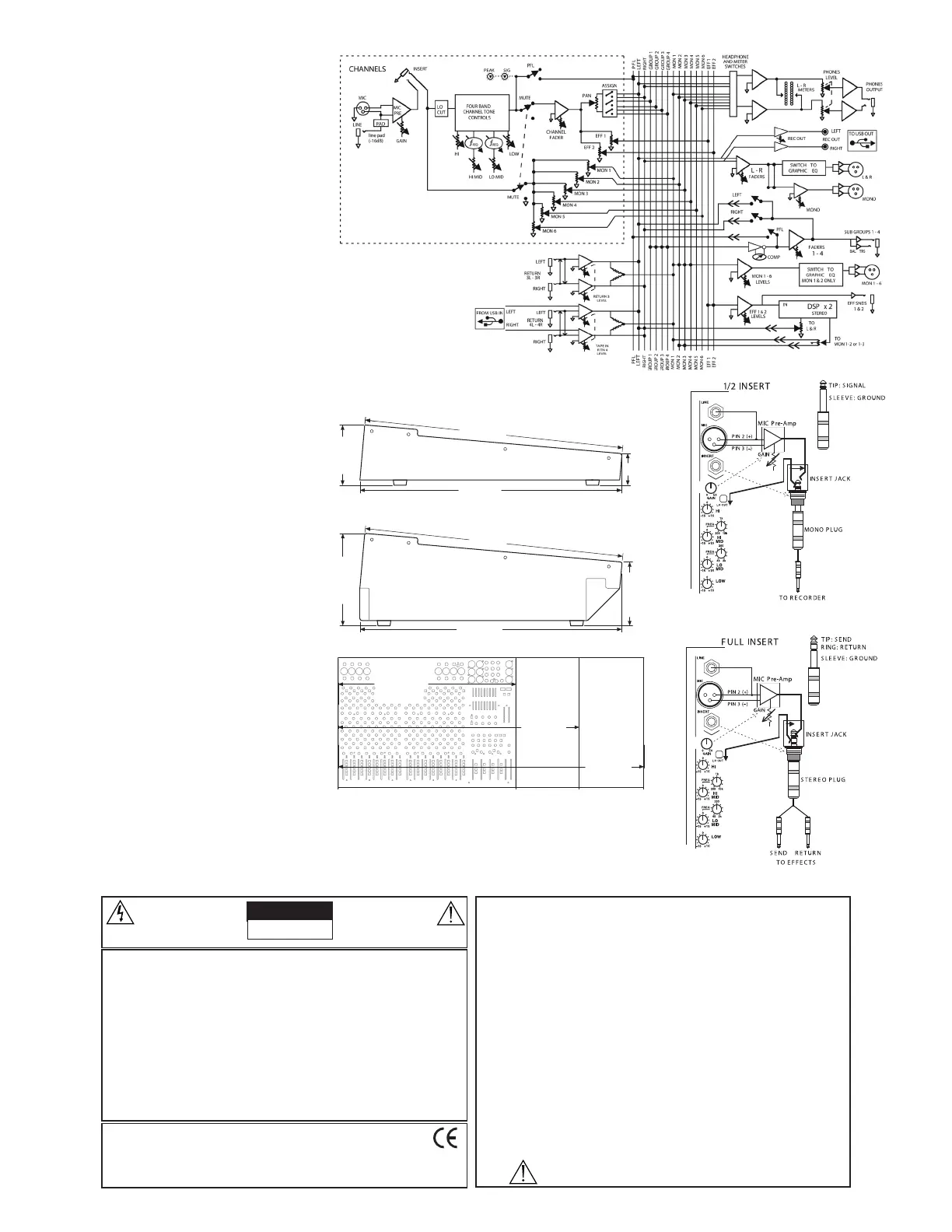

SPECIFICATIONS: Concert 48 Series
Freq. response: 20Hz-20kHz +/-0.5dB
THD distortion: .01% @ 20Hz-20kHz
E I N:
-117 dBu
S/N Ratio 90 dB
Dynamic Range: 104 dB
Mic Gain: 52 dB
Line Gain: 30 dB
Total Gain: 72 dB (balanced)
Max Output: +28 dBu
Power Requirement
90 to 250VAC 50-60Hz
C1648P Power Amp Specs:
4 ohms: 500w x 4 (2000w)
8 ohms: 300w x 4 (1200w)
Freq. Resp.: ±0.5dB, 20Hz-20kHz
±1.5dB, 10Hz-25kHz
THD: (50% output) 0.09%
Output Mode: 95% Efficient Class D
Protection Circuits: Soft Start, Short Circuit,
No Load, SpeakerGuard,
Thermal Shut-Off, Protect
and Clip Indicators,
Amp Peak Limiters
Power Requirement C1648P:
USA 120VAC~60HZ
EU 240VAC~50Hz
Dimensions:
C1648:
22.2”W x 16.3”D x 3.75”H wt: 18.1 lbs
563mm x 415mm x 95mm, wt: 8.2kg
C2448:
30.1”W x 16.3”D x 3.75”H wt: 24.5 lbs
763mm x 415mm x 95mm, wt: 11.1kg
C3248:
38.1”W x 16.3”D x 3.75”H, wt: 29.5 lbs
967mm x 415mm x 95mm,wt: 13.4 kg
C1648P:
22.2”W x 16.3”D x 5.75”H wt: 25.1 lbs
563mm x 415mm x 146mm, wt: 11.4kg
C1648, C1648P
563.15mm.
22.170in.
FRAME WIDTH:
FRAME PROFILES:
C1648P
C1648, C2448, C3248
414.35mm.
16.315in.
414.35mm.
16.315in.
409.60mm.
16.125in.
95.25mm.
3.750in.
145.85mm.
5.745in.
50.35mm.
1.980in.
145.85mm.
5.745in.
409.60mm.
16.125in.
C2448
762.55mm.
30.020in.
C3248
967.00mm.
38.070in.
LIMITED WARRANTY
Your Carvin Audio mixer is guaranteed against failure for 1 YEAR unless otherwise stated. Carvin Corp.will
service and supply all parts at no charge to the customer providing the unit is under warranty. Shipping costs
are the responsibility of the customer. CARVIN CORP. DOES NOT PAY FOR PARTS OR SERVICING OTHER
THAN OUR OWN. A COPY OF THE ORIGINAL INVOICE IS REQUIRED TO VERIFY YOUR WARRANTY.
Carvin Corp. assumes no responsibility for horn drivers or speakers damaged by this unit. This warranty does
not cover, and no liability is assumed, for damage due to: natural disasters, accidents, abuse, loss of parts, lack
of reasonable care, incorrect use, or failure to follow instructions. This warranty is in lieu of all other warranties,
expressed or implied. No representative or person is authorized to represent or assume for Carvin Corp. any
liability in connection with the sale or servicing of Carvin Audio products.
CARVIN CORP. SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
MAINTAINING YOUR EQUIPMENT
Avoid spilling liquids or allowing any other foreign matter inside the unit. The panel of your unit can be wiped
with a dry or slightly damp cloth in order to remove dust and bring back the new look. As with all pro gear,
avoid prolonged use in caustic environments (salt air). When used in such an environment, be sure the
amplifier is adequately protected.
SERVICE:
In the USA, please go to www.carvinaudio.com
under “SUPPORT” click on “REPAIR INFORMATION”
Outside the USA: contact your dealer or go to http://www.carvinaudio.com
click on “DEALERS” for your nearest service center.
Include a written description of the problem with serial number and date of purchase.
SAFETY INSTRUCTIONS (EUROPEAN)
The conductors in the AC power cord are colored in accordance with the following code.
GREEN & YELLOW—Earth BLUE—Neutral BROWN—Live
U.K. MAIN PLUG WARNING: A molded main plug that has been cut off from the cord is unsafe. NEVER
UNDER ANY CIRCUMSTANCES SHOULD YOU INSERT A DAMAGED OR CUT MAIN PLUG INTO A POWER SOCKET.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT! FOR YOUR PROTECTION, PLEASE READ THE FOLLOWING:
WATER AND MOISTURE: Appliance should not be used near water (near a bathtub, washbowl, sink, laundry
tub, in a wet basement, near a swimming pool, etc). Care should be taken so that objects do not fall and liquids
are not spilled into the enclosure through openings.
POWER SOURCES: The product should be connected to a power supply only of the type described in the
operating instructions or as marked on the appliance.
GROUNDING OR POLARIZATION: Precautions should be taken so that the grounding or polarization
is not defeated.
POWER CORD PROTECTION: Power supply cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs.
SERVICING: The user should not attempt to service the appliance beyond that described in the operating
instructions. All other servicing should be referred to qualified service personnel.
FUSING: If your unit is equipped with a fuse receptacle, replace only with the same type fuse. Refer to
replacement text on the unit for correct fuse type.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL!
This symbol is intended to alert the user
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.
This symbol is intended to alert the user
to the presence of important operating
-
tions in the literature accompanying
the appliance.
76-02448E 010417
