CARVIN LS1002 User Manual

20Hz 1 kHz 20 kHz
ATTENUATION dB
Low Frequency Mid Frequency High Frequency
Low
Pass
Filter
Band
Pass
Filter
High
Pass
Filter
LS1503A 300 Watts
75 Watts
50 Watts
LS1523A 700 Watts
120 Watts
80 Watts
1. inpUt/tHRU oUtpUt Use the balanced XLR or 1/4” connectors
featured on the rear control panel. Using a balanced source will reduce noise which
may be picked up by the cable. You may DAISY-CHAIN as many APS systems as
you wish. All connectors are wired in parallel.
2. aps eQUaLiZation The APS powered loudspeakers offer a by pass-
able 3-band mid sweep equalizer for custom tuning to the acoustical environment.
The EQ system is engineered specifically for the APS, featuring a boost and cut range
of ±6dB to prevent radical adjustments that could otherwise compromise the sound
of the system. The Mid-band sweep is particularly useful for enhancing critical mid
range frequencies for stage monitoring or for cutting certain frequencies to compen-
sate for room resonances. Press the “EQ IN” switch to activate the equalizer. The
BLUE LED displays when the EQ is active.
3. LeveL contRoL The LEVEL control adjusts the output volume of the
APS. Start by setting the LEVEL at “0”. Weak input signals can be boosted by set-
ting the LEVEL at “+6”. Strong signals can be reduced by turning the LEVEL toward
“-12”. The RED LED will flash if the internal power amps start to clip. Turn the
LEVEL control down to avoid clipping. Damage to the drivers can result from operat-
ing at a level where the RED CLIP LED is constantly illuminated.
4. poWeR/pRotect/cLip inDicatoR Power up your audio source
first, then turn on the APS with the power switch. When the system is active, the
LED will indicate GREEN. When shutting down turn off the APS first, then turn off
the mixer. If any of the power amps are clipping, the LED will indicate RED and you
should reduce the output level. If the system should go into protect mode, the LED will
indicate YELLOW and the power amps will shut off. This may occur if; a) the system
is overheated due to clipping the power amps for an extended period of time, b) one of
the internal drivers developed a short or c) the power amps require service.
5. poWeR Push this switch to the UP position to apply power to the unit. The
POWER LED will light to show the system is on.
6. ac poWeR Use a standard grounded AC cord. Whenever possible, use
dedicated circuits for powered speakers. The powered speakers are available in
either 120V or 240V models.
7. cRossoveR FReQUency sWitcH The CROSSOVER FREQUENCY
switch selects the crossover point for the APS. The 120Hz out setting is generally
used with small to mid sized speakers in your setup. Almost all 12” and 15” woofers
will benefit from the 120Hz setting. The 80Hz (switch in) setting is generally used
with larger 18” woofers.

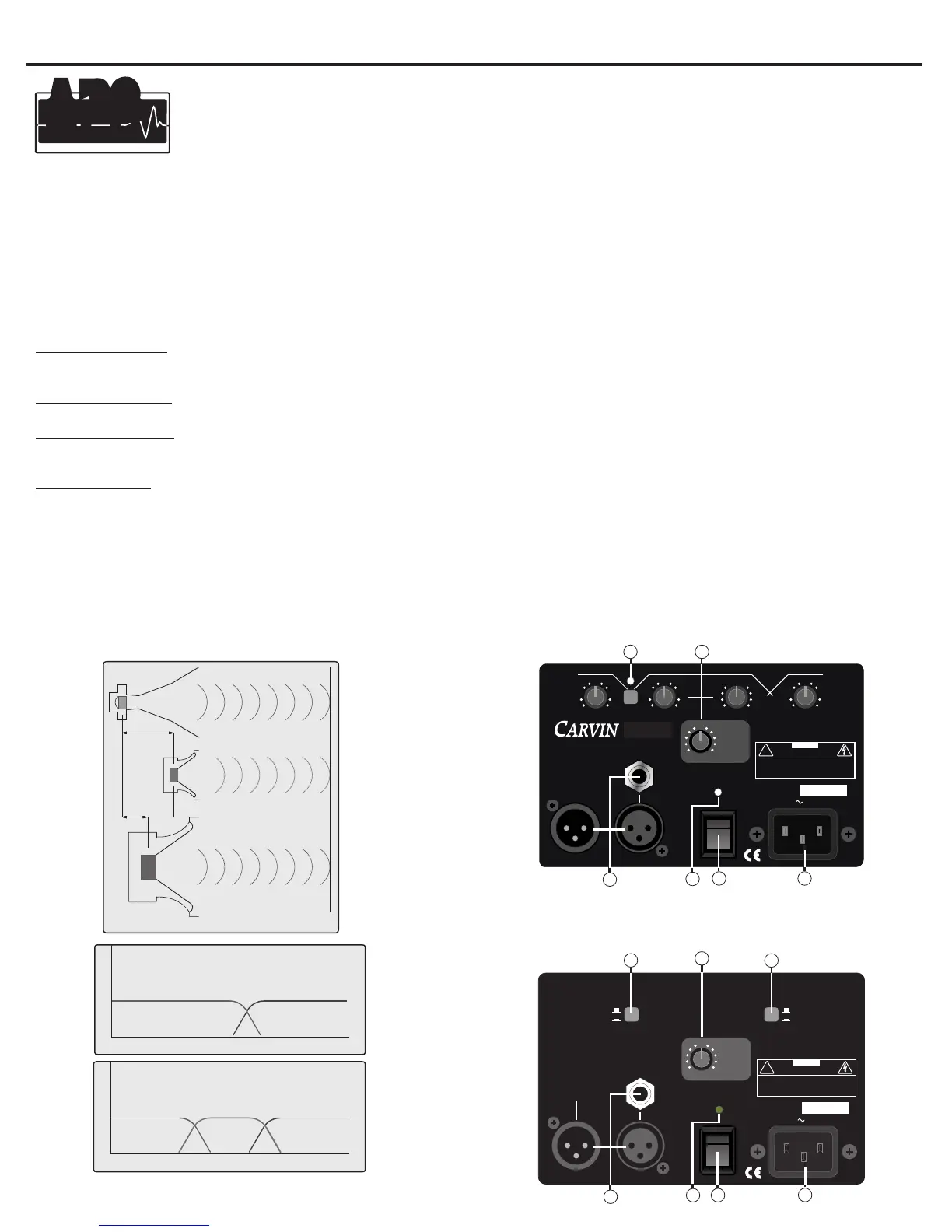

aps Bi-aMp/tRi-aMp ReaR paneL:
CAUTION ± TO PREVENT ELECTRICAL SHOCK DO NOT DEFEAT THE
SAFETY GROUND ON THE POWER CORD. DO NOT REMOVE COVER.
NO USER SERVICEABLE PARTS INSIDE. WARNING ± TO PREVENT FIRE
OR SHOCK HAZARD DO NOT EXPOSE TO RAIN OR MOISTURE. REFER
SERVICING TO QUALIFIED PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
!
300VA120VAC 60Hz
AUS
MADE IN THE
Serial No.
TIME-ALIGNED BI-AMP SYSTEM
LOW MID SWEEP HIGH
0
+6-12
00
+6-6
1kHz
5kHz100Hz
300 W RMS
MID
+3-3
LEVEL
0
+6-6
+3-3
0
+6-6
+3-3
INPUTTHRU OUTPUT
CLIP
RED
PROTECT
YELLOW
POWER
GREEN
EQ IN
742A
3
1
4
5 6
2
LEVEL
LS1801A
INPUTTHRU OUTPUT
ACTIVE SUBWOOFER SYSTEM
CLIP
RED
PROTECT
YELLOW
POWER
GREEN
FREQUENCY
OUTPUT
CROSSOVER
BYPASS
CROSSOVER 120Hz
80Hz
700W RMS
HI PASS
CAUTION ± TO PREVENT ELECTRICAL SHOCK DO NOT DEFEAT THE
SAFETY GROUND ON THE POWER CORD. DO NOT REMOVE COVER.
NO USER SERVICEABLE PARTS INSIDE. WARNING ± TO PREVENT FIRE
OR SHOCK HAZARD DO NOT EXPOSE TO RAIN OR MOISTURE. REFER
SERVICING TO QUALIFIED PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
!
700VA120VAC 60Hz
Serial No.
0
+6-12
AUS
MADE IN THE
1588A
CAUTION ± TO PREVENT ELECTRICAL SHOCK DO NOT DEFEAT THE
SAFETY GROUND ON THE POWER CORD. DO NOT REMOVE COVER.
NO USER SERVICEABLE PARTS INSIDE. WARNING ± TO PREVENT FIRE
OR SHOCK HAZARD DO NOT EXPOSE TO RAIN OR MOISTURE. REFER
SERVICING TO QUALIFIED PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
!
900VA120VAC 60Hz
AUS
MADE IN THE
Serial No.
TIME-ALIGNED TRIAMPED SYSTEM
LOW MID SWEEP HIGH
0
+6-12
00
+6-6
1kHz
5kHz100Hz
900W RMS
MID
+3-3
LEVEL
0
+6-6
+3-3
0
+6-6
+3-3
INPUTTHRU OUTPUT
CLIP
RED
PROTECT
YELLOW
POWER
GREEN
EQ IN
1
4
CAUTION ± TO PREVENT ELECTRICAL SHOCK DO NOT DEFEAT THE
SAFETY GROUND ON THE POWER CORD. DO NOT REMOVE COVER.
NO USER SERVICEABLE PARTS INSIDE. WARNING ± TO PREVENT FIRE
OR SHOCK HAZARD DO NOT EXPOSE TO RAIN OR MOISTURE. REFER
SERVICING TO QUALIFIED PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
!
300VA120VAC 60Hz
AUS
MADE IN THE
Serial No.
TIME-ALIGNED BI-AMP SYSTEM
LOW MID SWEEP HIGH
0
+6-12
00
+6-6
1kHz
5kHz100Hz
300 W RMS
MID
+3-3
LEVEL
0
+6-6
+3-3
0
+6-6
+3-3
INPUTTHRU OUTPUT
CLIP
RED
PROTECT
YELLOW
POWER
GREEN
EQ IN
742A
5
6
APS HOOK-UP
8
3
7
Ls1801 sUBWooFeR
8. cRossoveR Bypass sWitcH
The crossover bypass switch bypasses the
internal active crossover allowing the use of an outboard active crossover.
APS Powered Speakers
TIME IN DISTANCE + CROSSOVER PHASE SHIFT
*
*
*
APS POWER AMP SPECS:
2-way Bi-amped – LS1502a
350w RMS (Hi Freq: 50w @ 16 ohms, Lo Freq.
300w @ 8 ohms)
3-way Tri-amped – LS1503a
425w RMS (Hi Freq: 50w @ 16ohms, Mid Freq: 75w @ 16 ohms, Lo Freq. 300w @ 8 ohms)
3-way Tri-amped – LS1523a
900w RMS (Hi Freq: 80w @ 16 ohms, Mid Freq: 120w
@ 8 ohms, Lo Freq. 700w @ 4 ohms)
SuB woofer
– LS1801a 700w RMS @ 4 ohms
aLL modeLS:
FREQ. RESPONSE: 20 to 20kHz, THD less than .05% @ 90%, .1% at full power,
SLEW RATE: 50V/µs, ACTIVE EQ: ± 6 dB @ 100 Hz, 100 Hz to 5 kHz mid sweep, 10kHz, EQ bypass
switch, (SUB WOOFER: 24dB/Octave @ 80 & 120 Hz) • Relay muting and Speaker Guard™ pro-
tection, Peak and protection & power on indicators, On-Off power switch, Power Req. 120VAC
60 Hz . 240 AC/50Hz model available
Bi amped or Tri amped – active crossovers and power amps
All loudspeaker components are Time-Aligned
for greater intelligibility and clarity
Figure 2
Carvin’s APS (Active Powered Systems) amplification packs take the guesswork out
of selecting the ideal power source to drive your loudspeakers. With bi-amped and
tri-amped models designed to handle the most demanding applications, the APS am-
plifiers are perfectly mated with—the LS1502A, LS1503A, and LS1523A—creating op-
timally designed powered loudspeaker systems that are ready for anything you throw
at them. There’s even one APS power pack created specifically to generate the bone
crushing impact of our LS1801A subwoofer. APS-based LS loudspeaker systems make
setup and operation easier as well, with less gear to haul. Feed your mixer’s output
directly to these loudspeaker systems, and you’re ready to rock!
ACTIVE POWERED SYSTEMS
APS
ACTIVE POWERED SYSTEMS
APS
20Hz 1 kHz 20 kHz
ATTENUATION dB
Low Frequency High Frequency
Low
Pass
Filter
High
Pass
Filter
300 Watts
LS1502A
50 Watts
