5. POWERING YOUR STAGEMATE™
AC POWER CORD
A detachable AC POWER CORD supplied is designed to operate and charge your
StageMate™. Securely insert the cord. Use only a grounded “3” prong” power source.
No attempt should ever be made to defeat or use the amp without the ground connected.
POWER SWITCH
The power switch is to be utilized as the master ON/OFF switch. To charge the internal
battery, plug the unit in and turn this switch “ON”.
CHARGING THE INTERNAL BATTERY
While using the StageMate™ on AC power, the battery is being charged. To charge while
not using be sure to leave the power switch in the “ON” position and turn the MASTER
LEVEL to 0. You may leave your StageMate™ on overnight. However, it is not recommended
to keep on for extended periods. The power LED indicates when the StageMate’s power
is on or charging. For battery operation, be sure that the battery is fully charged. It can
take up to 8 hours to recharge a dead battery (with dual batteries up to 16 hours). The main-
tenance-free lead acid battery does not have memory conditioning. However, if the bat-
tery is kept discharged, it can shorten the battery’s life.
BATTERY STATUS LED
The BATTERY STATUS LED is a two color LED indicating the battery voltage level. When
the LED is “GREEN”, the battery is at or very near full charge. When the LED is “off” the
battery has a normal charge. When the LED is “RED” the battery will need to be recharged.
Reducing volume levels will extend battery time. The unit may become intermittent in oper-
ation when the battery has a low charge.
12V DC JACK
The 12V jack is for connecting an external 12 volt DC power source such as an automo-
bile cigarette lighter to power and partially recharge the StageMate™. We recommend Carvin’s
C25 12V 25 ft cable adapter. Other adapters may be used, however, they must be at least
16 gauge wire and fused at 10 amps. Your car’s 12 volt battery will not fully charge the
StageMate™ unless you are running your engine–charging at 14 volts. Do not use this jack
if the DC voltage is over 14 volts. Do not use a “wall-wart” type supply to charge the
StageMate™. Instead use the StageMate's own internal charger by plugging the StageMate™
into AC power and turning the power switch “ON”.
AC FUSE REPLACEMENT
To check or replace the fuse, always turn off the power switch. To examine the fuse, remove
the power cord & place a screwdriver under the “FUSE” cap and pull the fuse holder out.
The fuse type is a 250V Slow Blow SB 5 x 20mm rated at 2A for 120V. Only a SLOW BLOW
(SB) type fuse will work. The fuse holder has room to store a spare fuse.

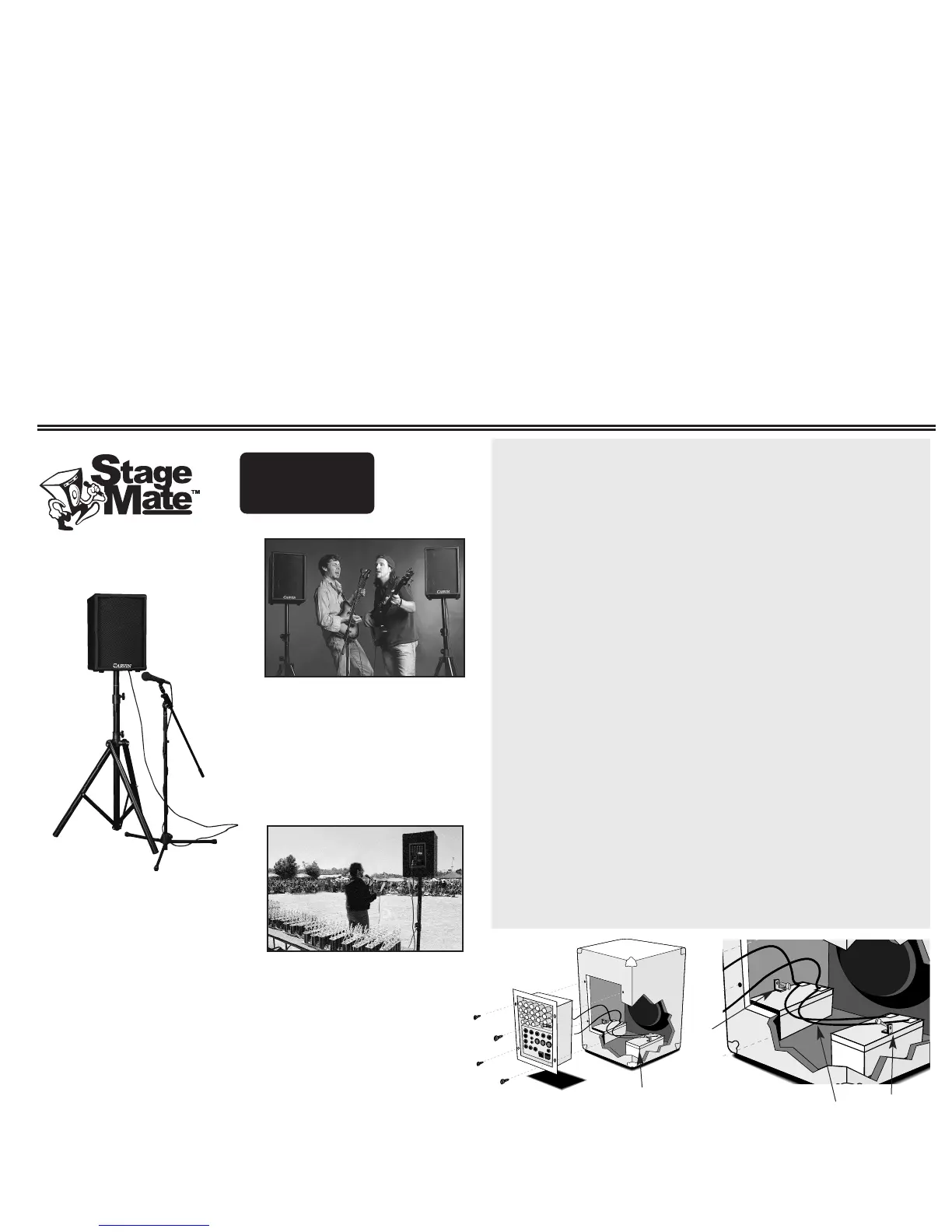

OPTIONS &
USAGE TIPS
Options
The bottom of the StageMate™ has a built in
stand insert and is ready to use with Carvin’s
SS20 Speaker Stand. The optional B400
battery kit is used as a battery replacement
or to double your battery running time. CV400
Cover is designed to protect against dust and
moisture. The C25 adapter allows you to con-
nect to your 12 volt auto’s cigarette lighter.
FS22 footswitch remotely switches the effects
loop off & on. For hands free speech or
singing, use one of Carvin’s mic stands:
MS15 or MS12 (pictured).
The Optional 810 Extension Speaker
The optional 810 matching extension
speaker can be used to increase audi-
ence coverage. For performances
where the person(s) on stage needs to
hear and monitor their sound, the
StageMate™ and 810 extension speaker
can be slightly rotated to face inward at
the performer for onstage monitoring.
SS20
SPEAKER
STAND
MS12
MIC
STAND
Outdoor Events
The battery powered StageMate™ is ideal
for outdoor events including little league
games, beach parties and camping. The
Tape/CD inputs allows for the StageMate™
to become a portable Karaoke system.
The cabinet features Carvin’s durable
Duratex™ coating. The StageMate™
should be kept free from dirt and mois-
ture to preserve proper function. Keep
the entire cabinet covered when not in
use. The optional CV400 is ideal for
protecting the StageMate™ from dust
when not in use.
ADD A SECOND BATTERY TO DOUBLE YOUR OPERATION TIME
The optional second B400 battery is recommended for longer operation at high
volume levels and when adding the 810 extension speaker.
1. To add the second battery, remove the 4 screws from the StageMates™ rear chas-
sis and carefully remove the chassis from the cabinet. FIG 1
2. Observe the empty slot on the right bottom side of the cabinet and place the battery
into position and install the L bracket that comes with the B400 kit to hold the battery
in place.
3. The original battery on the left has spare terminals for connecting the second bat-
tery. Simply connect the supplied B400 battery wires to the negative and positive ter-
minals on the original battery. Always match negative (-) to negative and positive (+)
to positive. Black is used for negative (-) and red for positive (+). Never allow a neg-
ative wire or terminal to touch a positive wire or terminal or “sparks will fly” with pos-
sible damage to the battery. If in doubt, please call our service department Mon. - Fri.
at 800-854-2235.
REPLACING THE BATTERY
After a few years of use, if you notice your operation time has been greatly reduced,
you will need to replace the battery as the cells may have weakened with age. The
B400 battery kit is shipped with connecting wires for use as a second battery. If you
are replacing your old battery, discard these wires as you will not need them.
A) To replace your battery, remove the 4 screws from the StageMate’s™ rear chassis
and carefully remove the chassis from the cabinet. FIG 1
B) Locate the battery mounted on the left side of the cabinet FIG 2 and remove the L
bracket. Simply pull the wires from the positive and negative battery terminals on the
old battery and reconnect your new battery (B400). Be sure to match negative (-) to
negative and positive (+) to positive. Black is used for negative (-) and red for positive
(+). Be sure not to short the battery terminals with a screwdriver or “sparks will fly” with
possible damage to the battery.
FIG 2 Cutaway view
