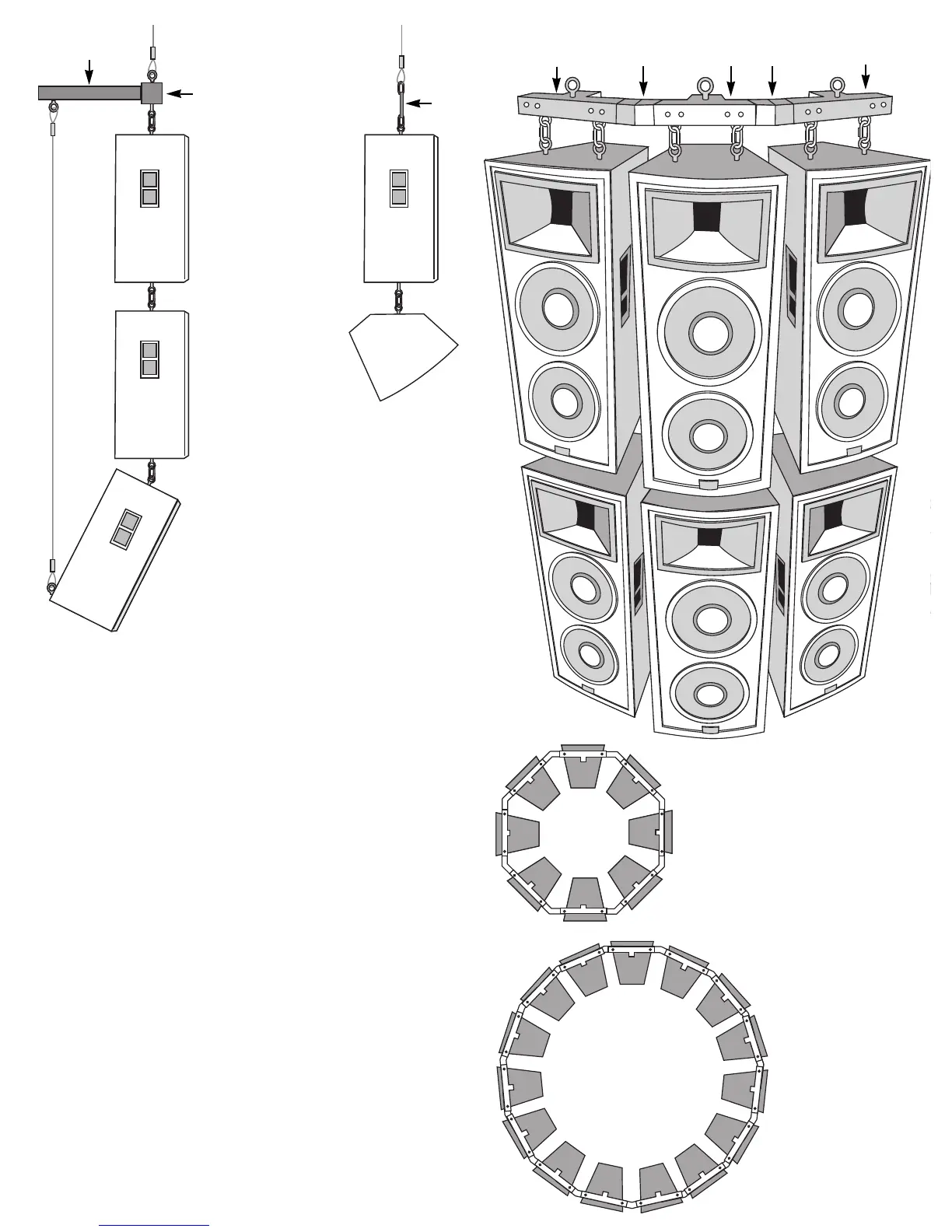

Figures 1-5 show a few different array/mounting configurations possible with the TCS
series loudspeakers.
Fig. 1 is a bottom side view of a 360° array of sixteen TCS210 cabinets with an addi-
tional two TCS210’s used for a downfill application. TCS hardware needed for this appli-
cation is as follows:
(8) TH50 truss bar kit, (8) TH56 truss bar connector 45°, (56) TH10 3/8-16 forged steel
eyebolts, (36) 3/8-16 forged steel quick links.
Fig. 2 is a top side view of a 360° array of sixteen TCS210 cabinets. TCS hardware
needed for this application is as follows: (8) TH50 truss bar kit, (8) TH56 truss bar con-
nector 45°, (48) TH10 3/8-16 forged steel eyebolts, (32) 3/8-16 forged steel quick links.
Fig. 3 is a side view of a small array of three TCS215’s with one pulled back for downfill.
TCS hardware needed for this application is as follows: (1) TH50 truss bar kit, (1) TH57
pull back bar kit, (11) TH10 3/8-16 forged steel eyebolts, (7) 3/8-16 forged steel quick
links.
Fig. 4 is a side view of a small array consisting of one TCS215 and one TCS115 sus-
pended at the 45° angle for downfill. TCS hardware deeded for this application is as fol-
lows: (1) TH58 mounting bar kit, (6) TH10 3/8-16 forged steel eyebolts, (2) TH5 3/8-16
forged steel quick links.
Fig. 5 is a 60° array of TCS215’s constructed at a 24° angle. TCS hardware needed for
this application is as follows: (3) TH50 truss bar kit, (2) TH56 truss bar connector 24°,
(18) TH10 3/8-16 forged steel eyebolts, (12) 3/8-16 forged steel quick links.
Fig 5
Fig 3
TH50
Fig 4
TH58
TH57
TH50
TH55
TH55
TH50 TH50
Top view of 360° array
using (8) TH50 and (8)
TH56 kits. Total of 8
loudspeakers needed.
Top view of 360° array
using (15) TH50 and
(15) TH55 kits. Total of
15 loudspeakers
needed.
