CAS Scale ND 300 - ND-300 H Installation

9
ND-300H

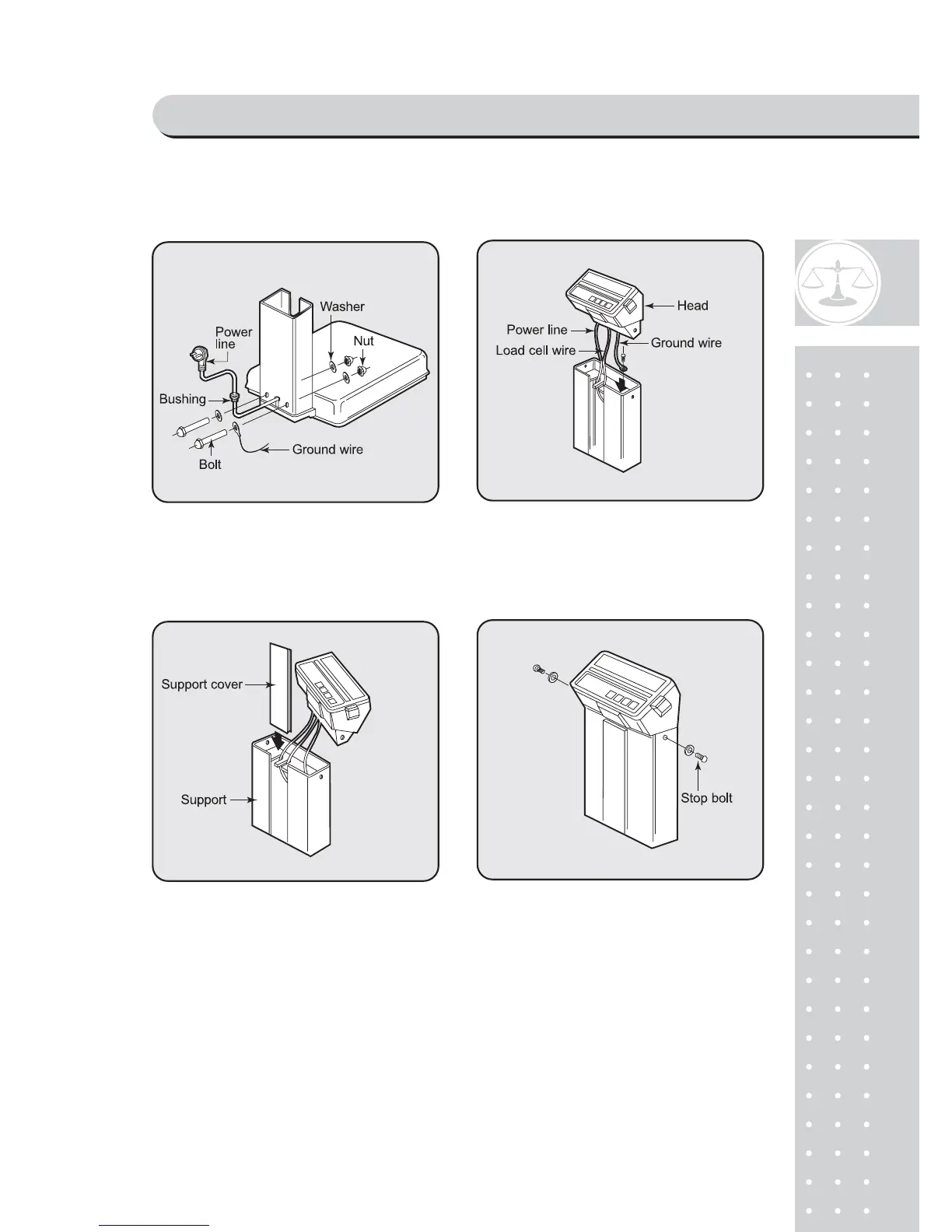

1. Insert the power line into the support.
Fasten with bolts and nuts.
2. Fix a ground wire with bolt then arrange the
power line and loadcell line.
3. Attach the support cover to the support. 4. Attach the head to the support then fasten with
stop bolt.
INSTALLATIONS
