ND-300

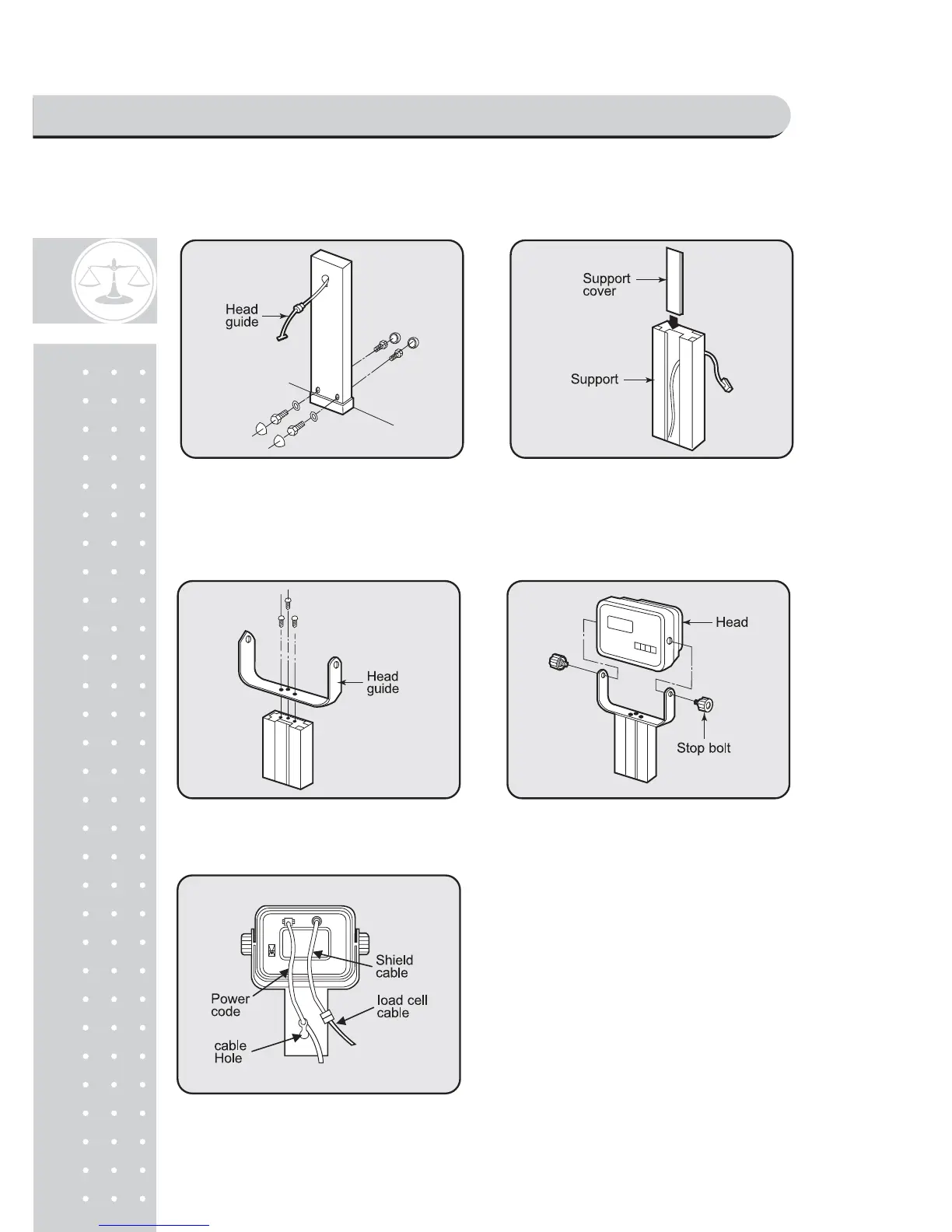

1. Fix with bolts and nuts after inserting the load
cell cable to support pole. and then please fix
the ground wire with a bolt and fix the bolt hat
up it.
2. Please insert support cover into the support
pole.
3. Please fix the head guide with bolt. 4. Please connect head part to Head guide
and fix it with Stop bolt.
5. Please insert to support cable hole after
connecting the load cell cable and shield
cab Stick the power code to the back of
the Head part.
INSTALLATIONS
