Casablanca Expression - Start Capacitor Replacement; Capacitor Block Identification; Step 1: Locate Start Capacitor

Casablanca Fan Co. - Factory Service Department - Technical Library
VII - 7.40

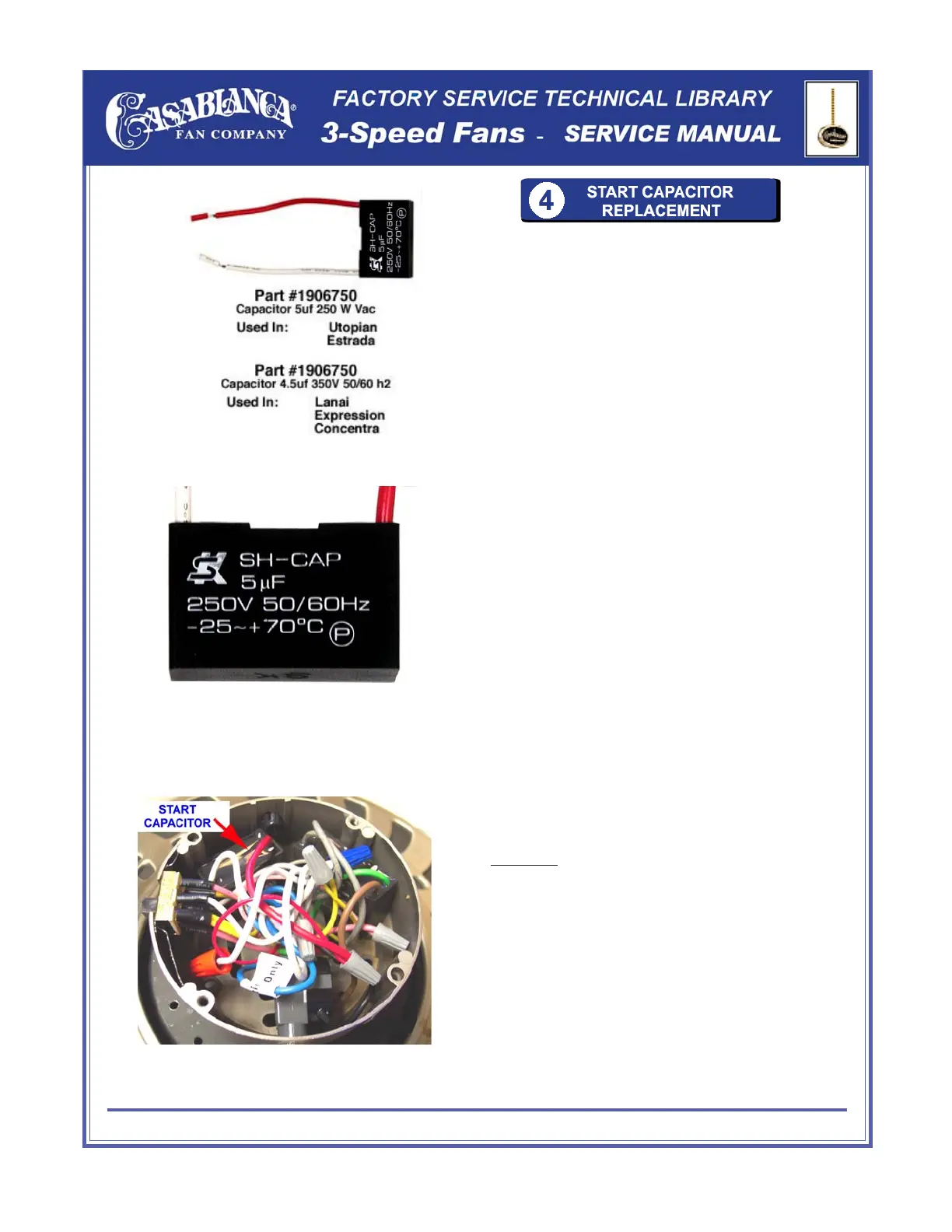

The Start Capacitor Black Box has one
capacitors built into a block as shown in (figures
#1A and 1B). Match the old box with the new;
the capacitor values must be a perfect match.
If not, this will cause damage to the motor by
over heating.
(Figure #1A)
(Figure #1B)
(Figure #2)
Start Capacitor Replacement - CONTINUED
First locate the start capacitor block as shown
in (figure #2).
Step #1
