Casablanca Expression - Run Capacitor Replacement; Capacitor Identification and Leads

Casablanca Fan Co. - Factory Service Department - Technical Library
VII - 7.37

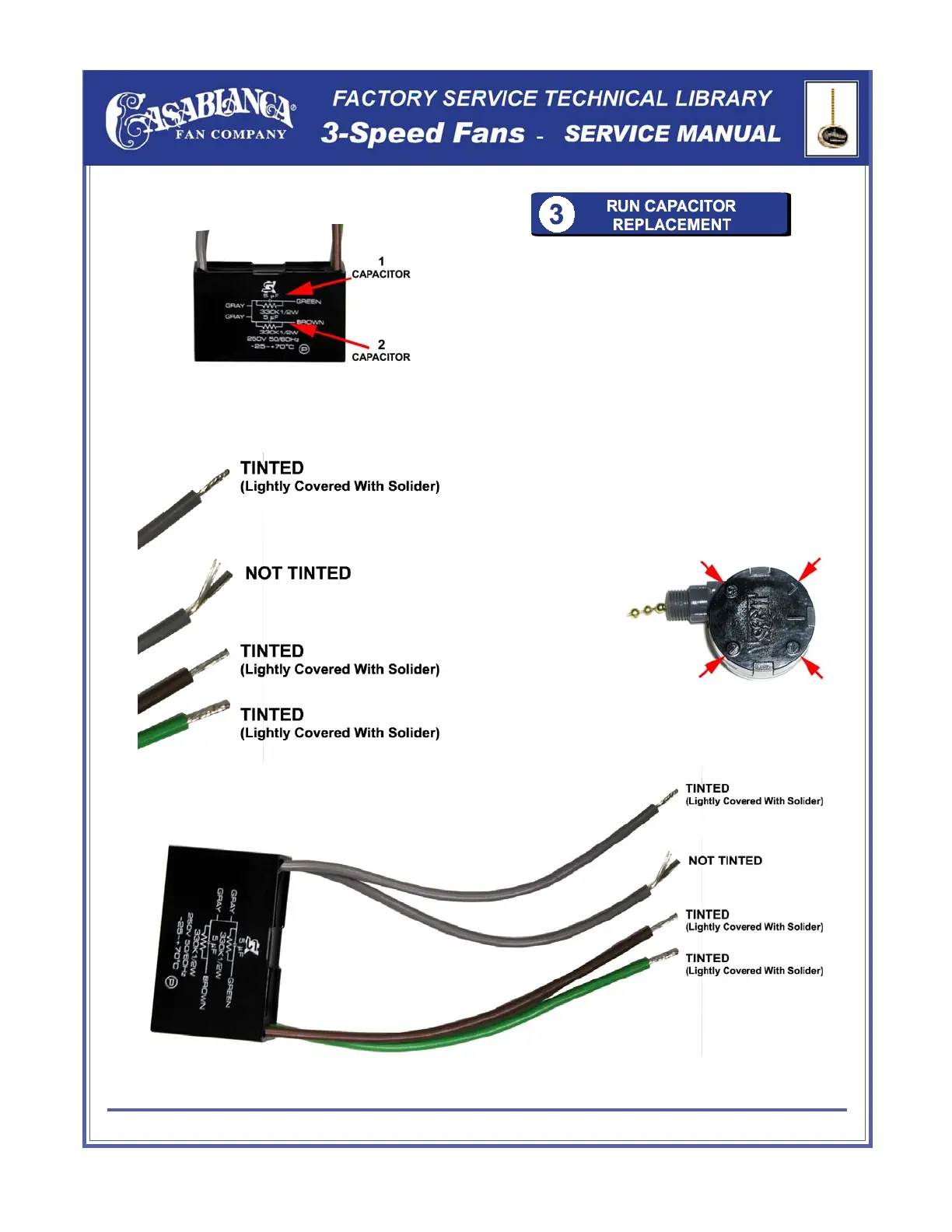

(Figure #1)
The Run Capacitor Black Box has two capacitors
built into one block as shown in (figure #1). Match the
old block with the new, the capacitor values must be a
perfect match. If not, the first and second speeds will
not be the same as before.
Once you have found your replacement block, you will
need to look at the leads. Some of the wires leads are
tinted and some are not as shown in (figure #2A and
2B). The wires that insert into the pull chain switch as
shown in (figure #3) must be tinted for easy insertion. If
they are not they will need to be tinted, only tint the
wires that are being connected to the switch.
(Figure #2A)
(Figure #2B)
(Figure #3)
Run Capacitor Replacement - CONTINUED
