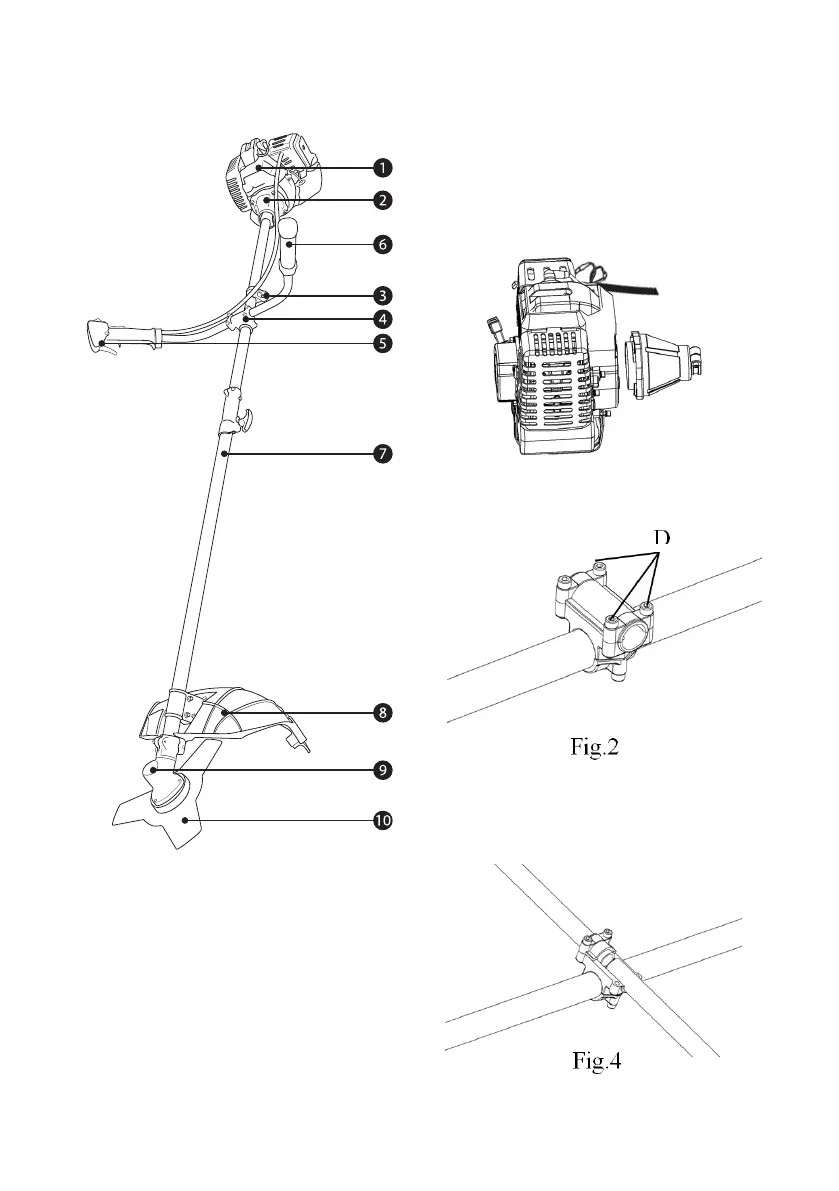

3. COMPONENTS:

1. Engine

2. Clutch Assembly

3. Shoulder Tach

4. Throttle Lever Assembly

5. Handle Assembly

6. Operation Handle

7. Drive Shaft Assembly

8. Blade Guard

9. Gear Case Assembly

10. Blade

4. USE AND CARE:

4.1. Assembly:

Engine Assembly:

Remove the four bolts installed on the engine. The four

bolt holes of the clutch case should screwed to the

threaded holes at the base of the engine.
