Engine-Engineandcrankcase

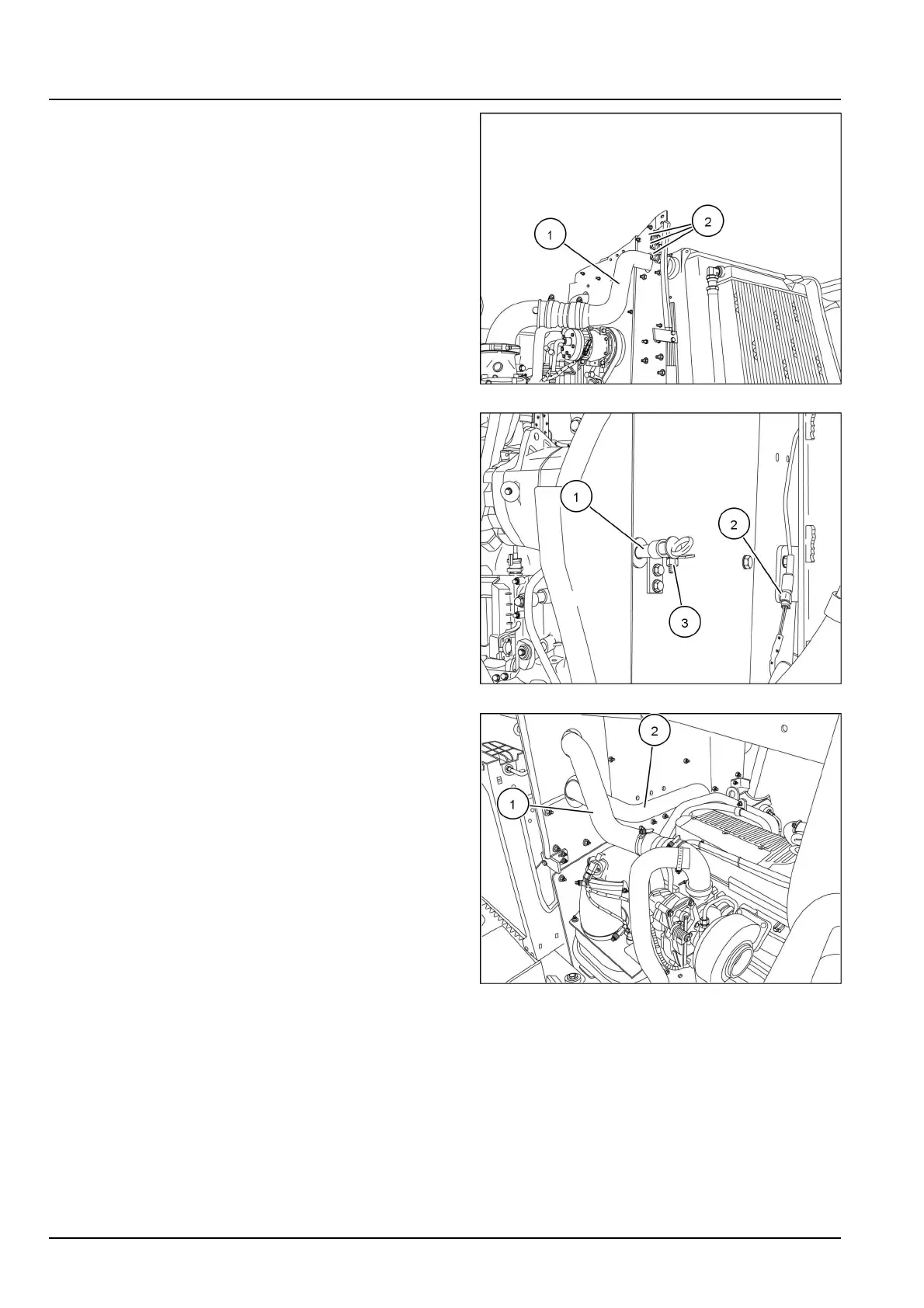

18.Removetheafteraircoolertube(1).
19.Removethebulkheads(2).
RCPH11WHL014AAR9
20.RemovetheoildipstickP-clamp(3).Pulltheoil
dipsticktube(1)throughthewall.
21.Labelanddisconnectthehoodliftstrutelectricalcon-
nector(2).
RCPH11WHL015AAR10
22.Removethebeforeaircoolertube(1).
23.Removetheupperradiatortube(2).
RCPH11WHL016AAR11
4739246119/06/2012
10.001/8
