Engine-Engineandcrankcase

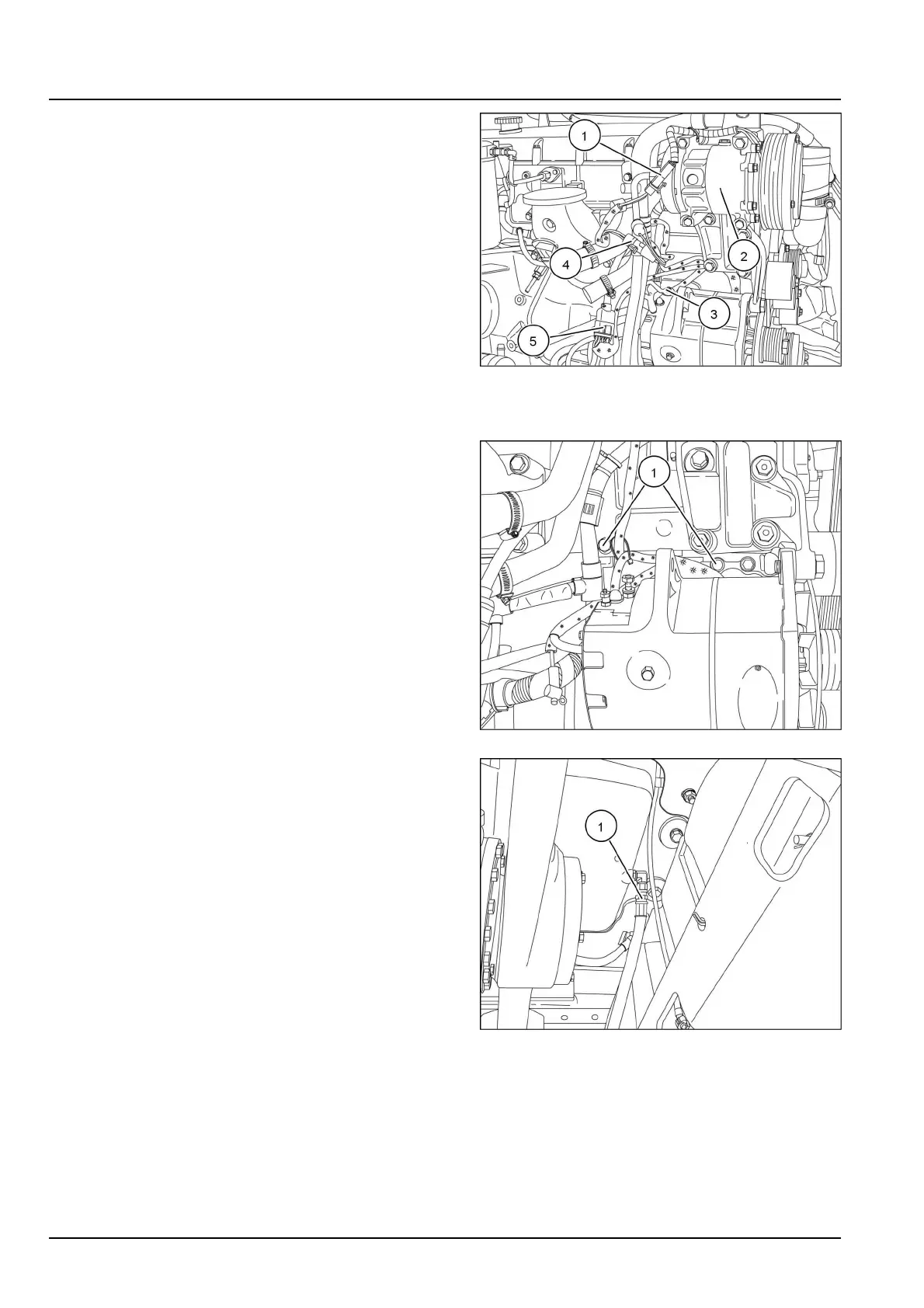

45.LabelanddisconnecttheA/Ccompressorelectrical
connector(1).
46.LabelanddisconnecttheA/Cpressureswitchelec-
tricalconnector(4).
47.Removethealternatorpowerwire.(3).
48.Labelanddisconnectthebulkelectricalconnector
(5).
RCPH11WHL045AAR27
49.RemovetheA/Ccompressor(2).PositiontheA/C
compressor(2)awayfromtheengine.
50.RemovethewireharnessP-clamps(1).
RCPH11WHL046AAR28
51.Removetheengineoildraintube(1).
RCPH11WHL047AAR29
4739246119/06/2012
10.001/14
