Case 1021F - Page 40

Engine-Engineandcrankcase
Engine-Install
1021FINT ,1121FINT

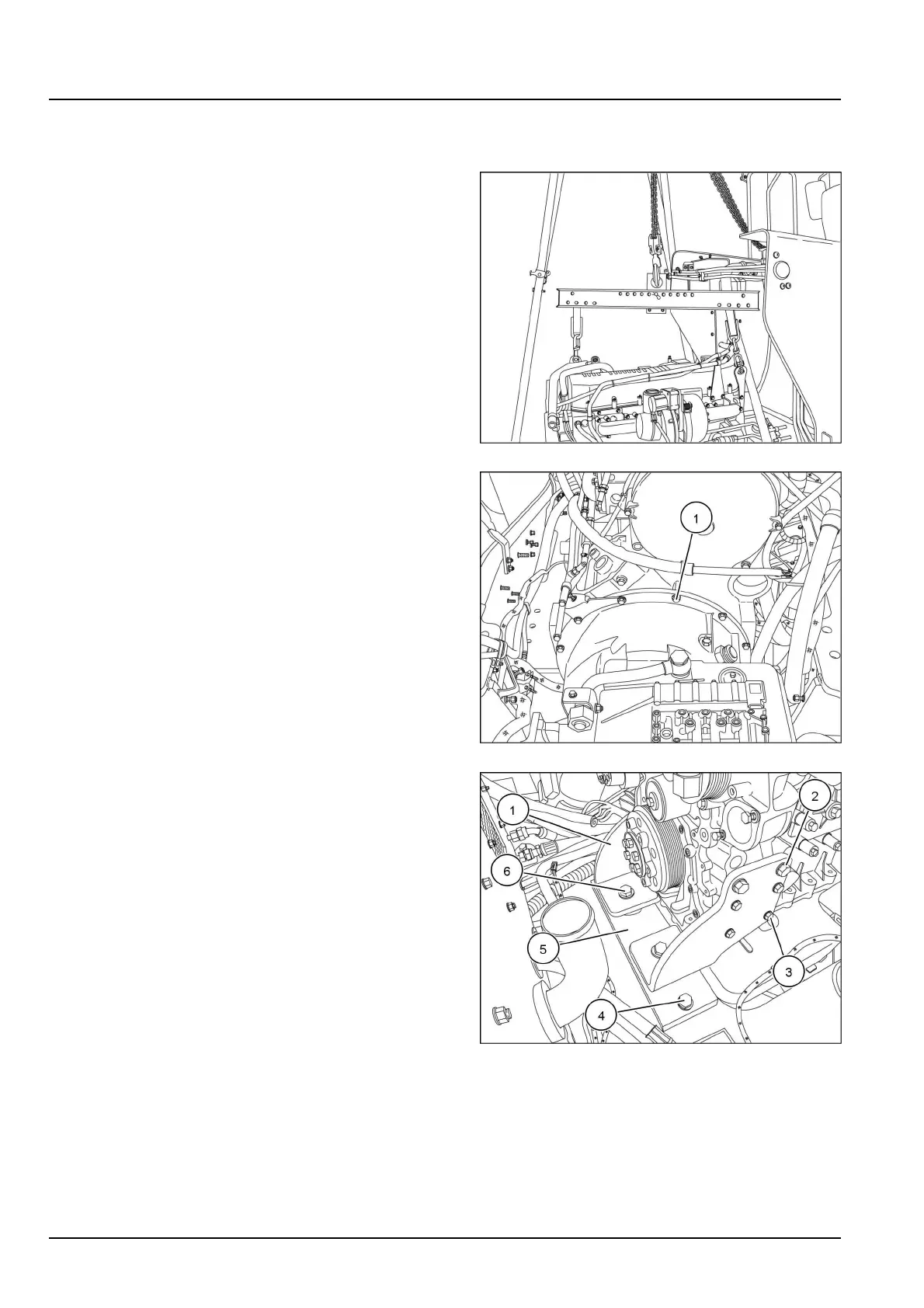

1.Carefullylowertheengineintothechassis.
RCPH11WHL048AAR1
2.Installthebellhousingbolts(1).Tightenthebell
housingbolts(1)toatorqueof54-60N·m(40-
44lbft).
RCPH11WHL036AAR2
3.Installtheenginemountplate(5)andtheengine
mountbrackets(1),butdonottightentheboltsto
atorquevalue.
4.Tightentheenginebracketupperbolts(2)toatorque
of171-231N·m(126-170lbft).Tightentheengine
bracketlowerbolts(3)toatorqueof69-80N·m(51
-59lbft).Tightentheenginemountplatebolts(4)to
atorqueof386-434N·m(285-320lbft).Tighten
theenginebracket-to-enginemountplatebolts(6)to
atorqueof397-447N·m(293-330lbft).
RCPH11WHL052AAR3
